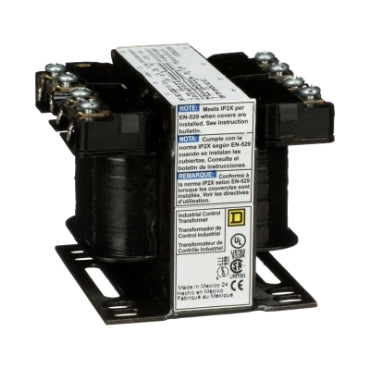

9070T50D31 - Square D Type T Industrial Control Transformer 50VA 1-Phase 240x480V Primary

9070T50D31

9070T50D31 is a Square D Class 9070 Type T industrial control transformer rated at 50 VA, single phase, designed for voltage step-down applications in control circuits.

This transformer features multiple voltage configurations: 240/480 VAC primary to 120/240 VAC secondary, or 230/460 VAC primary to 115/230 VAC secondary, or 220/440 VAC primary to 110/220 VAC secondary. The unit is constructed with copper windings and low impedance design for excellent voltage regulation and accommodation of high inrush currents from relays, starters, solenoids, and contactors. Dimensions are 2.58 inches height by 3 inches width by 3.09 inches depth. The transformer operates at 50/60 Hz and includes a 55 degree Celsius temperature rise rating.

• 50 VA power rating
• Single phase
• Multiple primary voltage options: 240V, 230V, or 220V
• Multiple secondary voltage options: 120V, 115V, or 110V
• Type T industrial open style
• Screw clamp terminals
• Copper windings with low impedance
• UL, CUL, CSA, CE, and NOM certified
• 50/60 Hz rated
• Customer installed accessories compatible (Finger-Safe covers, fuse blocks)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T50D31
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 1
• KVA Rating : 0.05
• Primary Voltage : 240/480
• Secondary Voltage : 120/240

Product Data

• UPC : 785901845560
• GTIN : 00785901845560
• Country of Origin : Mexico
• Dimensions : 2.58 in (65.53 mm) x 3 in (76.2 mm) x 3.09 in (78.49 mm) (Height x Width x Depth)
• Weight : 2.58
• Certification : CSA file LR37055 guide 184-N-90; UL listed file E61239
