9070T50D3 - Square D 50 VA 208 VAC to 120 VAC 1-Phase Control Transformer Type T Industrial Open Style Panel Mount

9070T50D3

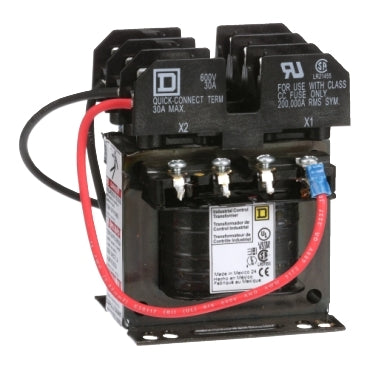

9070T50D3 is a Square D Type T Industrial Open Style control transformer with a 50 VA power rating designed for panel mounting.

This transformer features a 208 VAC primary voltage and 120 VAC secondary voltage, operating at 50/60 Hz frequency with single-phase power. It has an open enclosure and screw clamp connection type. The unit is insulated for 105 degrees Celsius and rated for a maximum temperature of 55 degrees Celsius. Its compact dimensions are approximately 2.58 inches high, 3 inches wide, and 3.09 inches deep. Manufactured by Schneider Electric, it is suitable for industrial control applications requiring reliable voltage transformation.

• Power Rating: 50 VA
• Primary Voltage: 208 VAC
• Secondary Voltage: 120 VAC
• Phase: 1
• Frequency: 50/60 Hz
• Insulation Temperature Rating: 105°C
• Maximum Operating Temperature: 55°C
• Enclosure Type: Open
• Connection Type: Screw Clamp
• Mounting Type: Panel
• Dimensions (HxWxD): 2.58 x 3 x 3.09 inches
• Type: Type T Industrial Open Style

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T50D3
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 1
• KVA Rating : 0.05
• Primary Voltage : 208
• Secondary Voltage : 120

Product Data

• UPC : 785901905523
• GTIN : 00785901905523
• Country of Origin : Mexico
• Dimensions : 2.58 in (65.53 mm) x 3 in (76.2 mm) x 3.09 in (78.49 mm) (Height x Width x Depth)
• Weight : 2.95
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
