Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Transformers
Description
9070T50D20

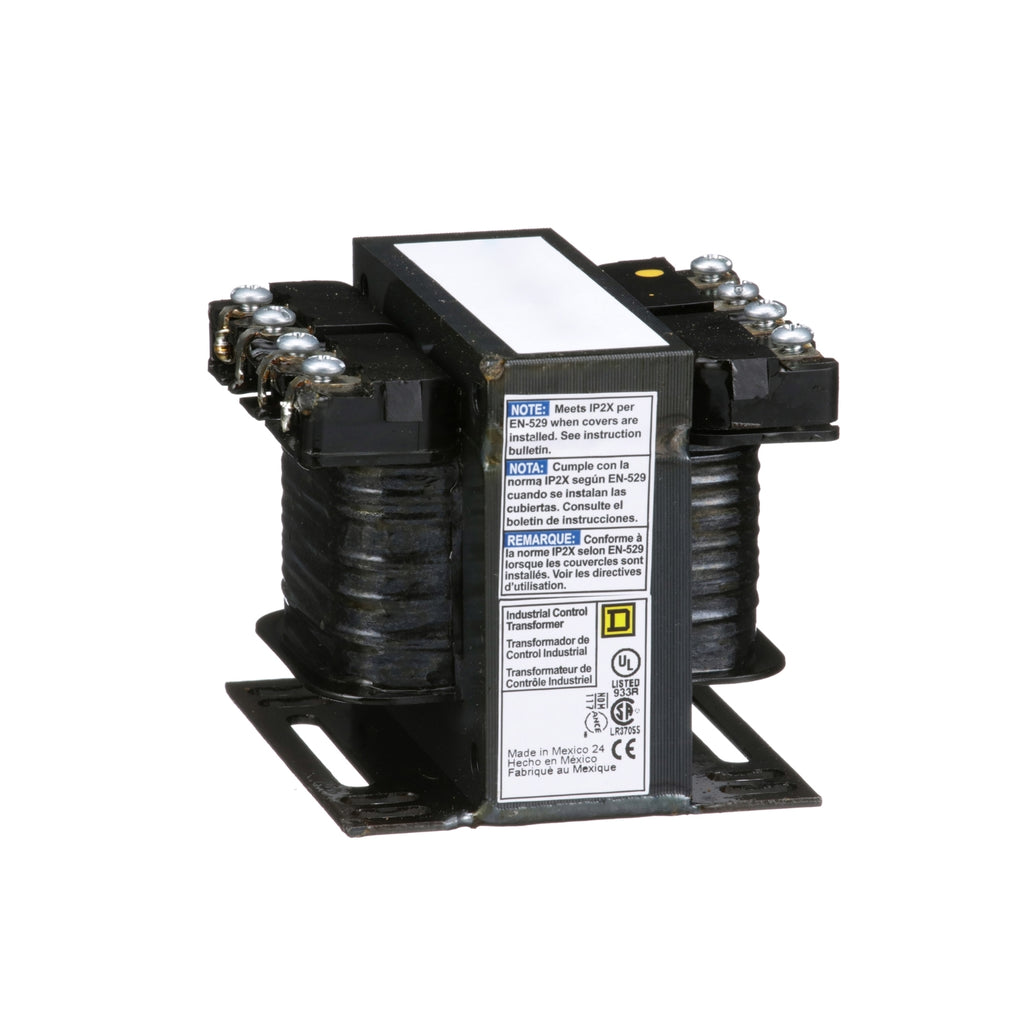

9070T50D20 is a single-phase industrial control transformer designed for reliable voltage conversion in motor control and industrial applications. This transformer features multiple primary voltage options and a stable 115V secondary output, making it ideal for use with relays, contactors, and other control devices. The 9070T50D20 offers low impedance windings for excellent voltage regulation and can handle high inrush currents. It is built with an open core design and epoxy resin varnish finish for durability in demanding environments. The transformer is panel-mountable and suitable for a wide range of industrial control panels.
- Part Number: 9070T50D20
- Manufacturer: Square D
- VA Rating: 50 VA
- Phase: 1
- Primary Voltage: 208/230/460 VAC
- Secondary Voltage: 115 VAC
- Frequency: 50/60 Hz
- Mounting Type: Panel
- Enclosure Style: Open
- Enclosure Finish: Epoxy Resin Varnish
- Temperature Rise: 55°C
- Approvals: UL, CUL, CSA, CE, NOM
Specifications
- Part Number: 9070T50D20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Transformers
- Section : Control
- Family : 9070
Product Data
- UPC : 785901904953
- GTIN : 00785901904953
- Country of Origin : Mexico
- Dimensions : 2.89 in (73.41 mm) x 3.38 in (85.85 mm) x 3.34 in (84.84 mm) (Height x Width x Depth)
- Weight : 3.829
- Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
