9070T300D1 - Square D 300VA Industrial Control Transformer 240/480V to 120V Single Phase Open Type

9070T300D1

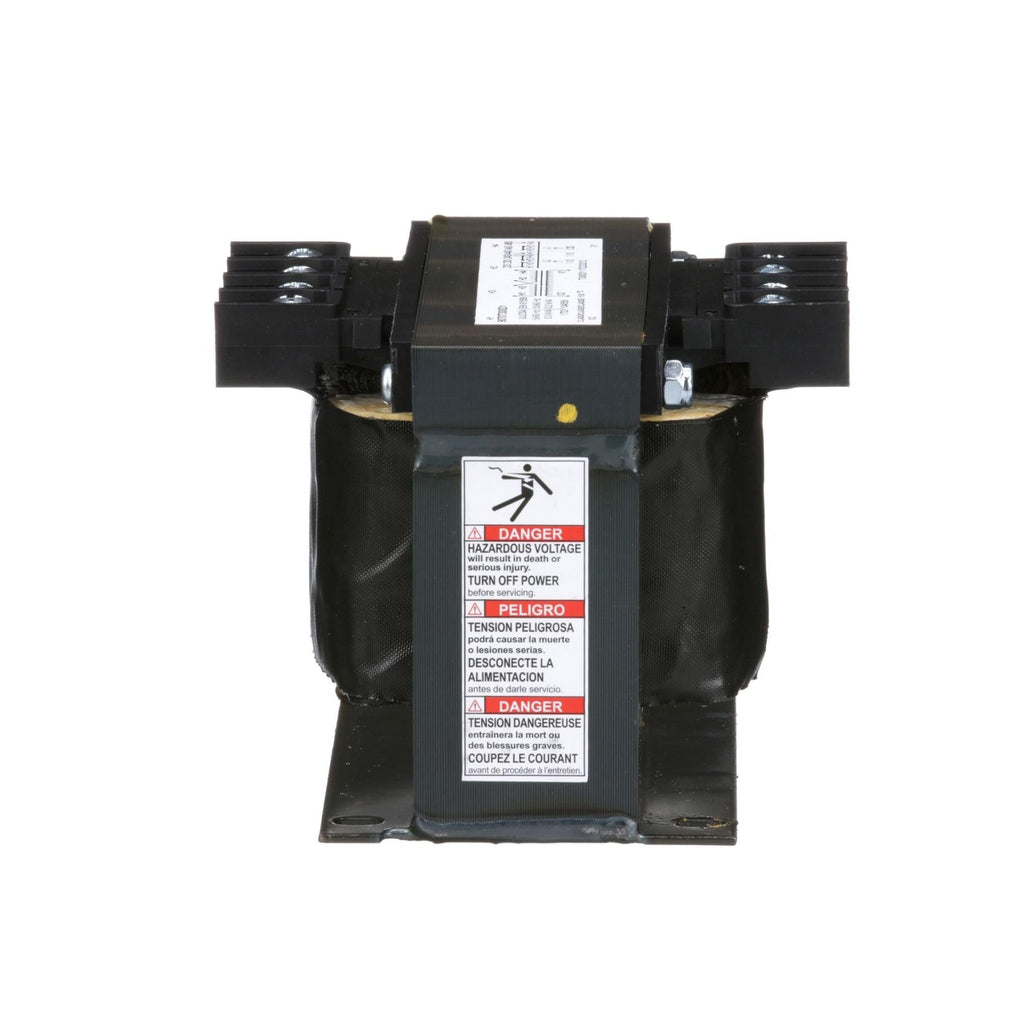

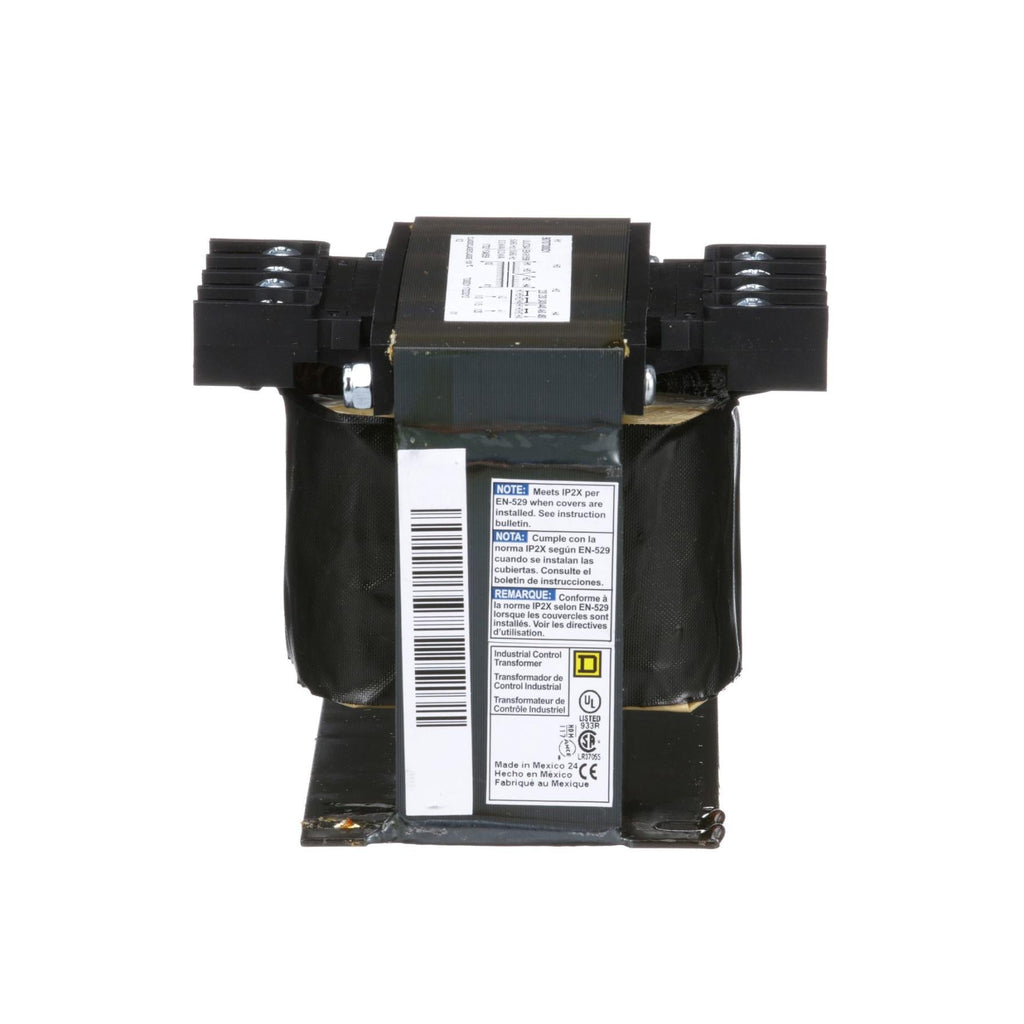

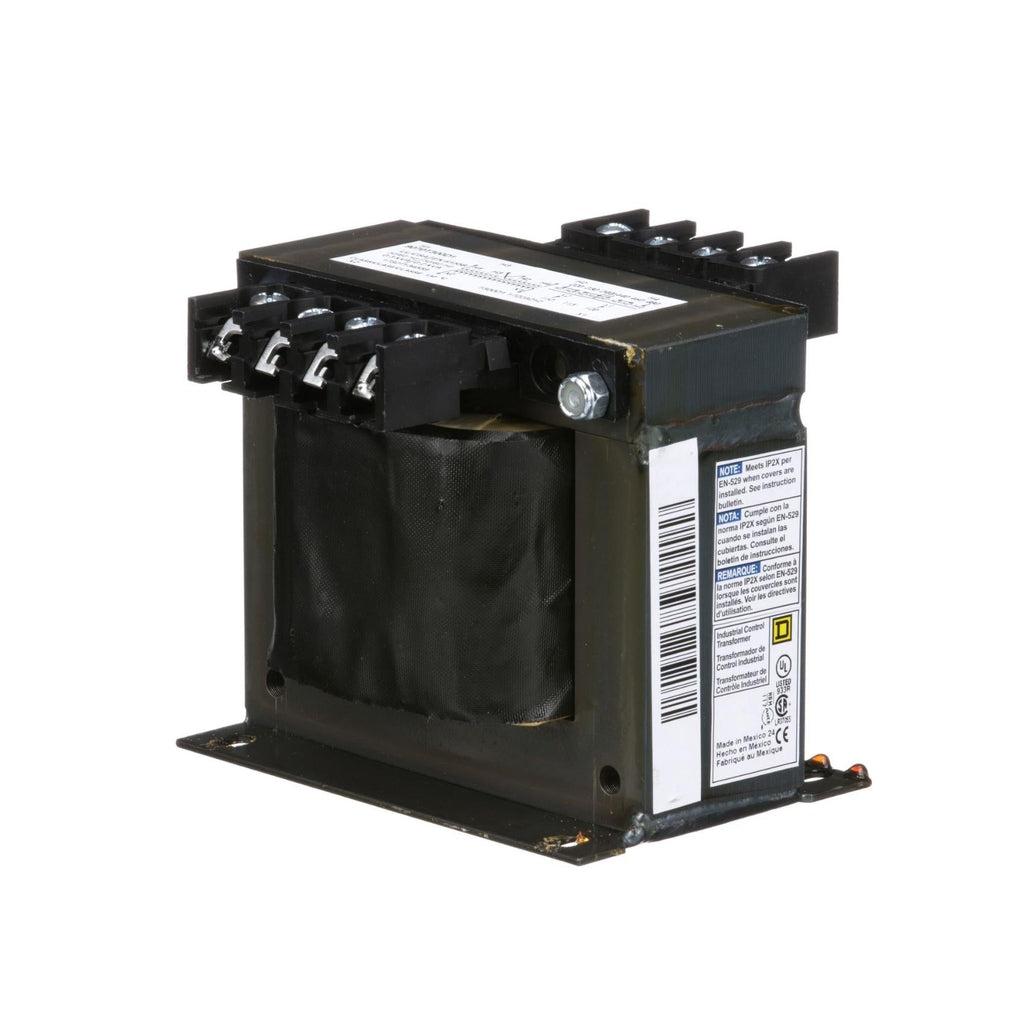

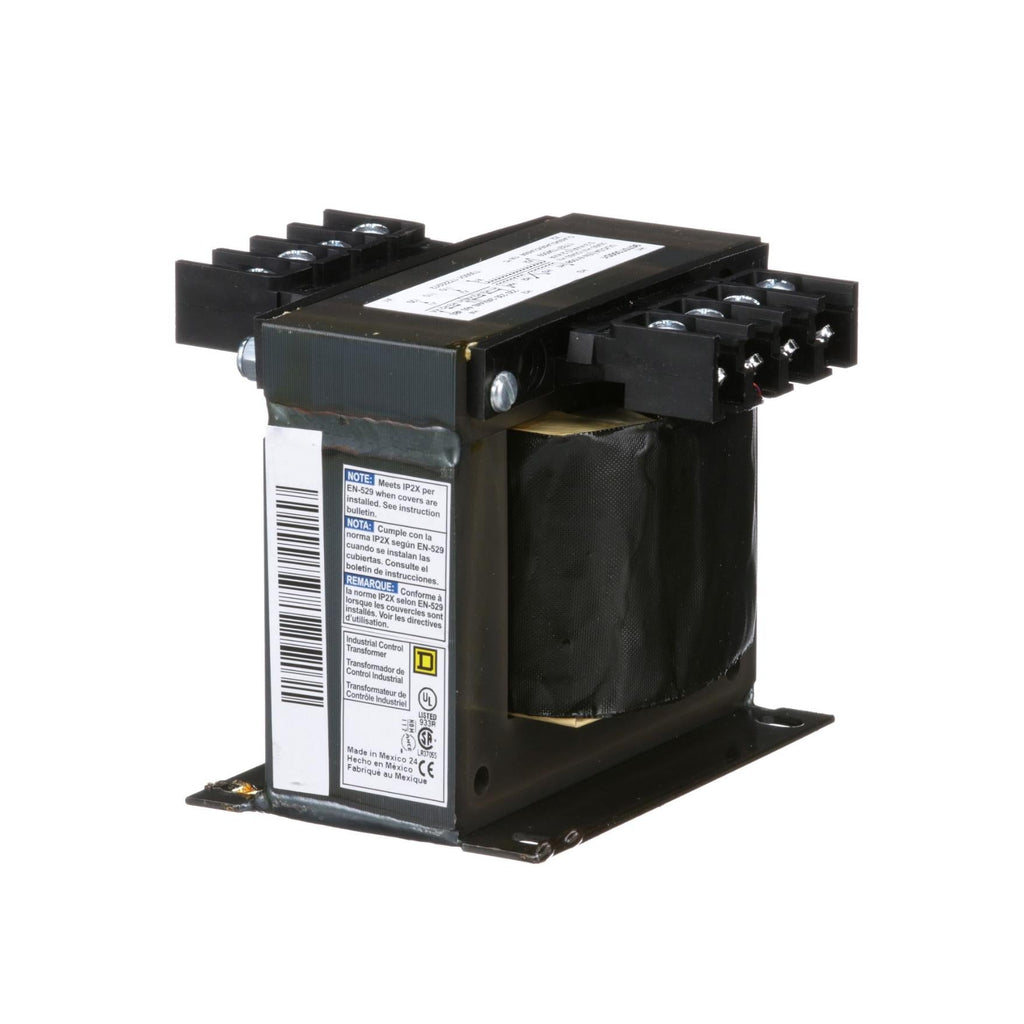

9070T300D1 is a Square D industrial control transformer designed for reliable voltage conversion in control circuits.This transformer features a 300 VA power rating with a primary voltage of 240/480V and a secondary voltage of 120V. It is a single-phase, open-type enclosure unit with copper windings and screw clamp terminals for secure electrical connections. The compact design includes a slot mounting type and complies with UL, CSA, CE, and NOM certifications, ensuring safety and performance standards. It has an insulation temperature rating of 130°C and a temperature rise of 80°C.

Key Specifications
• Power Rating: 300 VA
• Primary Voltage: 240/480V (also compatible with 220X/440V, 230X/460V)
• Secondary Voltage: 120V
• Phase: Single-phase
• Enclosure Type: Open type
• Mounting Type: Slot mounting
• Electrical Connection: Screw clamp terminals
• Winding Material: Copper
• Temperature Rise: 80°C
• Insulation Temperature: 130°C
• Certifications: UL, CSA, CE, NOM
• Dimensions (HxWxD): 3.84 x 4.5 x 4.74 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T300D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 1
• KVA Rating : 0.3
• Primary Voltage : 240/480
• Secondary Voltage : 120

Product Data

• UPC : 785901904687
• GTIN : 00785901904687
• Country of Origin : Mexico
• Dimensions : 3.84 in (97.54 mm) x 4.5 in (114.3 mm) x 4.74 in (120.40 mm) (Height x Width x Depth)
• Weight : 9.381
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
