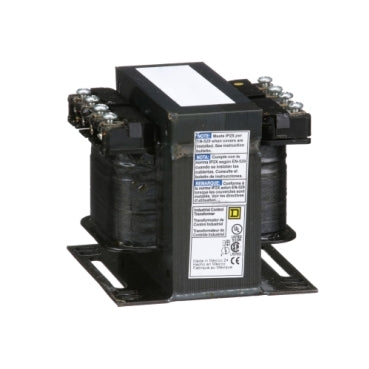

9070T200D3 - Square D 200VA 208V to 120V Control Transformer Type T Open Frame

9070T200D3

9070T200D3 is a Square D Type T control transformer designed for industrial control applications with a 200 VA output rating.

This transformer features a primary voltage of 208 VAC and a secondary voltage of 120 VAC, operating at 50/60 Hz frequency. It has an open frame enclosure with epoxy resin varnish finish, compact dimensions of approximately 3.2" H x 3.75" W x 3.59" D, and low impedance windings for reliable performance in control circuits.

• Manufacturer: Square D
• Type: T Control Transformer
• Power Rating: 200 VA
• Primary Voltage: 208 VAC
• Secondary Voltage: 120 VAC
• Frequency: 50/60 Hz
• Phase: Single-phase
• Enclosure Style: Open frame
• Enclosure Finish: Epoxy resin varnish
• Dimensions (HxWxD): 3.2" x 3.75" x 3.59"
• Low impedance windings
• Certifications: UL, CUL, CSA, CE, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T200D3
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• KVA Rating : 0.2
• Primary Voltage : 208
• Secondary Voltage : 120

Product Data

• UPC : 785901845454
• GTIN : 00785901845454
• Country of Origin : Mexico
• Dimensions : 3.2 in (81.3 mm) x 3.75 in (95.25 mm) x 3.59 in (91.19 mm) (Height x Width x Depth)
• Weight : 5.911
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
