9070T200D1 - Square D 200VA Control Transformer, 240/480V Primary, 120V Secondary, 1 Phase, Panel Mount, 9070 Series, CSA/cUL/UL/CE/TUV Certified

9070T200D1

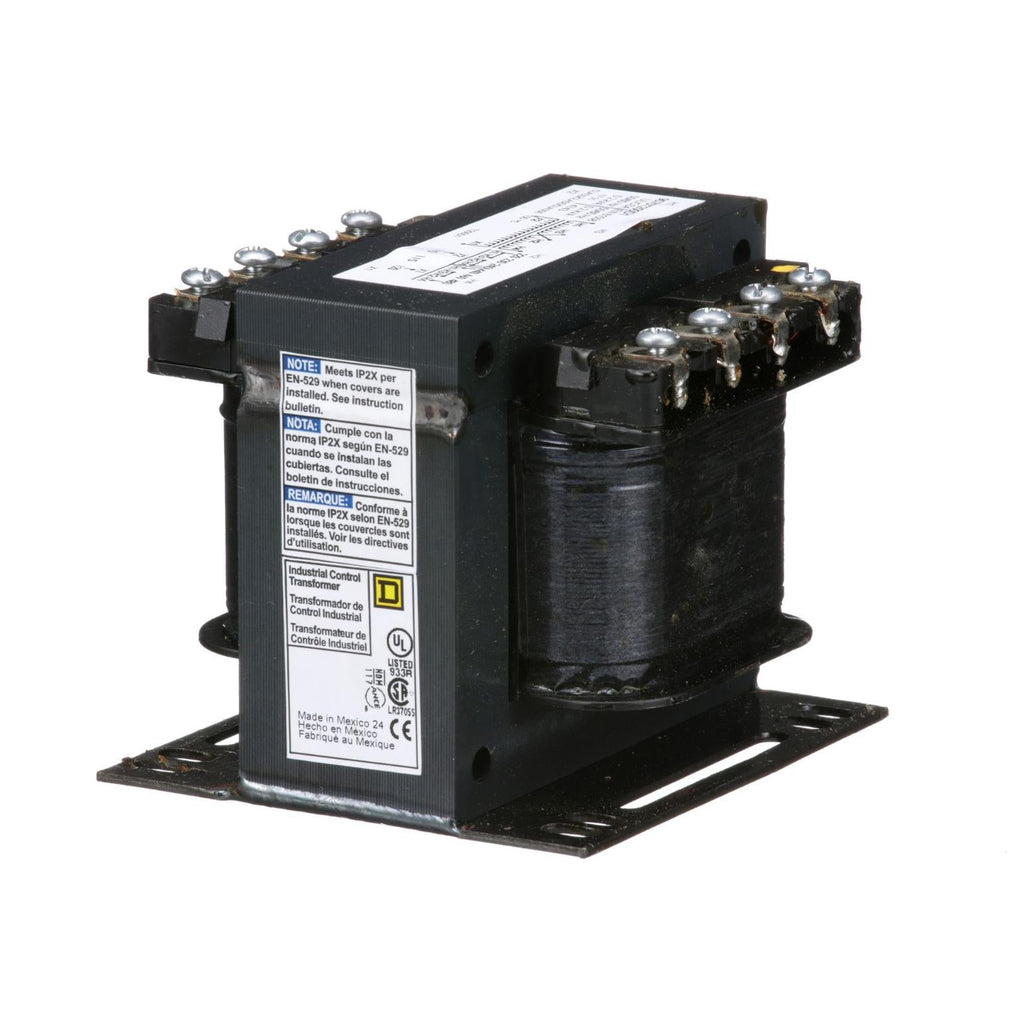

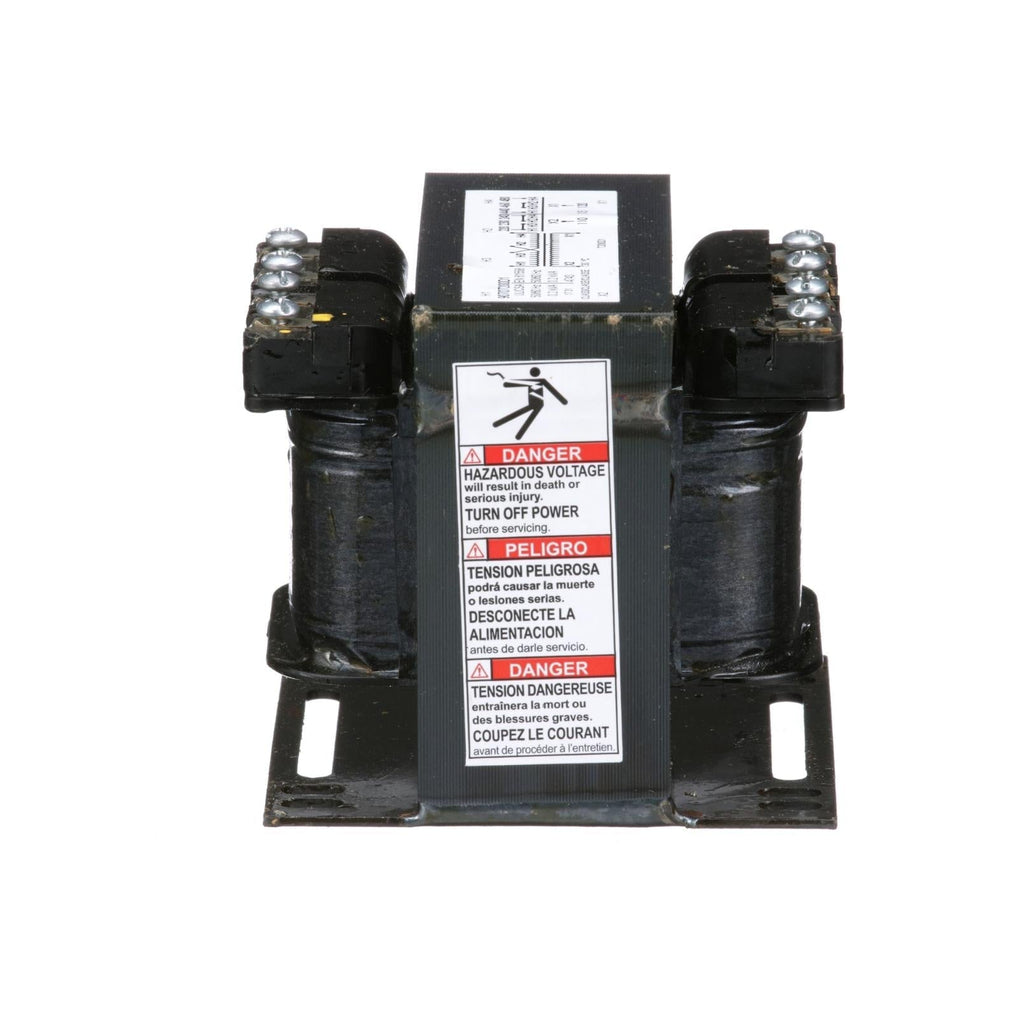

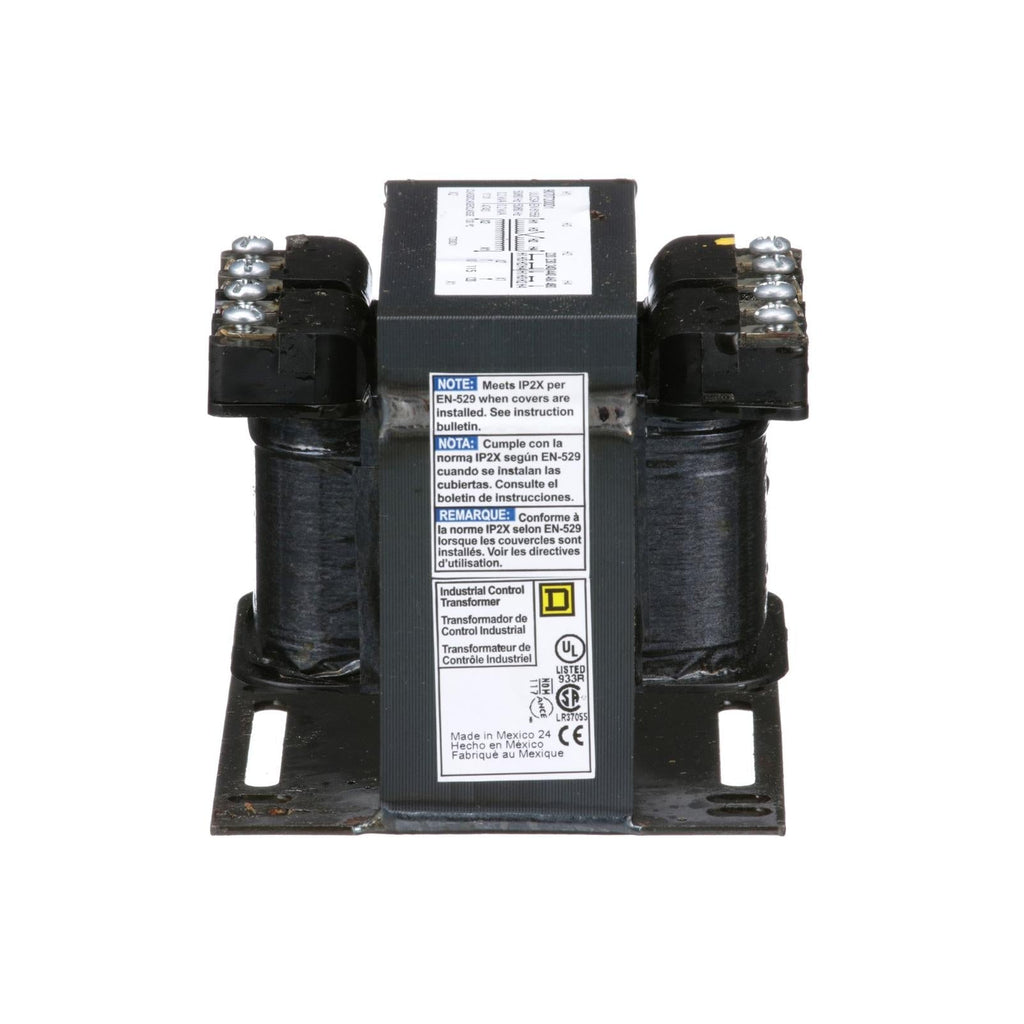

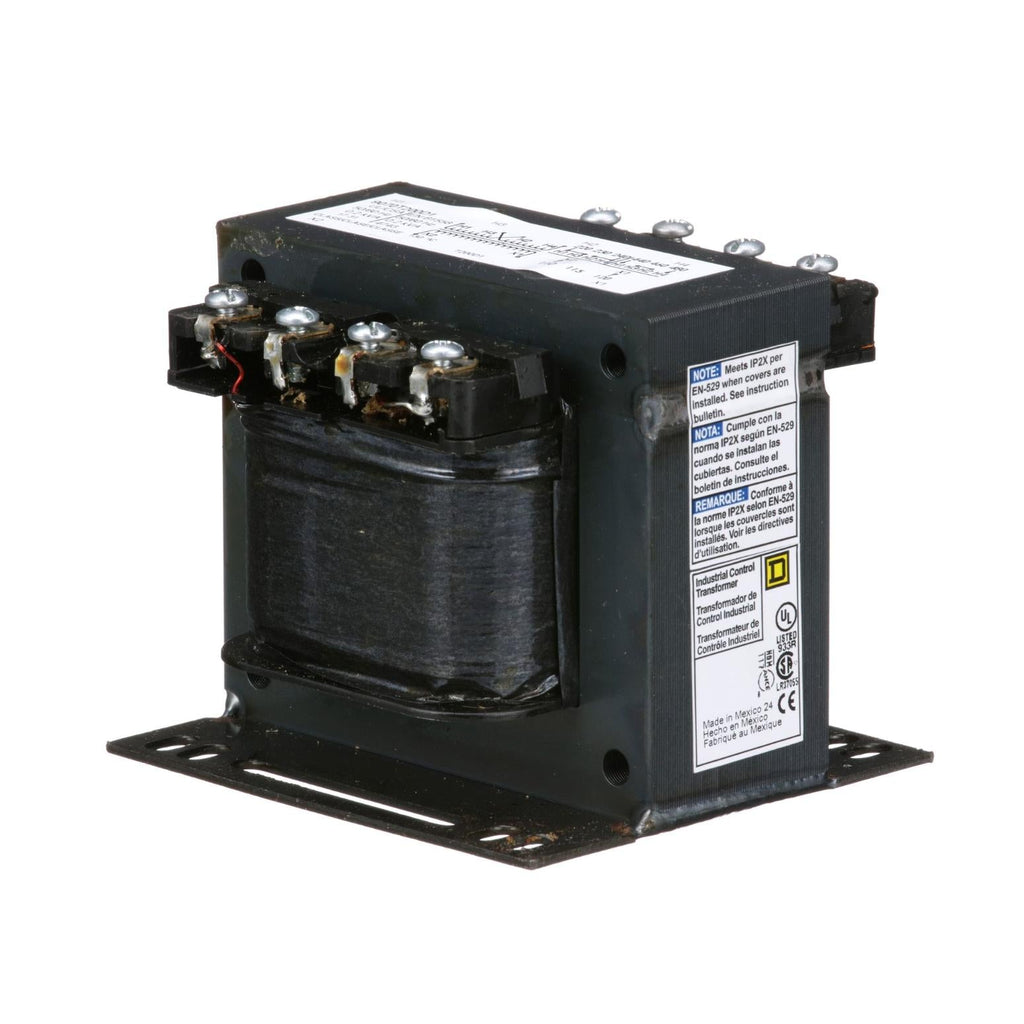

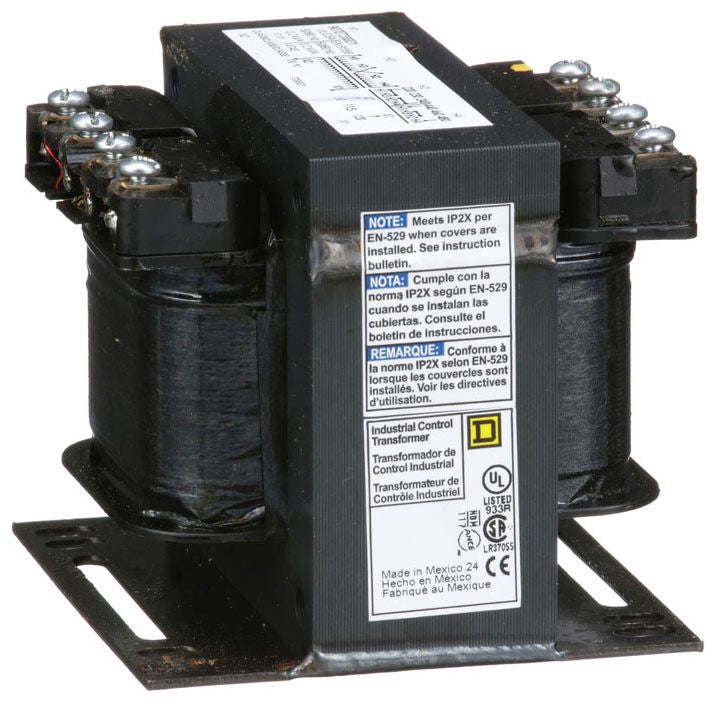

9070T200D1 is a Square D industrial control transformer designed for reliable machine tool and control circuit applications.

This single-phase transformer delivers 200 VA output, with primary voltage options of 220/230/240/440/460/480V AC and a secondary output of 110/115/120V AC. It features a compact, open-style enclosure, panel mounting, and screw clamp terminals for secure connections. The 9070T200D1 is certified to CSA, cUL, UL, CE, and TUV standards, ensuring compliance with international electrical requirements.

Key Specifications
• Part Number: 9070T200D1
• Manufacturer: Square D (Schneider Electric)
• Category: Motor Control
• VA Rating: 200 VA
• Primary Voltage: 220/230/240/440/460/480V AC
• Secondary Voltage: 110/115/120V AC
• Phase: 1
• Mounting Type: Panel
• Enclosure: Open
• Terminal Connection: Screw Clamp
• Series/Frame: 9070
• Frequency: 50/60 Hz
• Temperature Rating: 80°C (176°F)
• Insulation Class: 130°C
• Certifications: CSA, cUL, UL, CE, TUV, RoHS, REACh
• Dimensions: 3.75 in W x 3.59 in D x 3.2 in H
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T200D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Transformers
• Section : Control
• Family : 9070
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901904663
• GTIN : 785901904663
• Country of Origin : Mexico
• Dimensions : 3.75 in W x 3.59 in D x 3.2 in H
• Weight : 5.5 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
