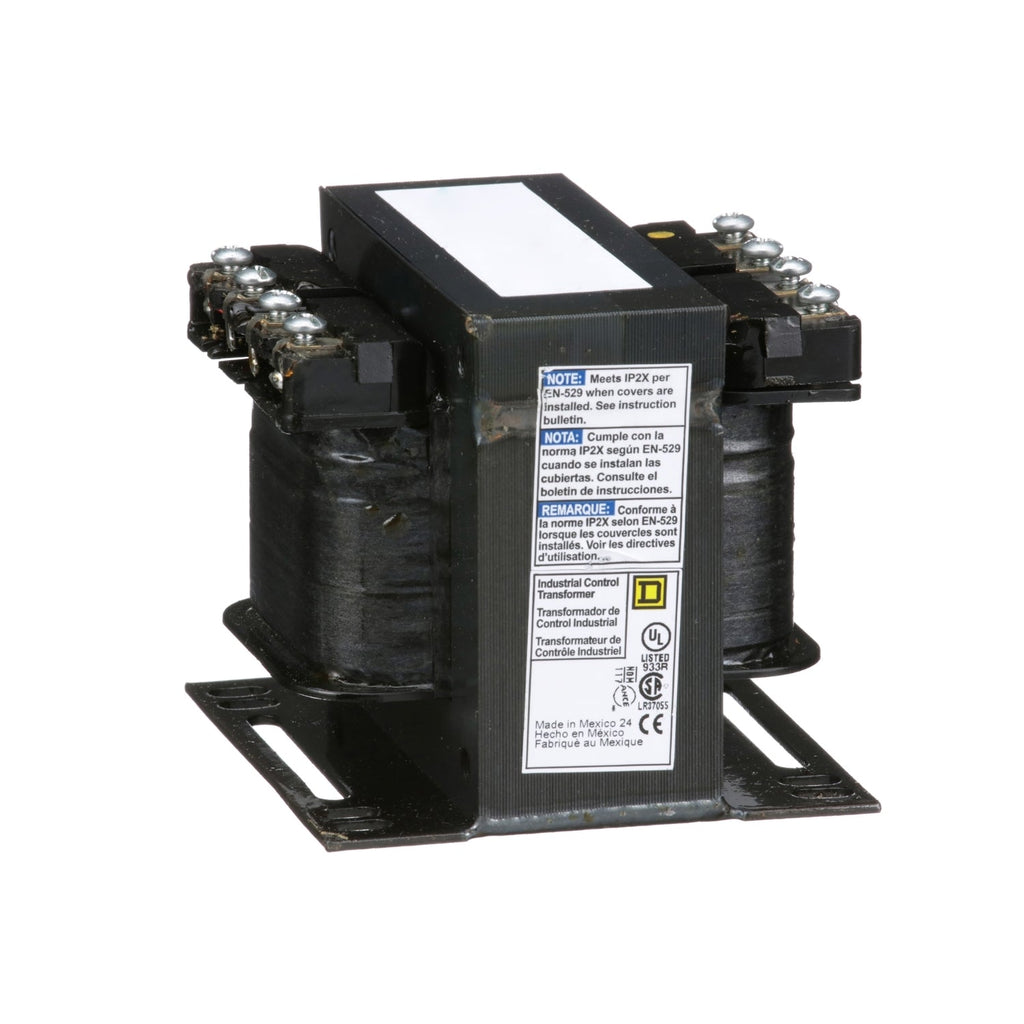

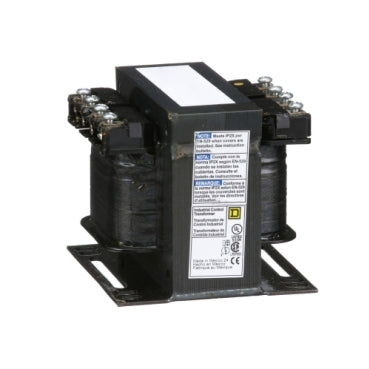

9070T150D3 - Square D Control Transformer 150VA 208V Primary 120V Secondary

9070T150D3

9070T150D3 is a Square D Class 9070 Type T industrial control transformer designed for single-phase applications with a 150 VA power rating.Key Specifications

• Power Rating: 150 VA
• Primary Voltage: 208V AC
• Secondary Voltage: 120V AC
• Frequency: 50/60 Hz
• Temperature Rise: 55 degrees C
• Terminal Type: Screw Clamp
• Dimensions: 3.2 in H x 3.75 in W x 3.59 in D
• Winding Material: Copper
• Enclosure Finish: Epoxy Resin Varnish
• Certifications: UL, CUL, CSA, CE, NOM
• Standard: EN 61558

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T150D3
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 1
• KVA Rating : 0.15
• Primary Voltage : 208
• Secondary Voltage : 120

Product Data

• UPC : 785901905752
• GTIN : 00785901905752
• Country of Origin : Mexico
• Dimensions : 3.2 in (81.3 mm) x 3.75 in (95.25 mm) x 3.59 in (91.19 mm) (Height x Width x Depth)
• Weight : 5.509
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
