Description
9070T150D13

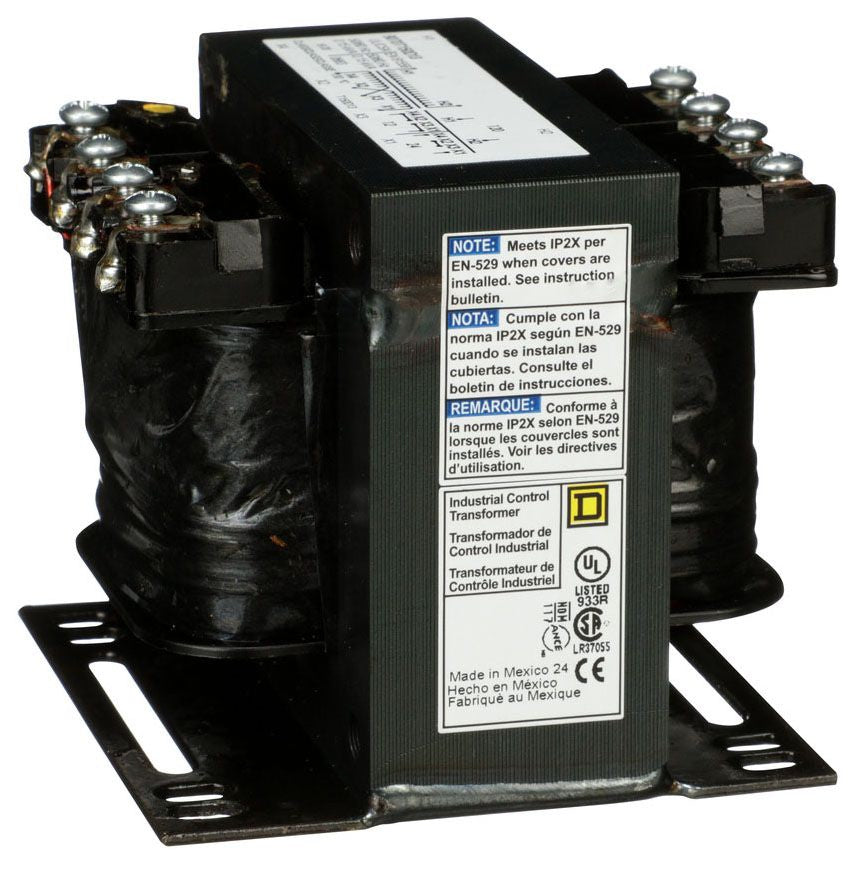

9070T150D13 is a Square D Type T industrial control transformer with a 150VA capacity, single-phase operation, and a 120V primary to 12/24V secondary output. Designed for reliable performance in control circuits, this transformer features a 55°C temperature rise and is suitable for a wide range of industrial applications. This control transformer is rated for 50/60 Hz frequency, features an open enclosure, and is UL, CUL, CSA, CE, and NOM approved. The unit is built to meet EN 61558 standards and is designed for easy installation in control panels and motor control centers.
- Part Number: 9070T150D13
- Manufacturer: Square D
- Type: Type T Industrial Control Transformer
- Power Rating: 150VA
- Primary Voltage: 120V AC
- Secondary Voltage: 12V AC, 24V AC
- Phase: Single-Phase
- Frequency: 50/60 Hz
- Temperature Rise: 55°C
- Enclosure: Open
- Approvals: UL, CUL, CSA, CE, NOM
- Standard: EN 61558
Specifications
- Part Number: 9070T150D13
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Transformers
- Section : Control
- Family : 9070
Product Data
- UPC : 785901905479
- GTIN : 785901905479
- Country of Origin : Mexico
- Dimensions : 3.2 in (81.3 mm) x 3.75 in (95.25 mm) x 3.59 in (91.19 mm) (Height x Width x Depth)
- Weight : 5.84
- Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
