Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Industrial Control
Description
9070T100D2

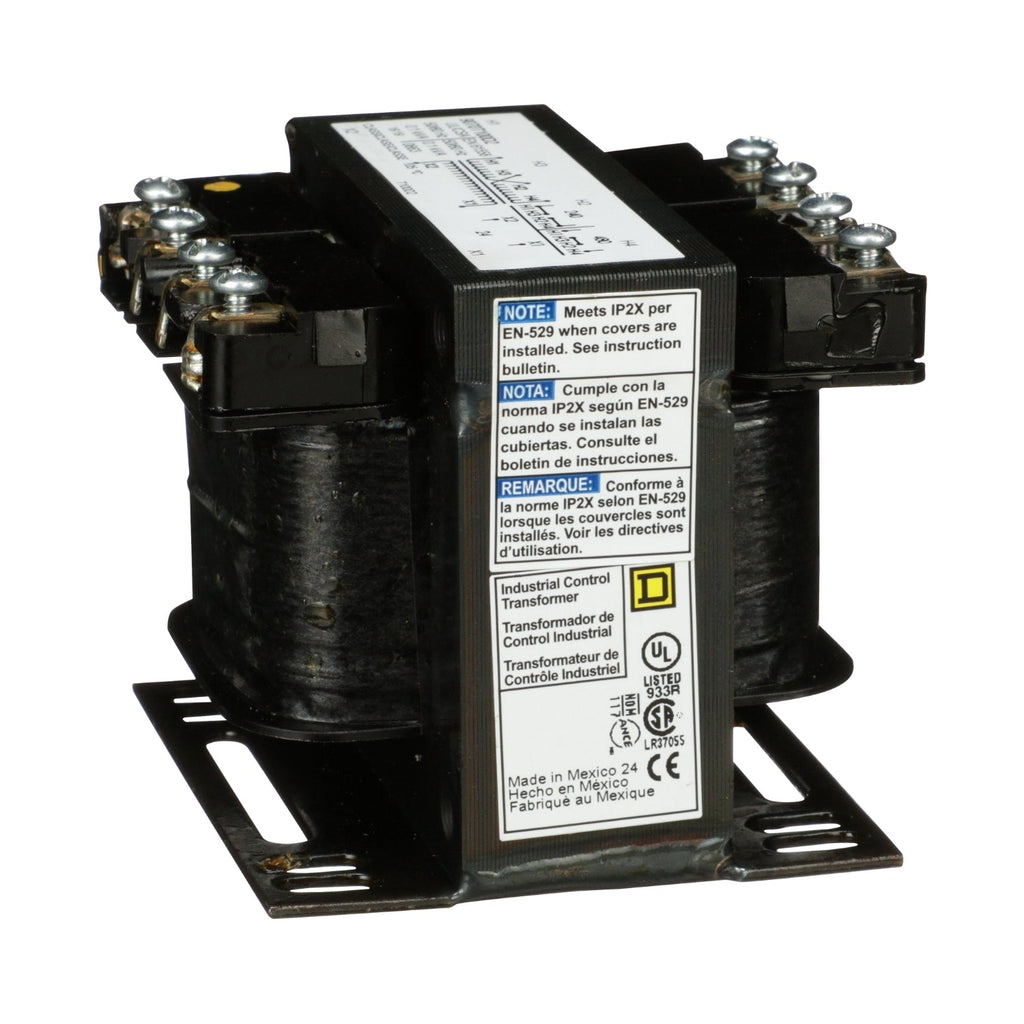

9070T100D2 is a Square D industrial control transformer designed for reliable voltage transformation in control circuits.
This transformer provides 100VA power with a primary voltage of 240/480V and a secondary voltage of 24V. It operates at 1 phase and 50/60 Hz frequency. The unit features an open enclosure style with epoxy resin varnish finish and low impedance windings for excellent voltage regulation. It is UL, CUL, CSA, CE, and NOM approved for safety and performance.
- Power Rating: 100VA
- Primary Voltage: 240/480V
- Secondary Voltage: 24V
- Phase: 1-Phase
- Frequency: 50/60 Hz
- Enclosure Style: Open
- Enclosure Finish: Epoxy Resin Varnish
- Low Impedance Windings
- Approvals: UL, CUL, CSA, CE, NOM
- Dimensions: Approximately 2.89" H x 3.38" W x 3.34" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 9070T100D2
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Transformer
- Item Subcategory : Industrial Control
- Family : Class 9070
- Type : T
- Phase : 1
- KVA Rating : 0.1
- Primary Voltage : 240/480
- Secondary Voltage : 24
Product Data
- UPC : 785901905011
- GTIN : 00785901905011
- Country of Origin : Mexico
- Dimensions : 2.89 in (73.41 mm) x 3.38 in (85.85 mm) x 3.34 in (84.84 mm) (Height x Width x Depth)
- Weight : 3.781
- Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
