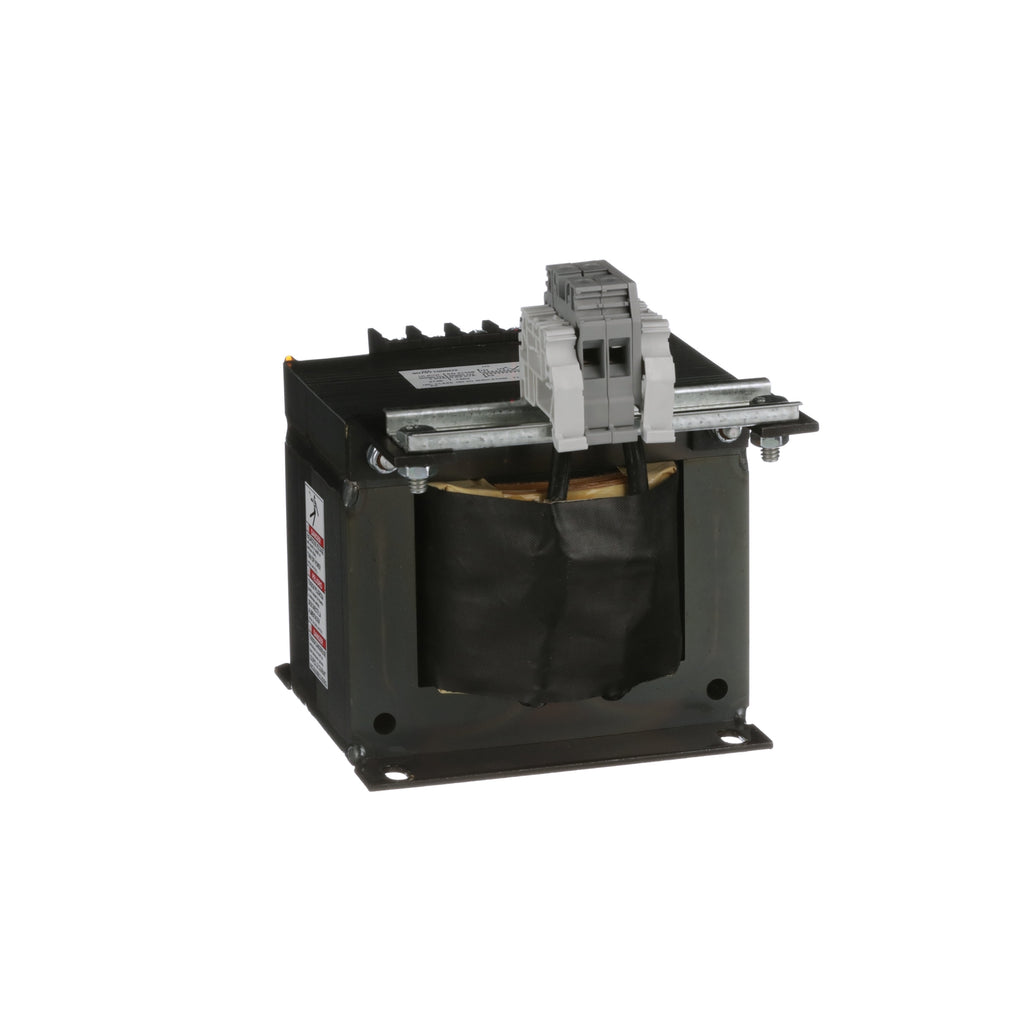

9070T1000D2 - Square D 1000 VA 240/480V Primary 24V Secondary 1-Phase Control Transformer

9070T1000D2

9070T1000D2 is a Square D industrial control transformer designed for reliable power conversion in motor control applications. This transformer features a 1000 VA power rating, 240/480V AC primary input, and 24V AC secondary output, supporting single-phase operation with a temperature rise of 115°C. It is constructed with copper windings and epoxy resin varnish for durability and long service life. This control transformer is panel mountable and includes screw clamp terminals for secure electrical connections. It is UL listed, CSA certified, and complies with RoHS and REACH standards, making it suitable for a wide range of industrial environments. The compact design and robust construction ensure efficient performance and easy installation.

• Part Number: 9070T1000D2
• Manufacturer: Square D
• Power Rating: 1000 VA
• Primary Voltage: 240/480V AC
• Secondary Voltage: 24V AC
• Phase: 1-Phase
• Mounting Type: Panel Mount
• Temperature Rise: 115°C
• Electrical Connection: Screw Clamp Terminal
• Enclosure Finish: Epoxy Resin Varnish
• Certifications: UL Listed, CSA, RoHS, REACH
• Dimensions: 5.25 in W x 6.3 in D x 4.51 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T1000D2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Transformers
• Section : Control
• Family : 9070
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901313601
• GTIN : 00785901313601
• Country of Origin : United States
• Dimensions : 4.51 in (114.55 mm) x 5.25 in (133.35 mm) x 6.3 in (160.02 mm) (Height x Width x Depth)
• Weight : 20.201
• Temp Rating : -13–158 °F (-25–70 °C)
