Description
9070EL2D9

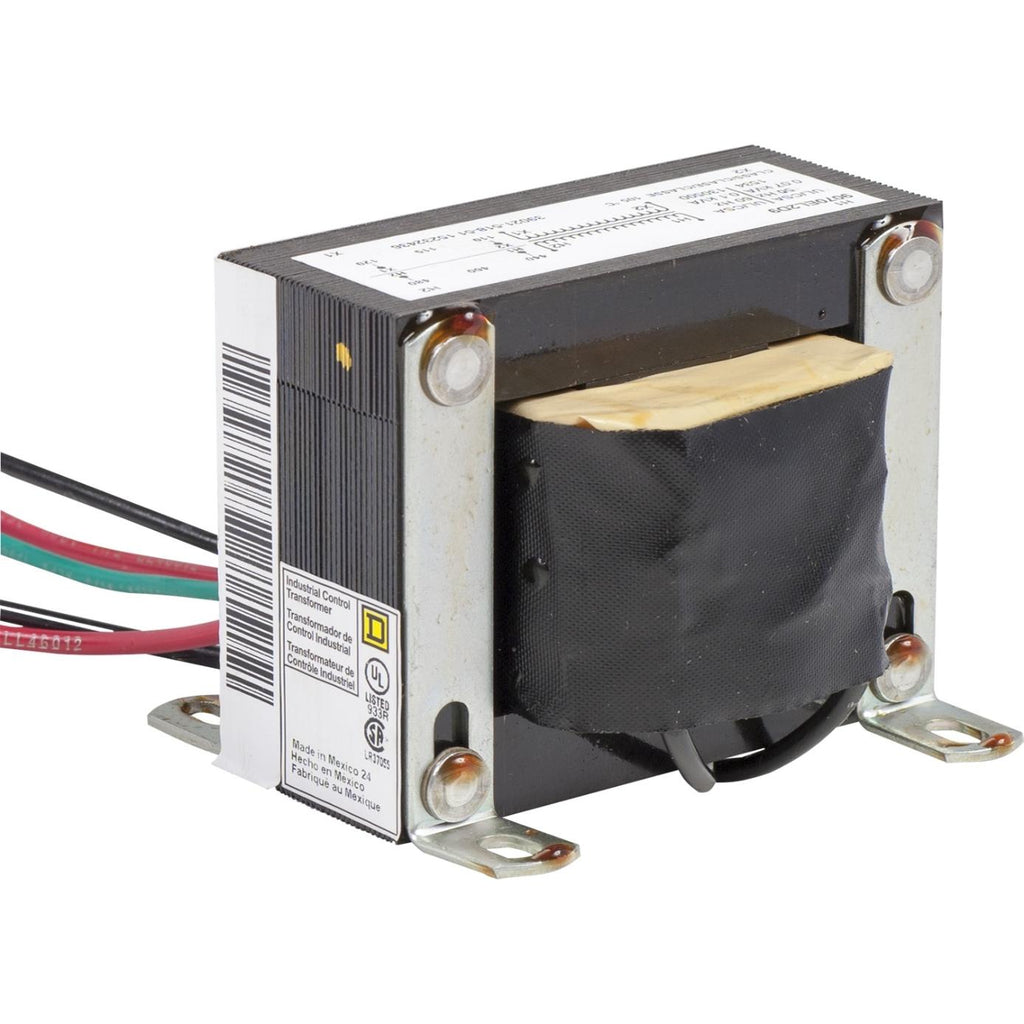

9070EL2D9 is a Square D Type EL industrial control transformer designed for reliable voltage conversion in motor control applications. This transformer provides 100VA single-phase power with a 480V primary and 120V secondary, featuring a 55°C temperature rise for stable operation. Engineered for industrial environments, the 9070EL2D9 is commonly used in motor control centers and control panels. It features a robust core-coil design, includes a green ground lead, and is built to meet demanding control circuit requirements. The transformer is multi-voltage compatible on both primary and secondary sides, making it versatile for various control applications.
- Part Number: 9070EL2D9
- Manufacturer: Square D
- Type: EL Industrial Control Transformer
- Rated Power: 100VA
- Phase: 1-Phase
- Primary Voltage: 480V (multi-tap: 440/460/480V)
- Secondary Voltage: 120V (multi-tap: 110/115/120V)
- Temperature Rise: 55°C
- Mounting: Core-Coil, Panel Mount
- Terminals: Screw Terminal (Class A)
- Grounding: Includes Green Ground Lead
- Application: Motor Control, Control Panels
Specifications
- Part Number: 9070EL2D9
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Transformers
- Section : Control
Product Data
- UPC : 078590102022
- GTIN : 00785901020226
- Country of Origin : Mexico
- Dimensions : 2.5 in W x 3 in D x 2.81 in H 2.81 in H x 2.5 in W x 3 in D
- Weight : 4.05 lb
- Certification : CE, CSA, REACH, RoHS, UL Listed
