9066RA1 - Square D NEMA 1/12 External Reset Mechanism OEM Kit, Push Button, Rod, for Magnetic Starters & 9065 Series Overload Relays

9066RA1

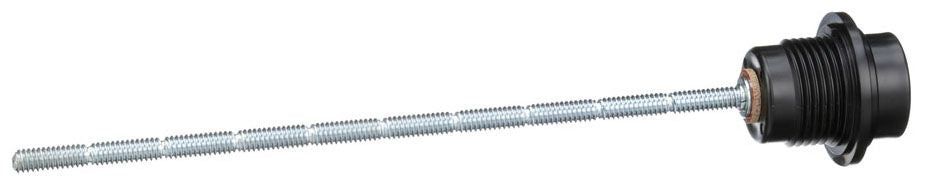

9066RA1 Square D external reset mechanism OEM kit allows manual reset of Type S overload relays without opening the enclosure.

This kit includes a grey push button operator and rod, designed for direct panel mounting on NEMA 1 and 12 enclosures. It is compatible with Square D open type magnetic starters and Class 9065 overload relays, providing a reliable and easy-to-install solution for motor control applications. The reset mechanism is field interchangeable and comes standard on non-reversing, reversing, combination, and multispeed starters.

Key Specifications

• Manufacturer: Square D (Schneider Electric)
• Part Number: 9066RA1
• Category: Motor Control Accessory
• Type: External Reset Mechanism OEM Kit
• Mounting: Direct to panel, NEMA 1 and 12 enclosures
• Operator: Push button (grey)
• Includes: Reset button and one rod
• Compatibility: Square D open type magnetic starters, Class 9065 overload relays
• Application: Resets Type S overload relay without opening enclosure
• Certifications: NEMA 1, NEMA 12
• Series/Frame: 9066 Types RA-1, RA-2, RA-3
• Trip Unit: Not specified
• Amperage: Not specified
• Voltage: Not specified
• Poles: Not specified
• Interrupt Rating: Not specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9066RA1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor starter controls

Product Data

• UPC : 078590186433
• Country of Origin : Mexico
• Weight : 0.25 lb
• Certification : RoHS
