Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
9065ST420

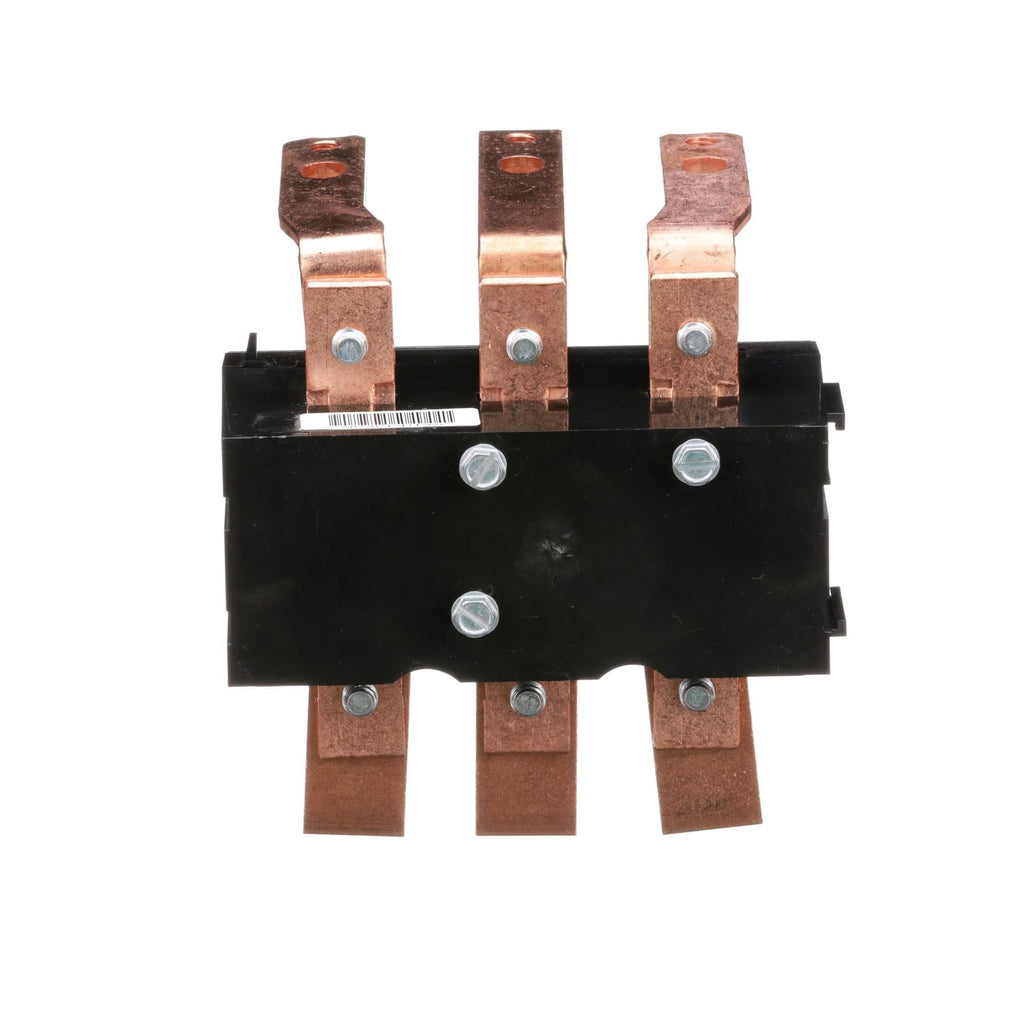

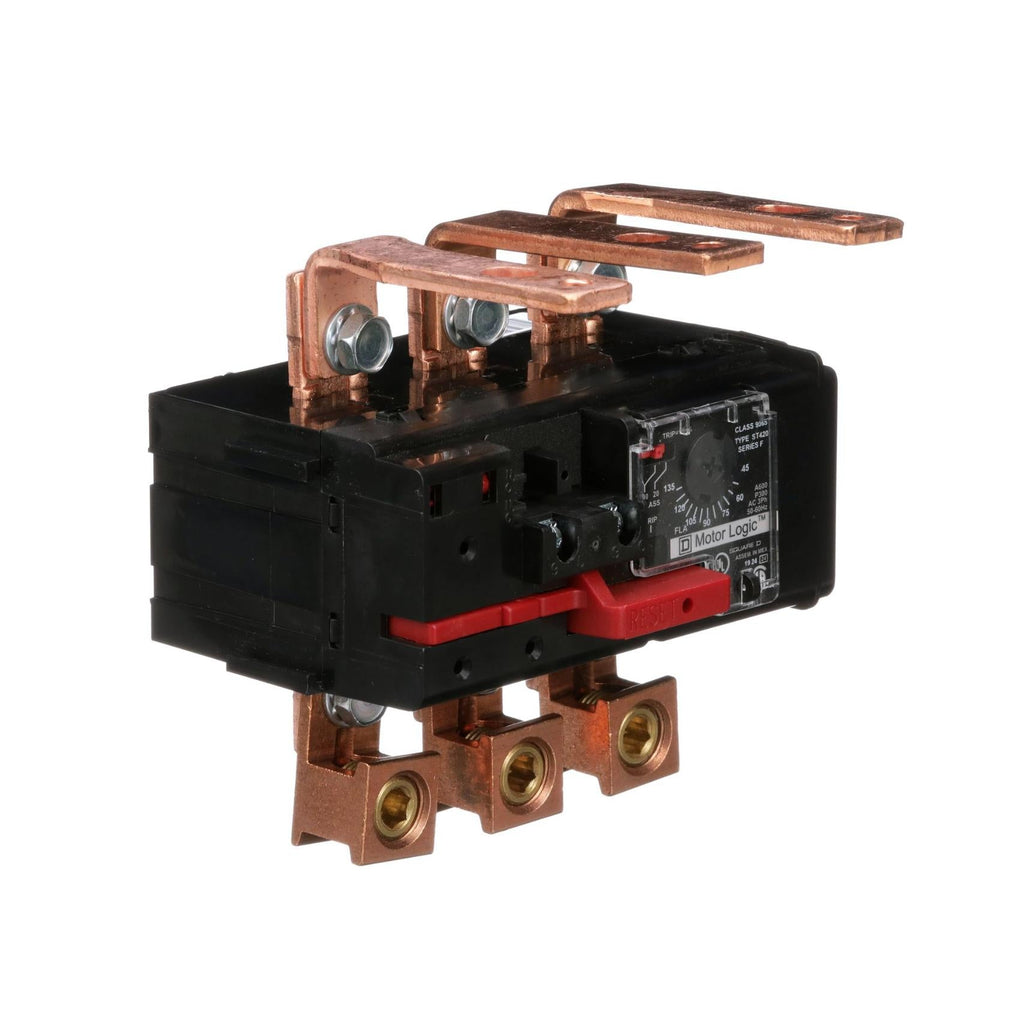

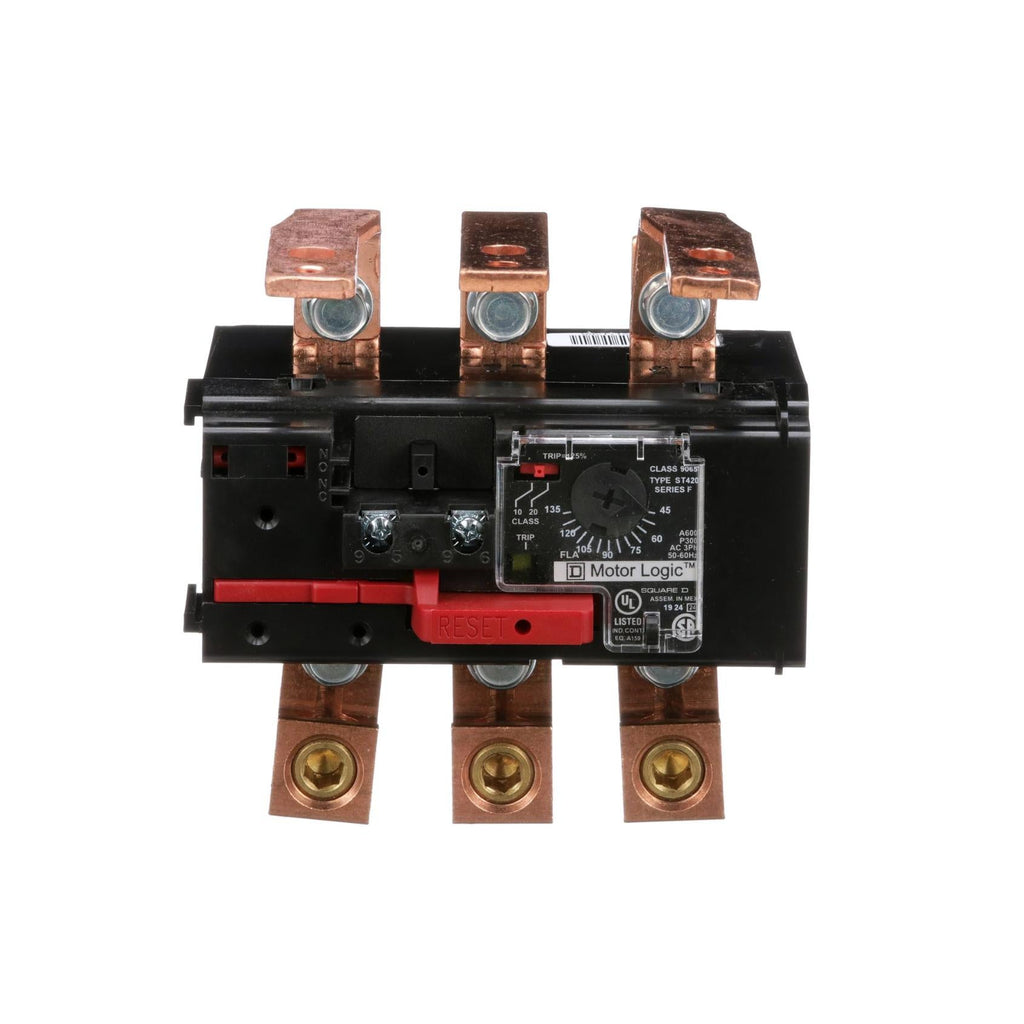

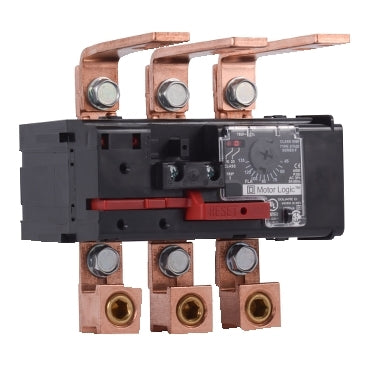

9065ST420 is a 3 pole solid state overload relay designed for motor protection in industrial applications. This Square D Motor Logic relay features a current rating of 45-135A and a voltage rating of 600VAC, suitable for use with NEMA Size 4 starters. The 9065ST420 offers electronic protection, thermal overload sensing, and is compatible with both non-reversing and reversing starters. It is designed for panel or separate mounting and provides reliable trip-free operation for critical motor circuits. The relay is UL listed and CSA certified for safety and compliance.
- Part Number: 9065ST420
- Manufacturer: Square D
- Series/Frame: Motor Logic, NEMA Size 4
- Amperage Rating: 45-135A
- Voltage Rating: 600VAC
- Poles: 3
- Mounting Type: Panel or Separate Mount
- Interrupt Rating: Not specified
- Trip Unit: Solid State
- Certifications: UL Listed, CSA Certified
- Application: Motor Protection, 3 Phase
- Enclosure Type: NEMA 4
Specifications
- Part Number: 9065ST420
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : MotorLogic
- Type : 9065
- Voltage : 600 AC
- Relay Style : Solid State
- Aux Contacts : 1NC
- Amperage Maximum : 135
- Amperage Minimum : 45
- Nema Starter Size : 4
Product Data
- UPC : 785901751977
- GTIN : 00785901751977
- Country of Origin : Mexico
- Dimensions : 5.9 in (150.4 mm) x 5.3 in (135.4 mm) x 4.5 in (115.1 mm) (Height x Width x Depth)
- Weight : 3.5
- Certification : REACH, RoHS
