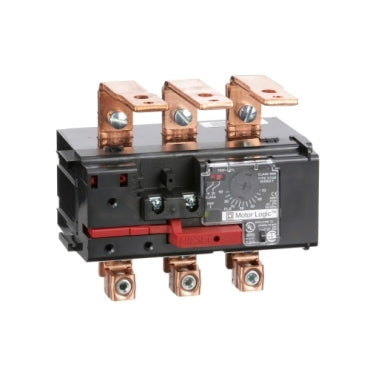

9065ST320 - Square D Motor Logic Solid State Overload Relay 30-90A 600VAC 3 Pole NEMA Size 3

9065ST320

9065ST320 is a Square D Motor Logic solid state overload relay designed for motor control applications.This thermal overload relay provides reliable protection for three-phase AC motors with a full load current adjustable from 30 to 90 amperes and a maximum voltage rating of 600 VAC. It features a NEMA Size 3 frame, 3 poles, and supports separate mounting. The relay includes a switch selectable Class 10/20 trip unit, trip free operation to prevent motor overheating, visible trip indicator, trip test function, and electrical remote reset capability. It is UL listed and CSA certified for safety and performance.

Key Specifications
• Amperage Range: 30-90 A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Separate Mount
• Thermal Overload Type: Solid State
• Trip Class: Class 10/20 selectable
• NEMA Size: 3
• Certifications: UL Listed, CSA Certified
• Dimensions: 5.02" H x 5.33" W x 4.45" D
• Country of Origin: USA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9065ST320
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : MotorLogic
• Type : 9065
• Voltage : 600 AC
• Aux Contacts : 1NC
• Amperage Maximum : 90
• Amperage Minimum : 30
• Nema Starter Size : 3



Product Data

• UPC : 78590175194
• GTIN : 00785901751946
• Country of Origin : Mexico
• Dimensions : 5.02 in (127.5 mm) x 5.3 in (135.4 mm) x 4.4 in (113 mm) (Height x Width x Depth)
• Weight : 2.87
• Certification : REACH, RoHS
