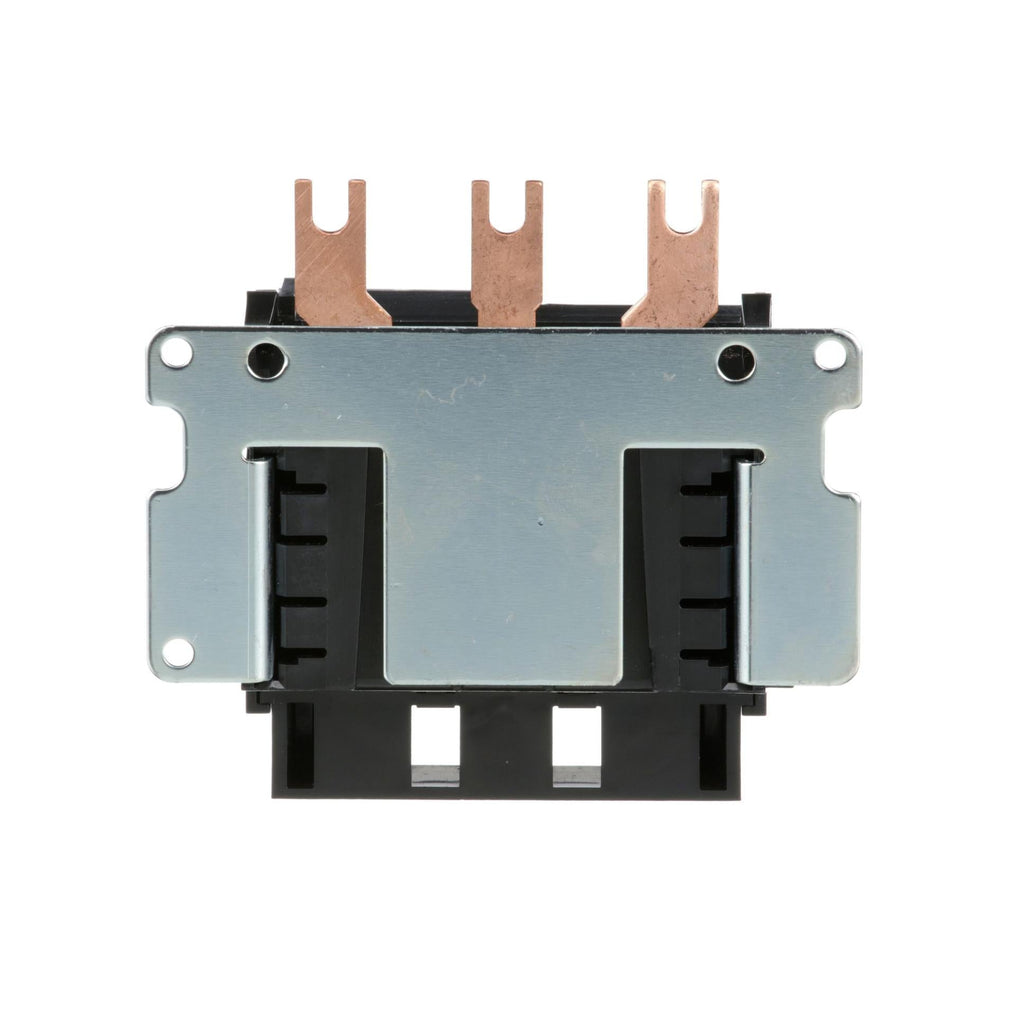

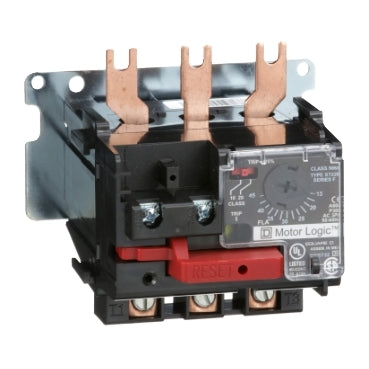

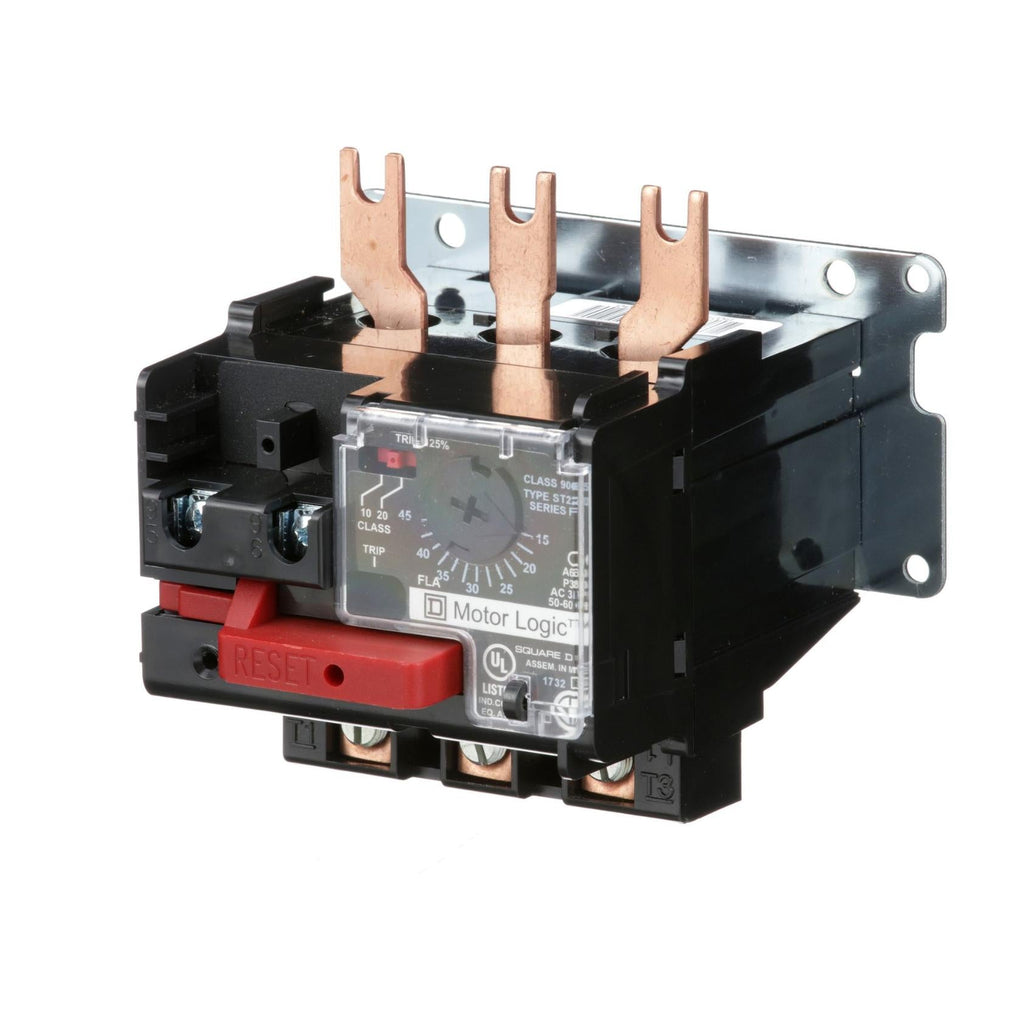

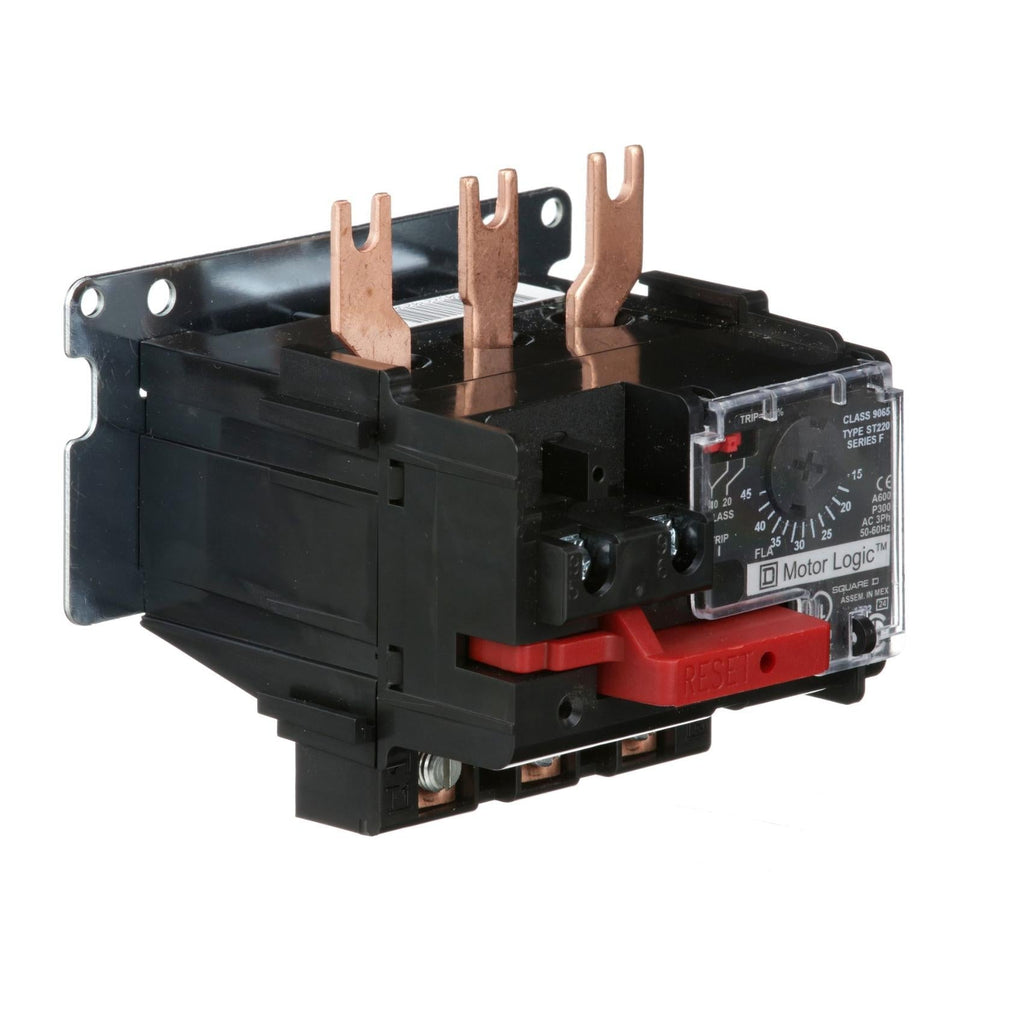

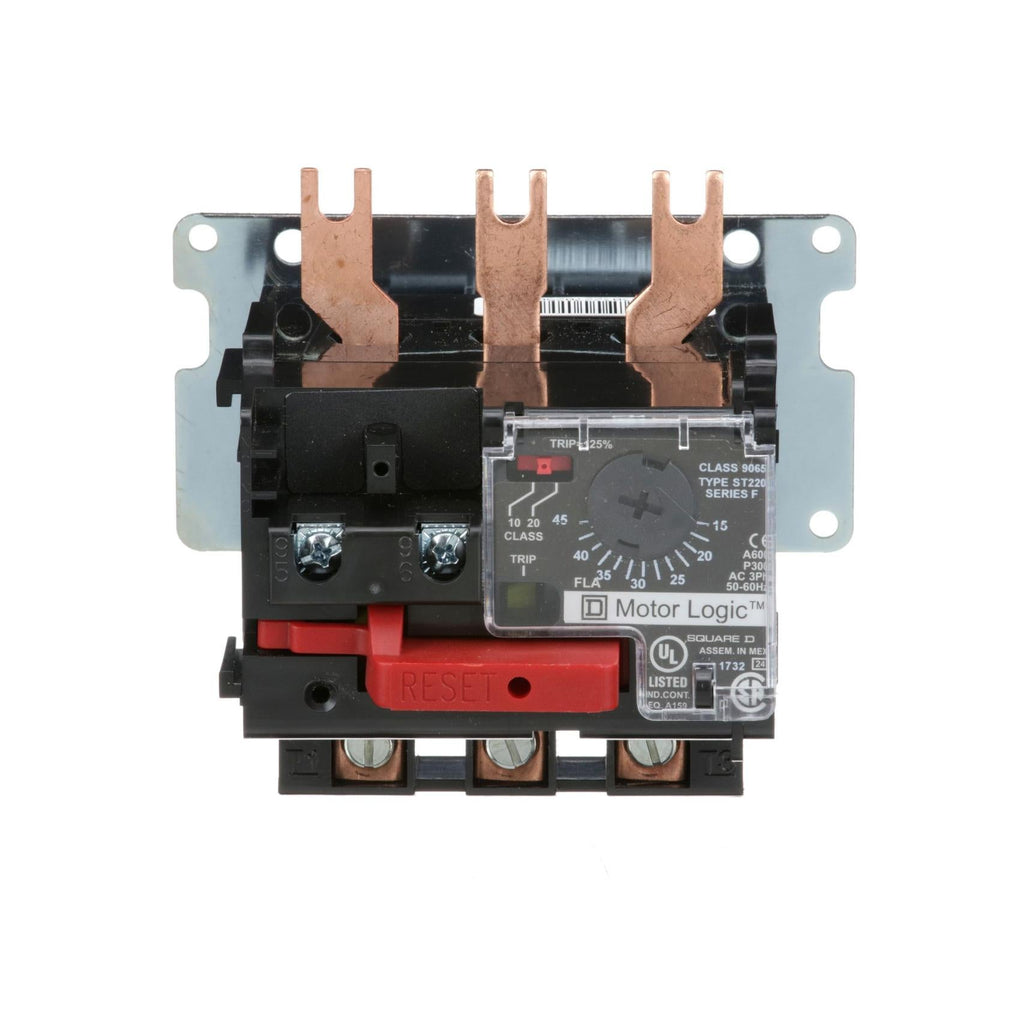

9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20

SKU: 9065ST220-New
Condition: New
Price:
$431.18
Stock:
23 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

9065ST220 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
9065ST220 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply
9065ST220 - Square D Motor Logic Solid State Overload Relay 15-45A 600VAC 3 Pole NEMA Size 2 Class 10/20 - Essential Electric Supply

Description

9065ST220


9065ST220 is a Square D Motor Logic solid state overload relay designed for reliable motor protection in industrial applications. This device provides precise overload protection for motors with a full load current range of 15 to 45 amps and a maximum voltage rating of 600 VAC. It features a 3-pole configuration and is suitable for use with 3-phase systems. The relay is built to NEMA Size 2 standards and supports both non-reversing and reversing starter configurations. The 9065ST220 offers solid state technology for accurate and repeatable trip performance, with Class 10/20 trip characteristics. It is designed for surface or separate mounting and is compatible with a variety of starter types. The unit includes a 1NC contact form for control circuit integration and is field interchangeable for easy replacement. Its trip free operation ensures reliable protection even during repeated fault conditions.
  • Part Number: 9065ST220
  • Manufacturer: Square D
  • Series: Motor Logic
  • Amperage: 15 - 45 A
  • Voltage: 600 VAC
  • Poles: 3 Pole
  • Mounting Type: Surface or Separate Mount
  • Enclosure Type: NEMA Size 2
  • Number of Phases: 3 Phase
  • Relay Style: Solid State
  • Trip Class: Class 10/20
  • Contact Form: 1NC
  • Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: 9065ST220
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Family : MotorLogic
  • Type : 9065
  • Voltage : 600 AC
  • Relay Style : Solid State
  • Aux Contacts : 1NC
  • Amperage Maximum : 45
  • Amperage Minimum : 15
  • Nema Starter Size : 2

Product Data

  • UPC : 785901750017
  • GTIN : 00785901750017
  • Country of Origin : Mexico
  • Dimensions : 3.5 in (89.2 mm) x 4.3 in (108.7 mm) x 3.5 in (89.2 mm) (Height x Width x Depth)
  • Weight : 1.263
  • Certification : REACH, RoHS
