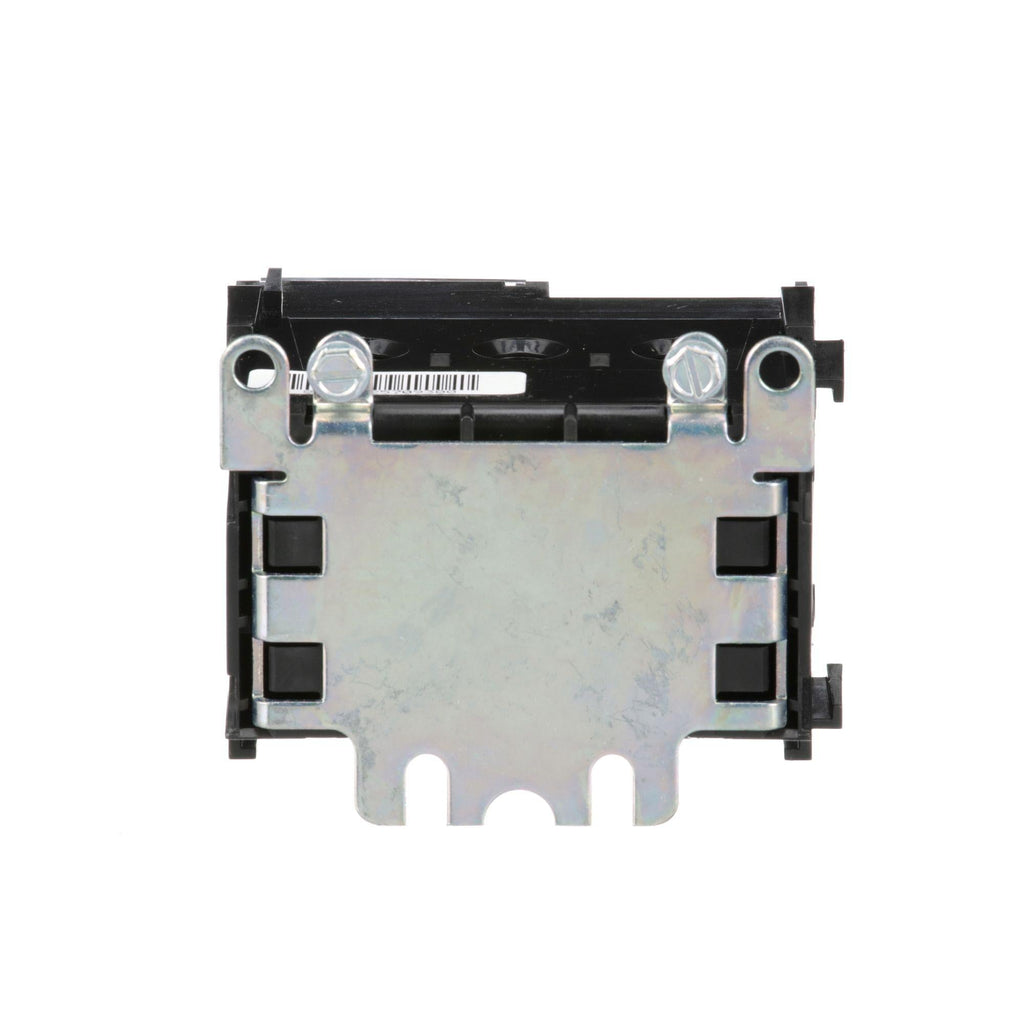

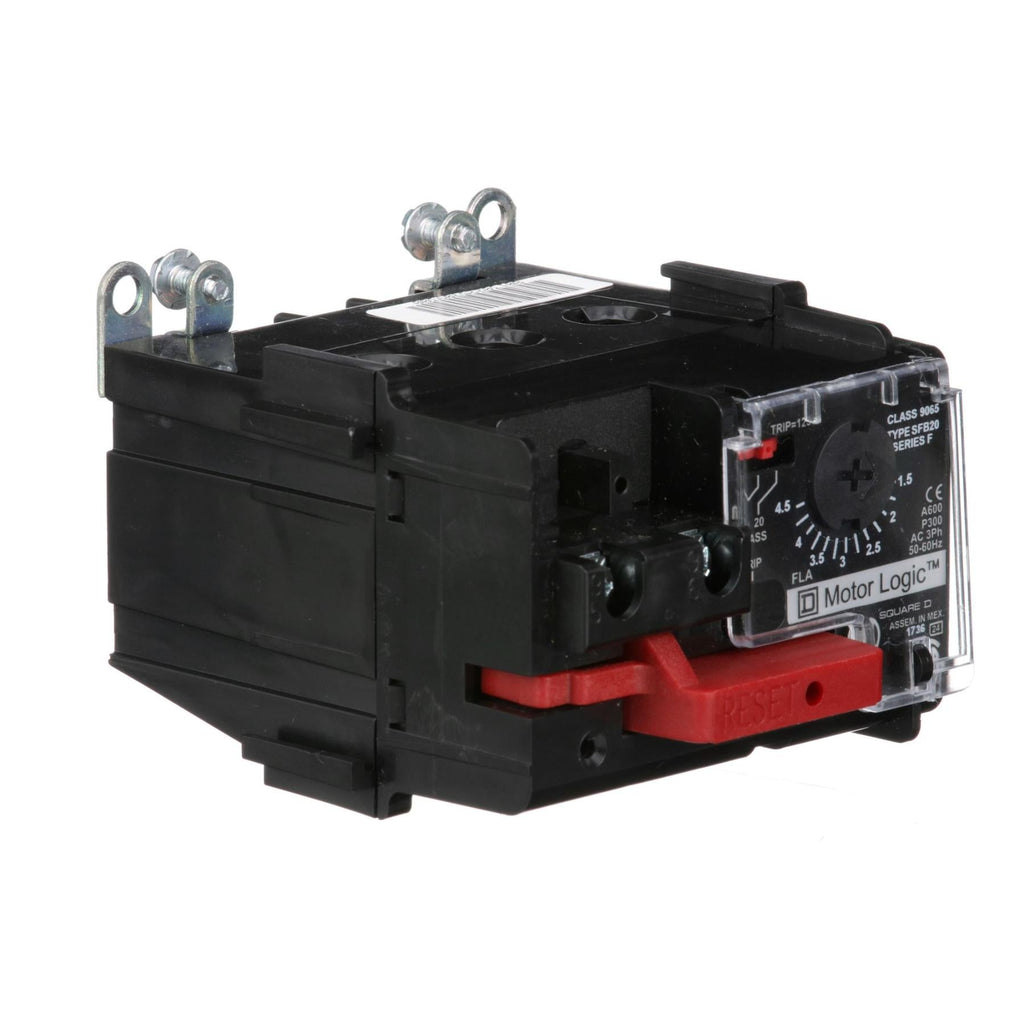

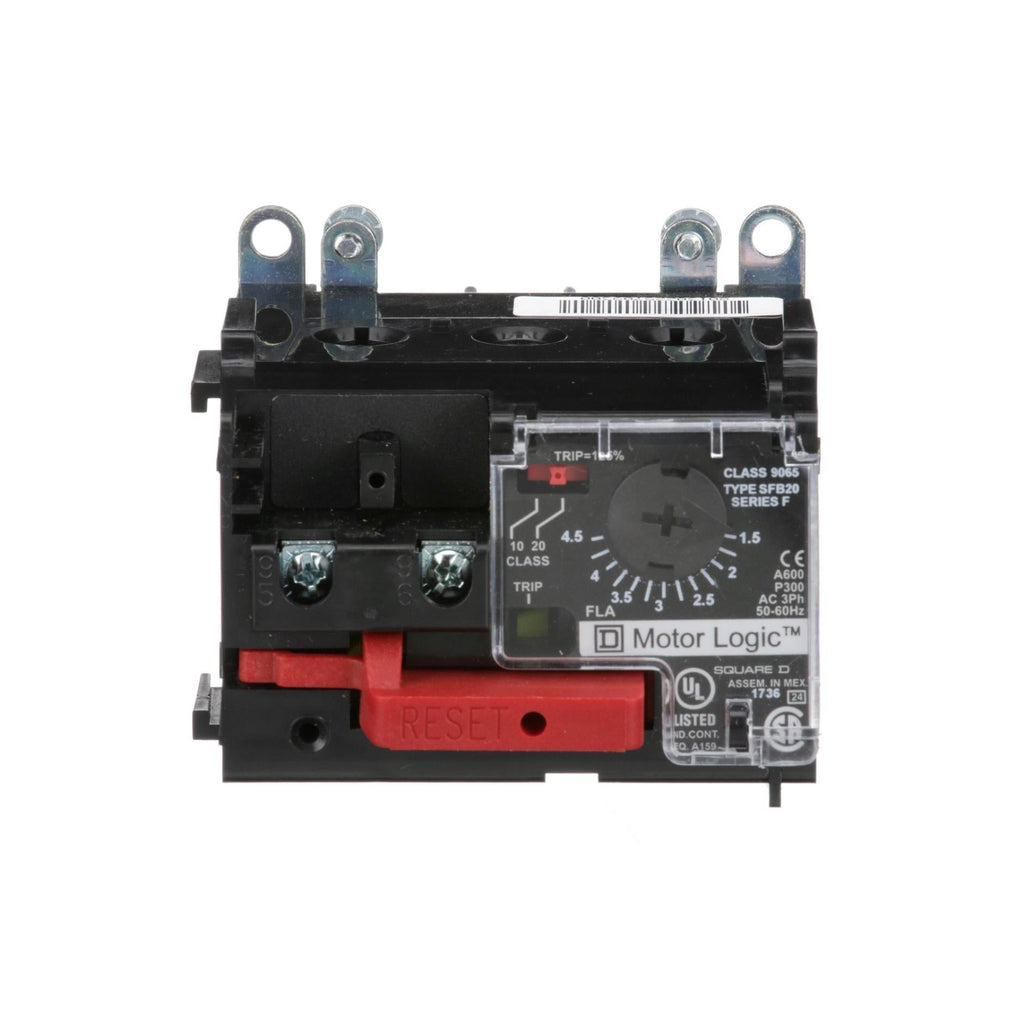

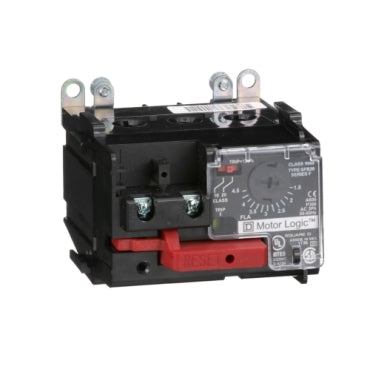

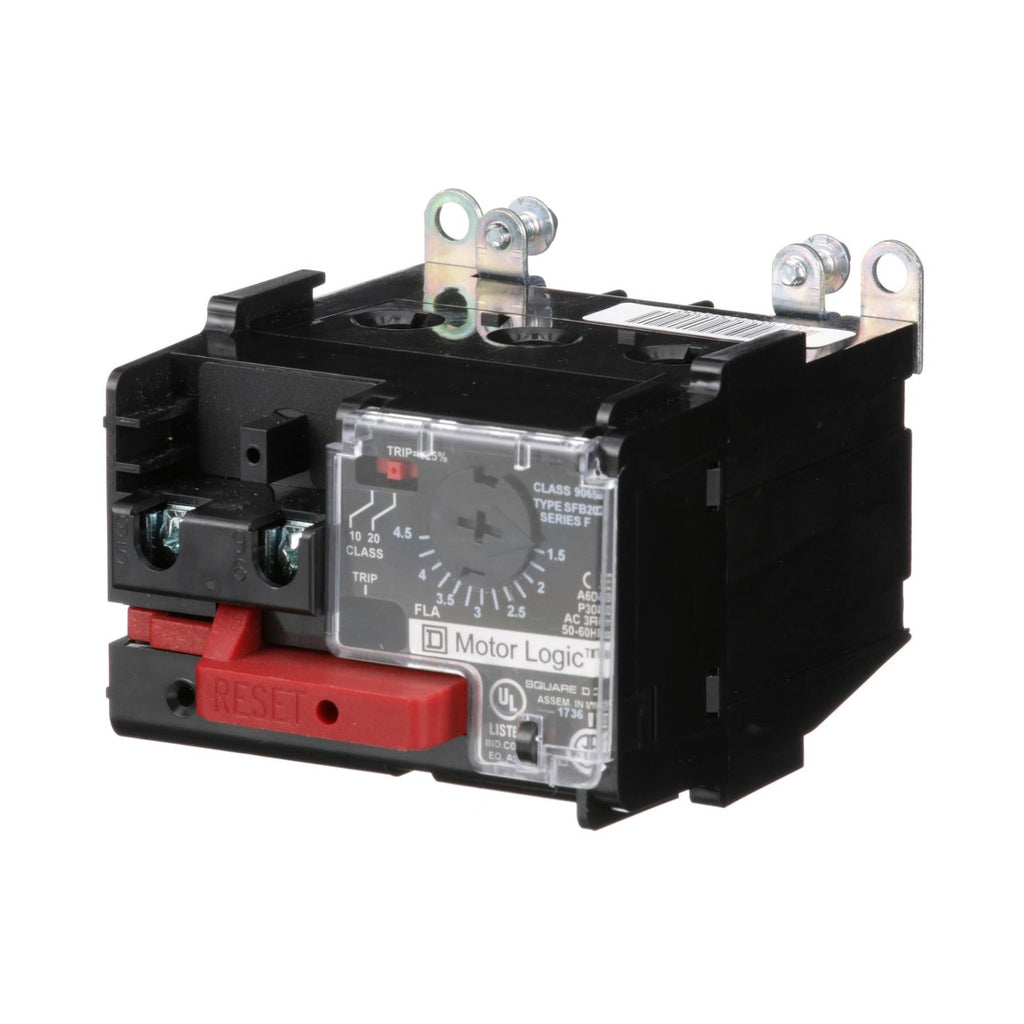

9065SFB20 - Square D 4.5A 600VAC 3 Pole Solid State Overload Relay NEMA Size 00 Motor Control

9065SFB20

This thermal overload relay features a 3-pole configuration and mounts on a surface with a NEMA Size 00 frame. It is compatible with Motor Logic starters and provides reliable motor protection with a melting alloy sensing method. The relay is UL listed and CSA certified, ensuring compliance with safety standards. It supports electrical remote reset and is suitable for both non-reversing and reversing starters.

Key Specifications
• Amperage: 1.5 to 4.5 A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Surface mount
• Frame Type: NEMA Size 00
• Interrupt Rating: N/A (thermal overload relay)
• Trip Unit: Solid state thermal
• Certifications: UL listed, CSA certified
• Compatible with Motor Logic starters
• Electrical remote reset available
• Dimensions: approx. 2.2 in W x 4.5 in D x 2.8 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: 9065SFB20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : MotorLogic
• Type : S
• Voltage : 600 AC
• Relay Style : Solid State
• Aux Contacts : 1NC
• Amperage Maximum : 4.5
• Amperage Minimum : 1.5
• Nema Starter Size : 0



Product Data

• UPC : 785901039686
• GTIN : 00785901039686
• Country of Origin : Mexico
• Dimensions : 2.7 in (68.3 mm) x 3.3 in (82.8 mm) x 3.9 in (99.1 mm) (Height x Width x Depth)
• Weight : 0.97
• Certification : REACH, RoHS
