Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
9065SF120

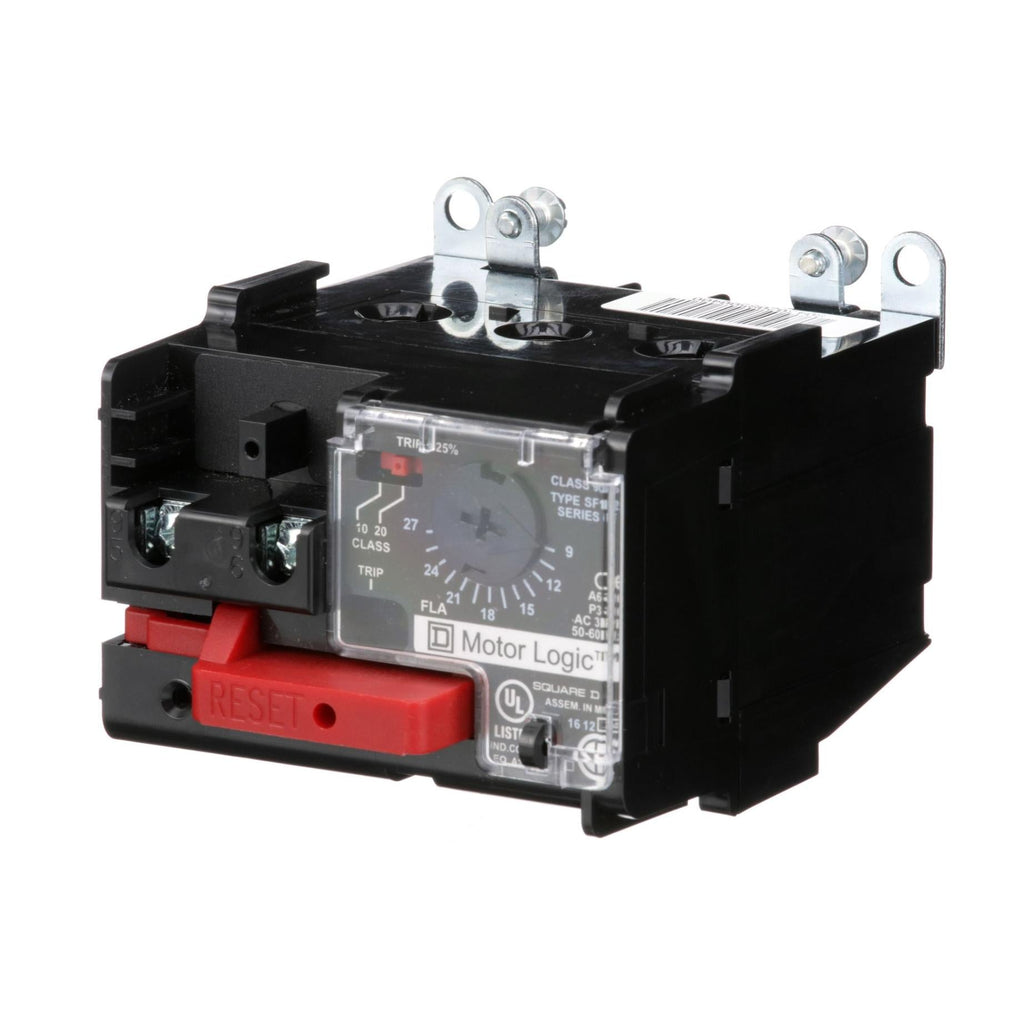

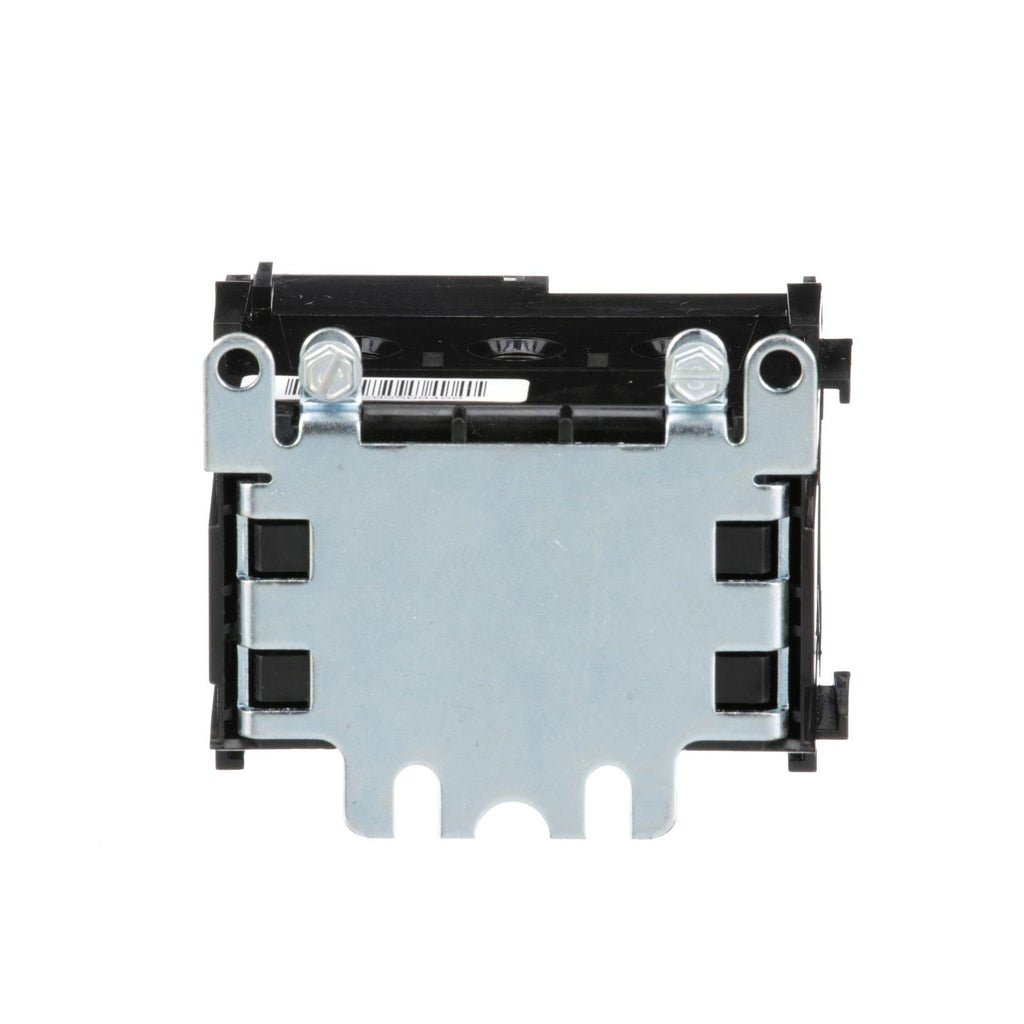

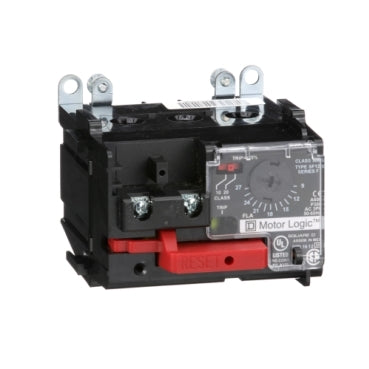

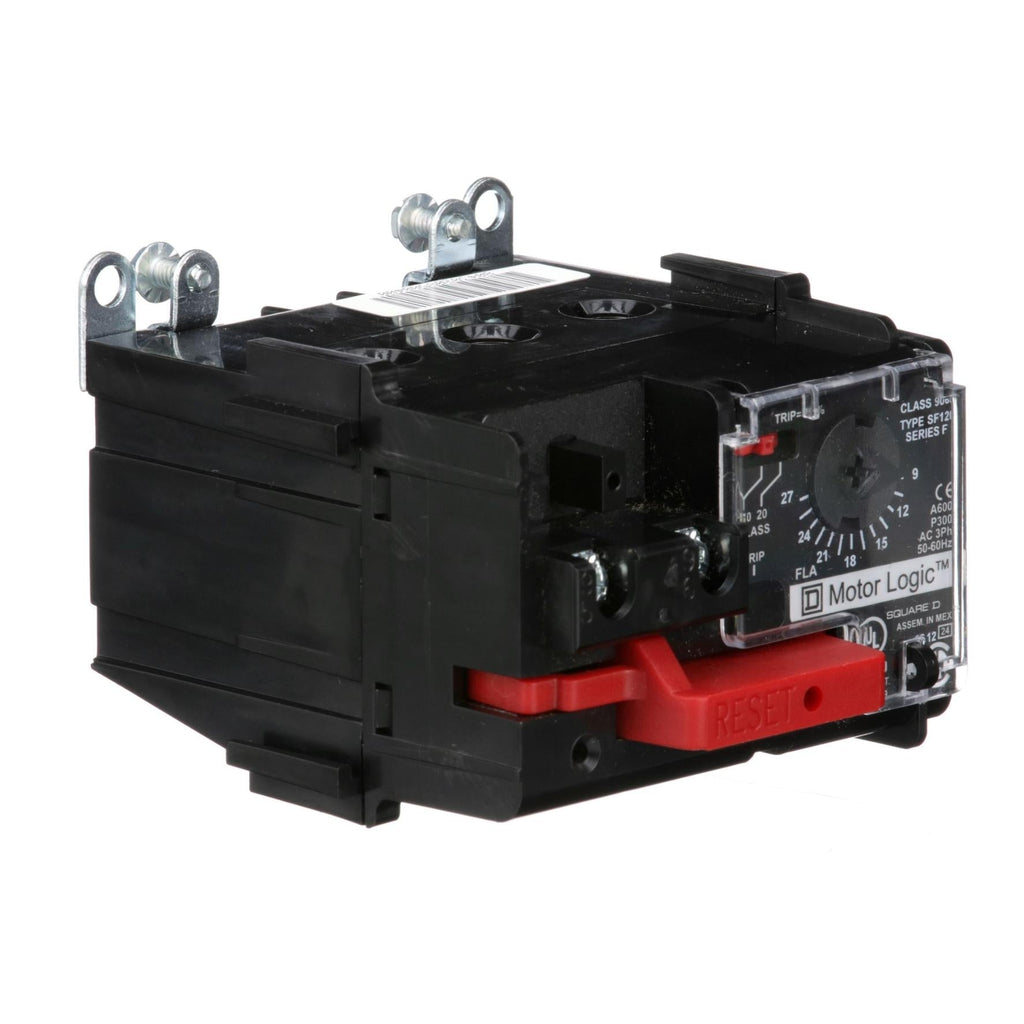

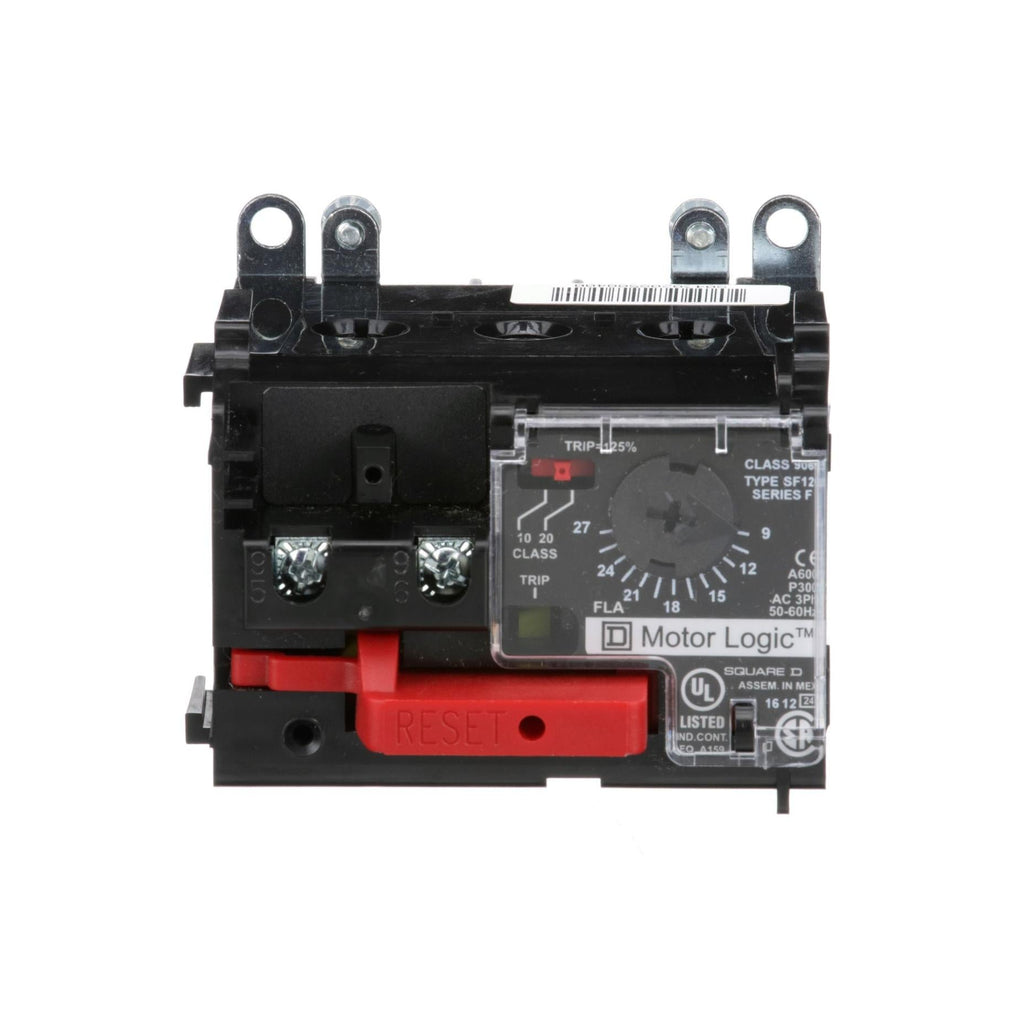

9065SF120 is a Square D Motor Logic solid state overload relay designed for motor control applications. It provides reliable thermal overload protection with adjustable current settings.
This overload relay supports a full load current range from 9A to 27A and operates at a maximum voltage of 600 VAC. It features trip-free operation and is suitable for 3-phase motors. The relay is NEMA 1 rated and UL listed and CSA certified for safety and performance compliance.
- Key Specifications
- Amperage Range: 9A to 27A adjustable
- Voltage Rating: 600 VAC maximum
- Phase: 3-phase
- Mounting Type: NEMA 1 enclosure
- Trip Class: 10/20
- Thermal Overload Type: Solid state
- UL Listed and CSA Certified
- Dimensions: 6.3 in W x 5.3 in D x 5.5 in H
- Frequency: 50/60 Hz
- Part Number: 9065SF120
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : MotorLogic
- Type : S
- Voltage : 600 AC
- Relay Style : Solid State
- Aux Contacts : 1NC
- Amperage Maximum : 27
- Amperage Minimum : 9
- Nema Starter Size : 1
- UPC : 785901749936
- GTIN : 00785901749936
- Country of Origin : Mexico
- Dimensions : 2.7 in (68.3 mm) x 3.3 in (82.8 mm) x 3.9 in (99.1 mm) (Height x Width x Depth)
- Weight : 1.018
- Certification : REACH, RoHS
