Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
9065SF020

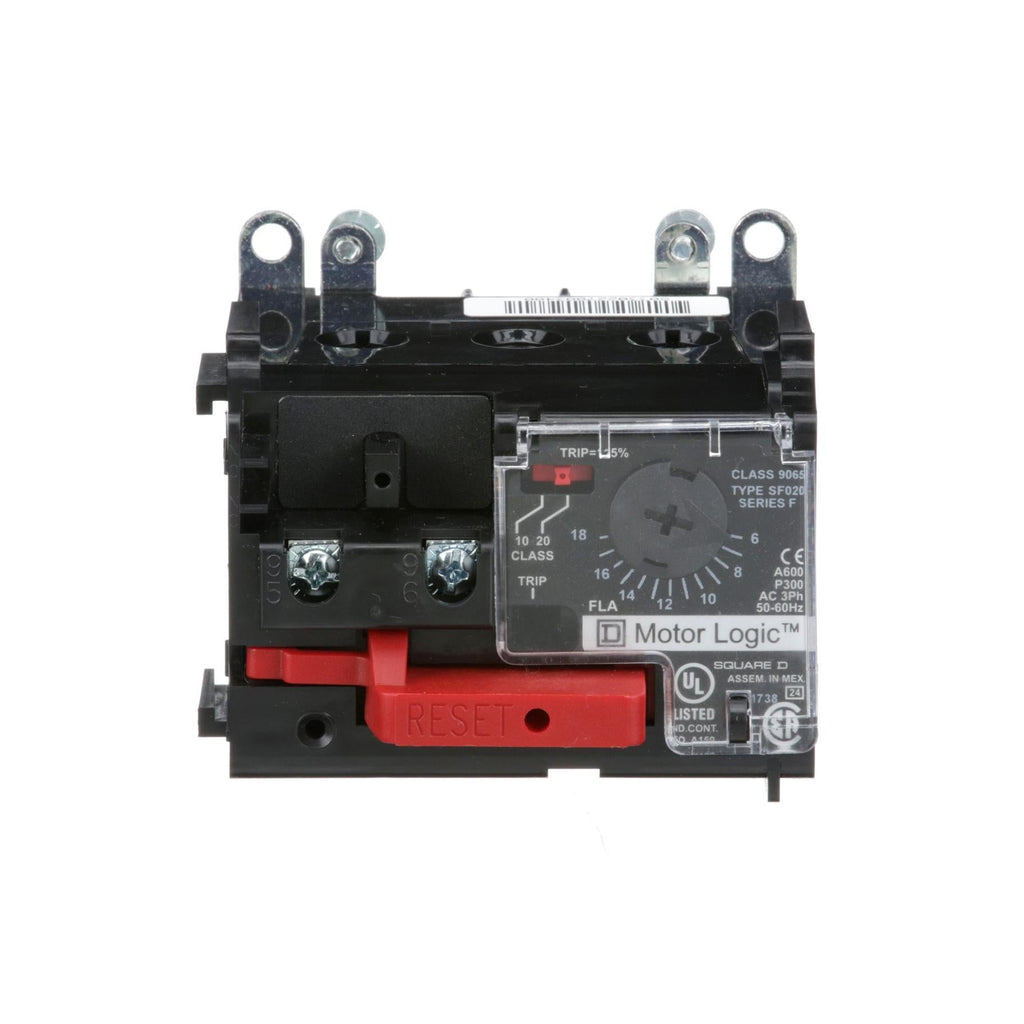

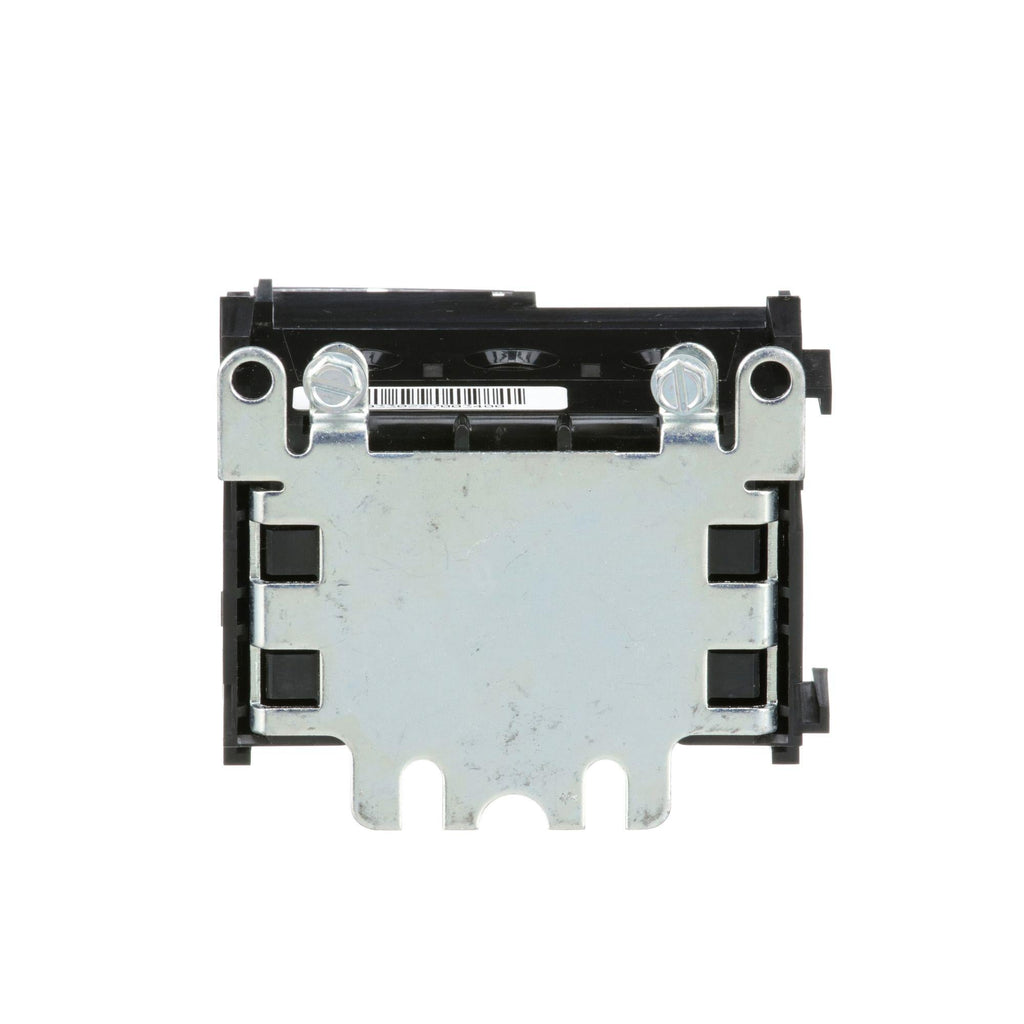

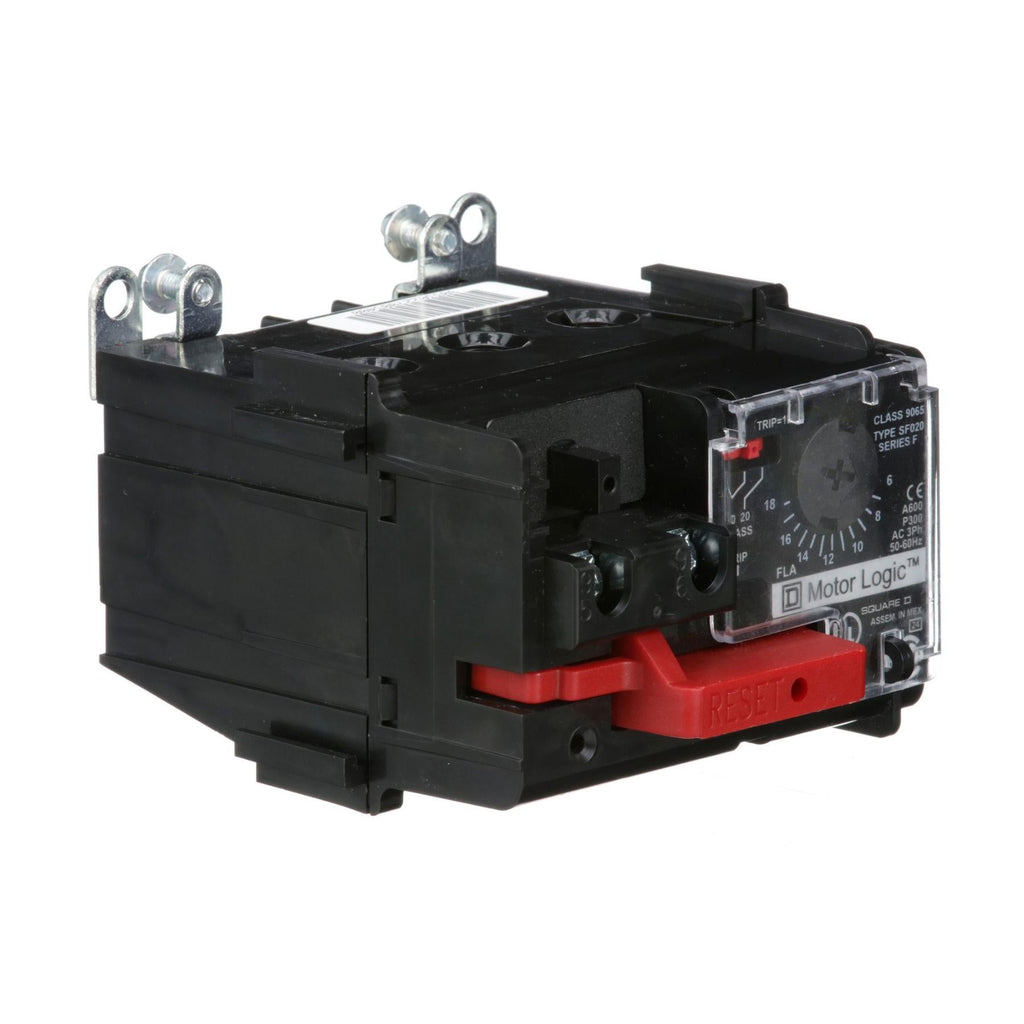

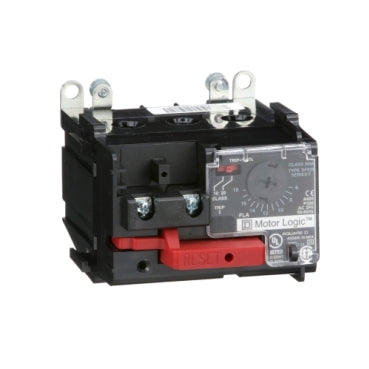

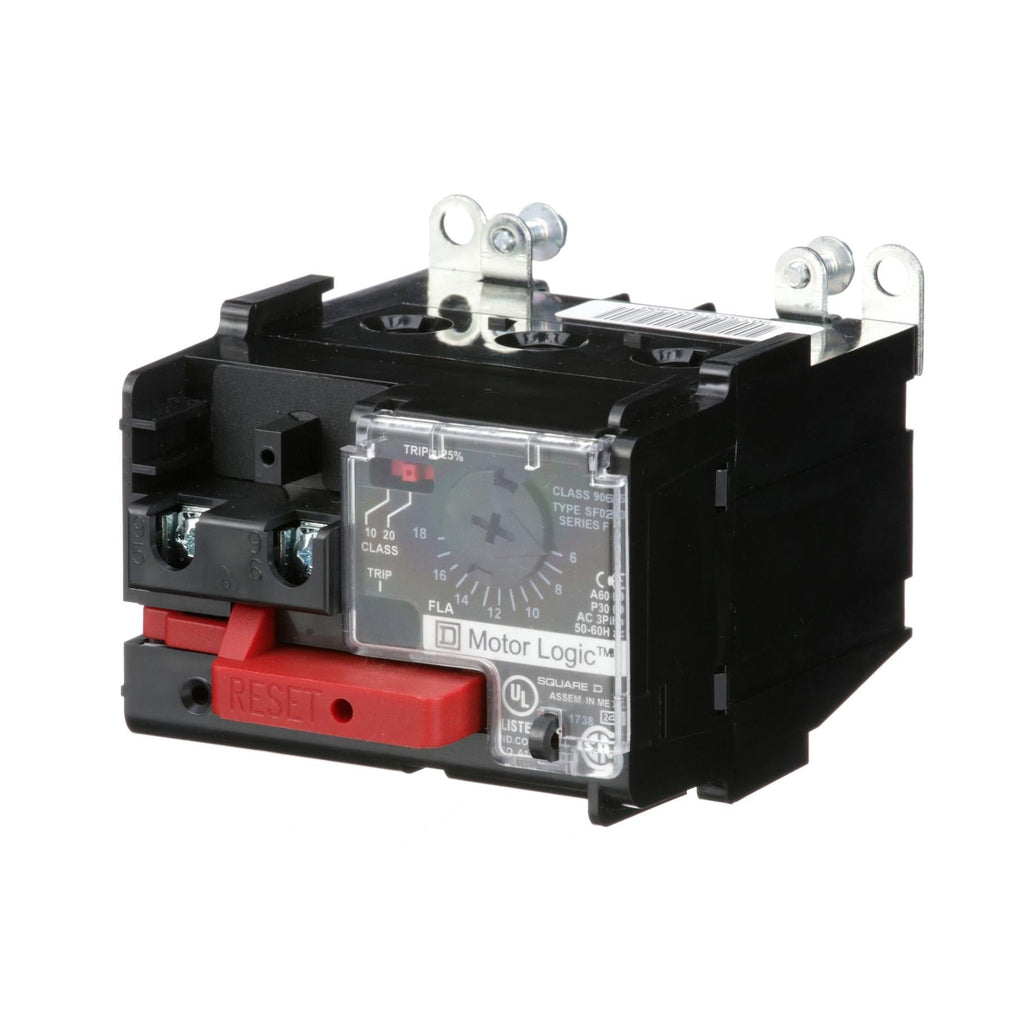

9065SF020 is a Square D solid state thermal overload relay designed for motor control applications with an 18 amp rating.This 3-pole overload relay features a solid state design with adjustable current settings from 6 to 18 amps, suitable for 600 VAC operation at 50/60 Hz. It includes trip free operation and selectable trip class 10/20 for motor protection. The relay mounts on the surface and comes in a NEMA 0 enclosure with compact dimensions of 6.1 in W x 5.3 in D x 5.5 in H. It is manufactured by Schneider Electric and is immune to line harmonics.
- Key Specifications
- Amperage Rating: 18 A (adjustable 6-18 A)
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Mounting Type: Surface Mount
- Enclosure Type: NEMA 0
- Frequency Rating: 50/60 Hz
- Trip Class: Selectable 10/20
- Type: Solid State Thermal Overload
- Dimensions: 6.1 in W x 5.3 in D x 5.5 in H
- Contact Rating: 18 A at 600 VAC
- Country of Origin: Mexico
- Manufacturer: Schneider Electric (Square D)
- Part Number: 9065SF020
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : MotorLogic
- Type : S
- Voltage : 600 AC
- Relay Style : Solid State
- Aux Contacts : 1NC
- Amperage Maximum : 18
- Amperage Minimum : 6
- Nema Starter Size : 0
- UPC : 785901749929
- GTIN : 00785901749929
- Country of Origin : Mexico
- Dimensions : 2.7 in (68.3 mm) x 3.3 in (82.8 mm) x 3.9 in (99.1 mm) (Height x Width x Depth)
- Weight : 1.024
- Certification : REACH, RoHS
