Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description
9065SEO5

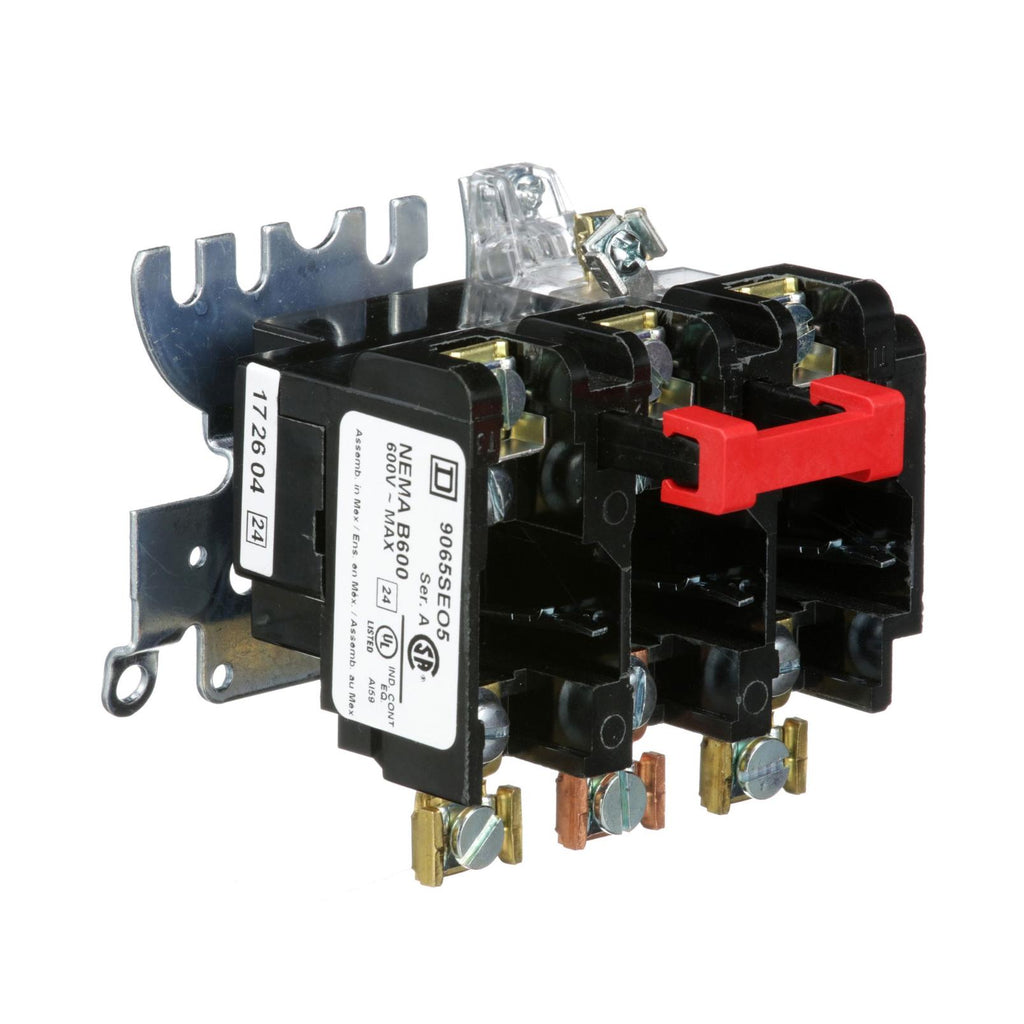

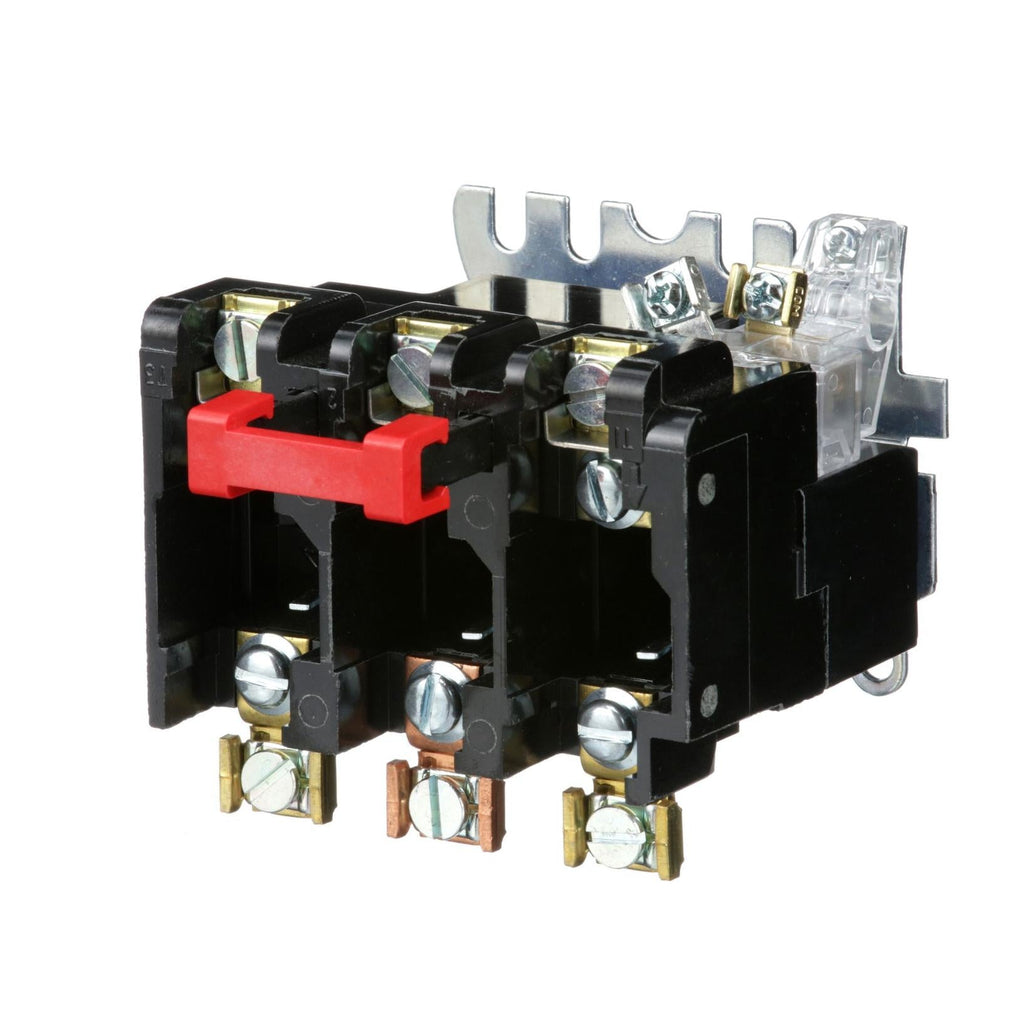

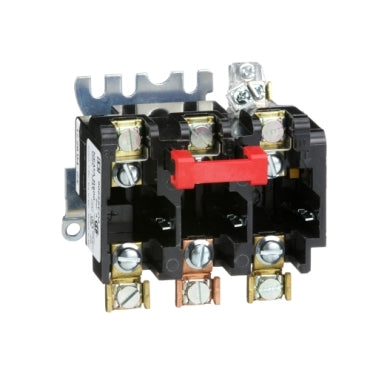

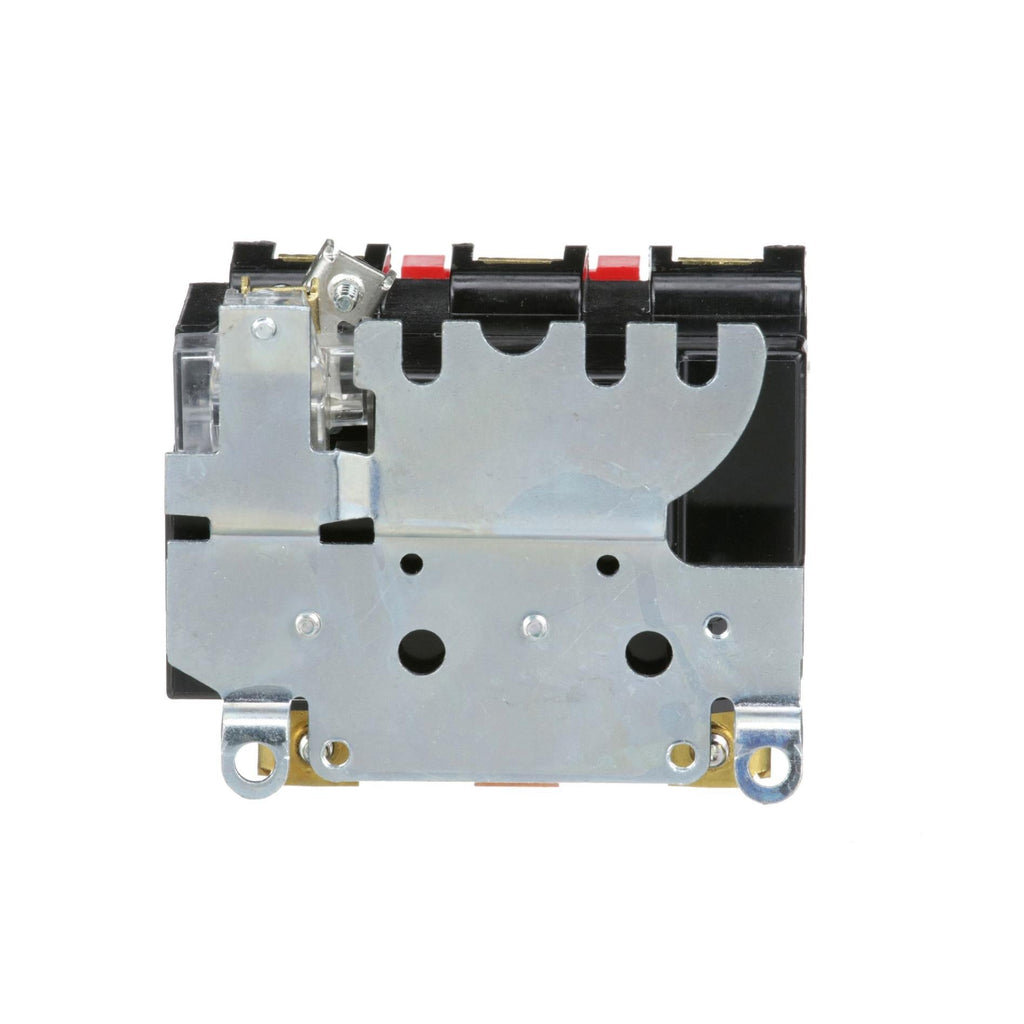

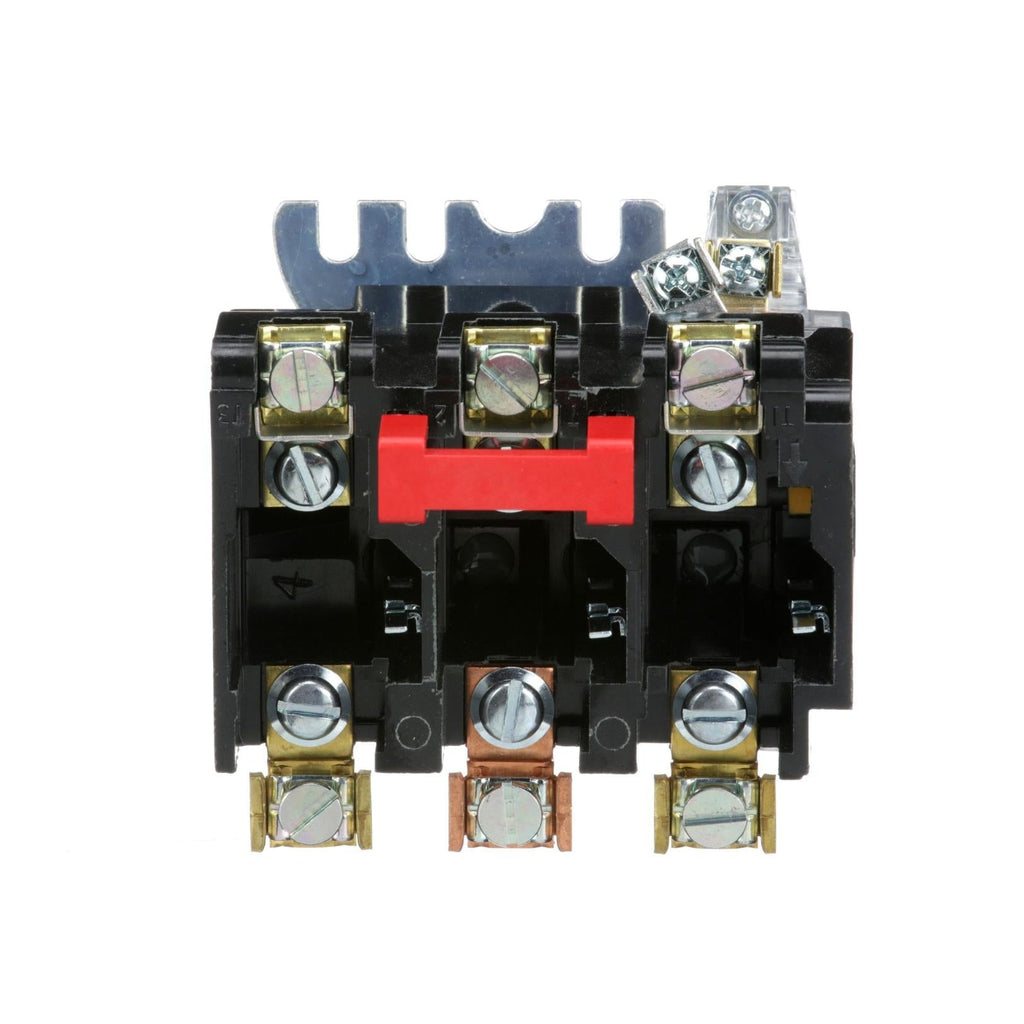

9065SEO5 is a Square D Type S melting alloy overload relay designed for motor control applications with a 25 amp current rating and 600 VAC voltage rating.9065SEO5 features a 3-pole, 3-phase configuration with a separate mount design, suitable for NEMA size 00, 0, or 1 starters. It provides reliable thermal protection against motor overheating and is UL listed and CSA certified for safety and performance.
- Key Specifications
- Amperage: 25 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Phase: 3-Phase
- Mounting Type: Separate Mount
- Type: S Melting Alloy Thermal Overload Relay
- NEMA Size: 00, 0, 1
- Trip Unit: Thermal Melting Alloy
- Certifications: UL Listed, CSA Certified
- Application: Motor Control Protection
Specifications
- Part Number: 9065SEO5
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : Class 9065
- Type : SDO
- Voltage : 600 AC
- Relay Style : Thermal
- Aux Contacts : 1NC
- Coil Voltage Maximum : 600 VAC
- Amperage Maximum : 26
- Nema Starter Size : 1
Product Data
- UPC : 785901878827
- GTIN : 00785901878827
- Country of Origin : Mexico
- Dimensions : 3.3 in (84.1 mm) x 3.5 in (89.7 mm) x 4.0 in (100.8 mm) (Height x Width x Depth)
- Weight : 1.02
- Certification : RoHS
