9065SEO12 - Square D 86A 600VAC 3-Pole Thermal Overload Relay NEMA Size 3

9065SEO12

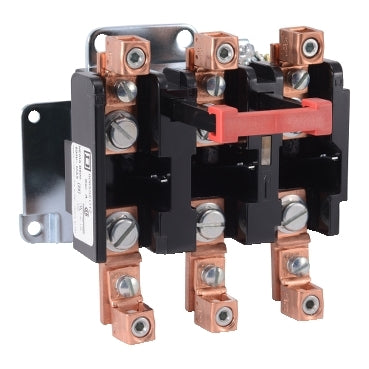

9065SEO12 is a Square D thermal overload relay designed for motor protection with a 3-pole configuration and NEMA size 3 frame.This overload relay features a melting alloy trip unit, manual reset, and is rated for 86 amperes and 600 volts AC. It is suitable for three-phase motor applications and provides reliable thermal protection to prevent motor damage. The relay is designed for separate mounting and is compatible with both reversing and non-reversing starters. It includes a trip-free reset mechanism and replaceable output contacts.

• Amperage: 86A maximum
• Voltage: 600 VAC maximum
• Poles: 3
• Phase: 3-phase
• Mounting Type: Separate mount
• Interrupt Rating: Melting alloy thermal trip
• Series/Frame: NEMA Size 3
• Reset Type: Manual
• Trip Unit: Thermal melting alloy
• Certifications: Standard industrial certifications (Square D)
• Trip-Free Reset Mechanism
• Replaceable Output Contacts

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9065SEO12
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Class 9065
• Type : SEO
• Voltage : 600
• Amperage : 4000
• Phase : 3
• Poles : 3
• Aux Contacts : 1NC
• Coil Voltage Maximum : 600 VAC
• Amperage Maximum : 86
• Nema Starter Size : 3

Product Data

• UPC : 078590178852
• GTIN : 00785901788522
• Country of Origin : Mexico
• Dimensions : 5.6 in (142.1 mm) x 5.3 in (134.9 mm) x 5.8 in (146.1 mm) (Height x Width x Depth)
• Weight : 3.419
• Certification : UL LISTED - CSA CERTIFIED - CE MARKED
