9065SDO4

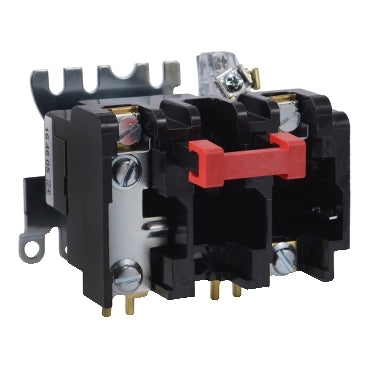

9065SDO4 is a melting alloy overload relay by Square D designed for motor control applications with a 27 amp adjustable range.
This thermal overload relay features a 2-pole configuration suitable for sizes 00, 0, and 1, rated for 600VAC single-phase operation. It uses a melting alloy trip unit for reliable motor protection and is designed for direct mounting in NEMA size 00/0/1 starters. The product is discontinued but was widely used for its robust performance in industrial motor control circuits.
- Key Specifications
- Manufacturer: Square D
- Part Number: 9065SDO4
- Amperage: Adjustable up to 27A
- Voltage Rating: 600VAC
- Poles: 2
- Mounting Type: Direct mount for NEMA sizes 00, 0, 1
- Trip Unit: Melting alloy
- Phase: Single-phase
- Series/Frame: Size 00/0/1
- Discontinued: Yes
- Part Number: 9065SDO4
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : Class 9065
- Type : SDO
- Relay Style : Thermal
- Amperage Maximum : 27
- UPC : 785901882305
- GTIN : 00785901882305
- Dimensions : 4.0 in (101.6 mm) x 3.5 in (88.9 mm) x 4.0 in (100.8 mm) (Height x Width x Depth)
- Weight : 0.94
