Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Overload Relay
Description

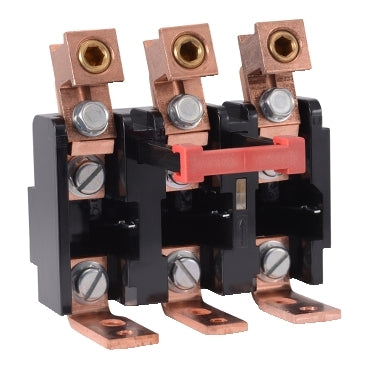

9065SDO15
9065SDO15 is a Square D Type S melting alloy overload relay designed for motor protection in NEMA size 4 applications. This 3 pole, 3 phase relay provides reliable thermal overload protection for motors up to 135A at 600VAC. Engineered for compatibility with both non-reversing and reversing starters, the 9065SDO15 features field interchangeable thermal units for easy replacement and installation flexibility. Its robust design ensures dependable performance in demanding industrial environments.
- Part Number: 9065SDO15
- Manufacturer: Square D
- Type: Melting Alloy Overload Relay
- Poles: 3
- Amperage Range: 91-135A
- Voltage Rating: 600VAC
- Mounting Type: Direct or Separate Mount
- Frame/Size: NEMA Size 4
- Series: 9065
- Application: Motor Control
- Features: Replacement Overload, Thermal Protection
- Standards: NEMA
Specifications
- Part Number: 9065SDO15
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : Class 9065
- Type : SDO
- Voltage : 600 AC
- Relay Style : Thermal
- Aux Contacts : 1NC
- Amperage Maximum : 135
- Nema Starter Size : 4
Product Data
- UPC : 785901850809
- GTIN : 00785901850809
- Country of Origin : Mexico
- Dimensions : 7.0 in (177 mm) x 5.3 in (134.9 mm) x 5.7 in (145.8 mm) (Height x Width x Depth)
- Weight : 3.3
- Certification : UL LISTED - CSA CERTIFIED - CE MARKED
