9050JCK70V20 - Square D 10A 240VAC Plug-In Multifunction Timing Relay Type JCK

9050JCK70V20

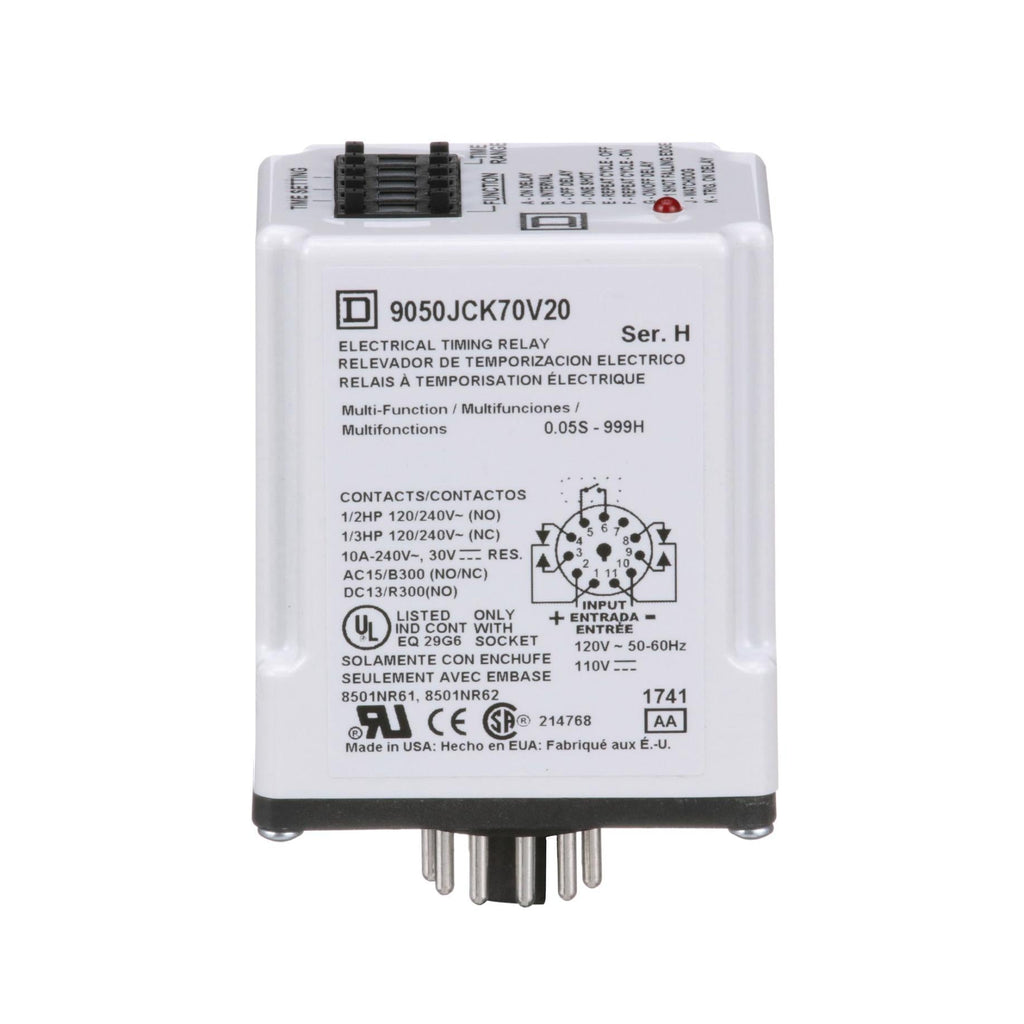

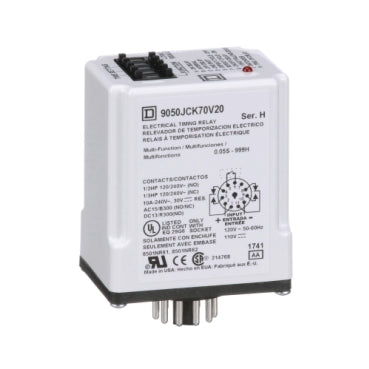

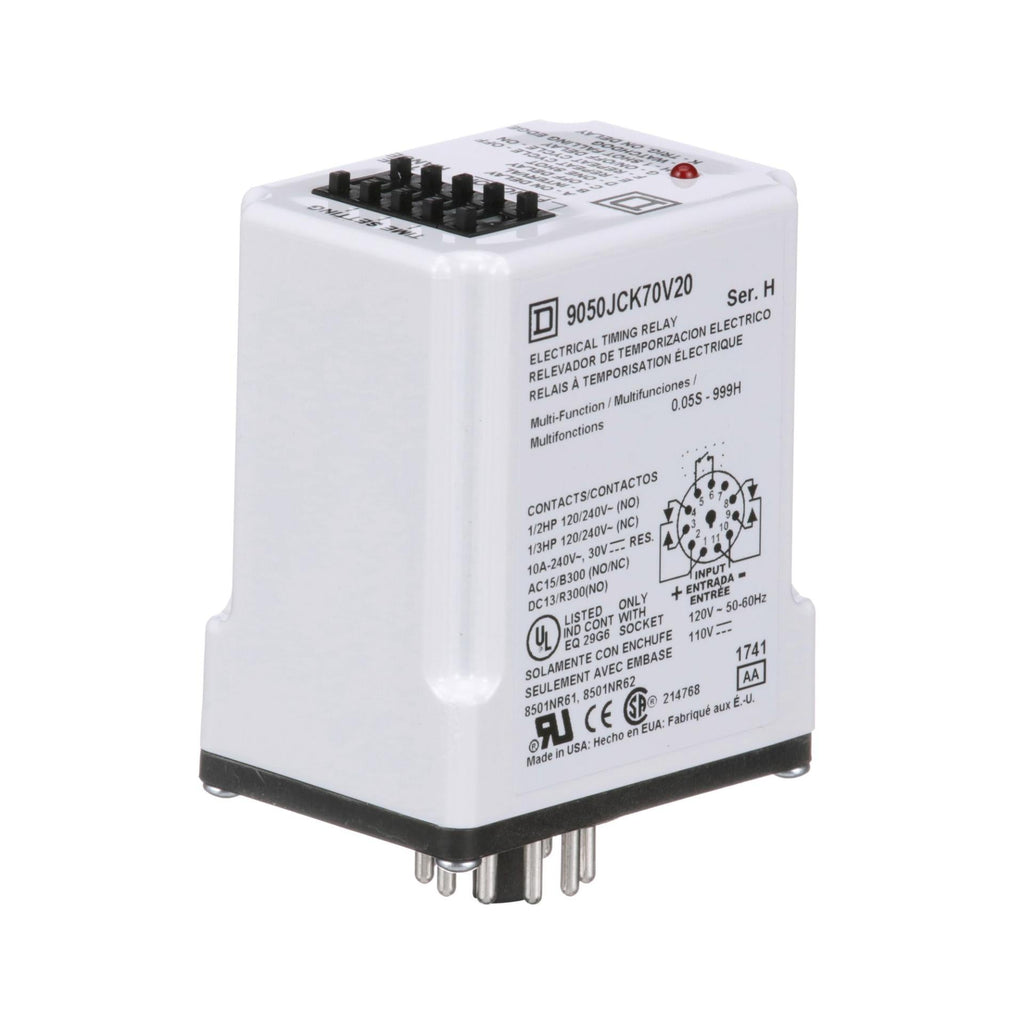

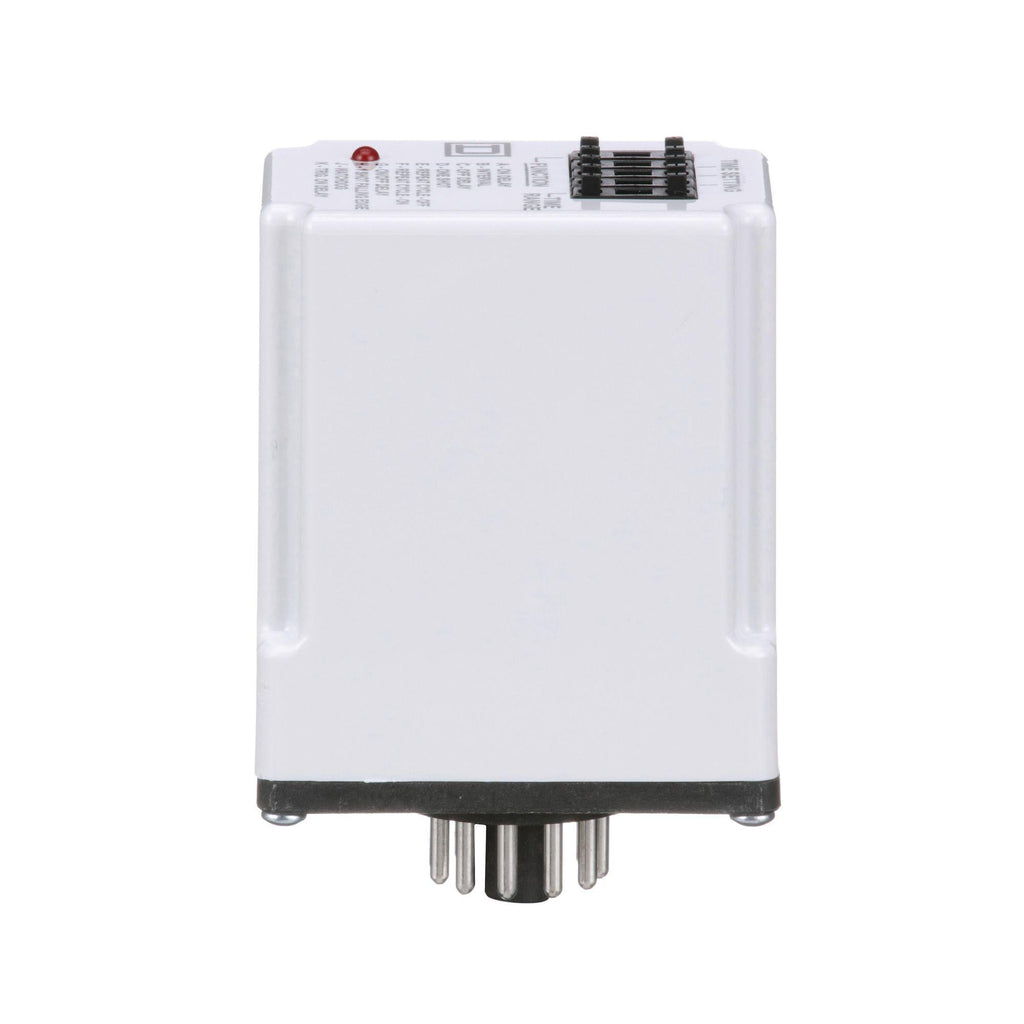

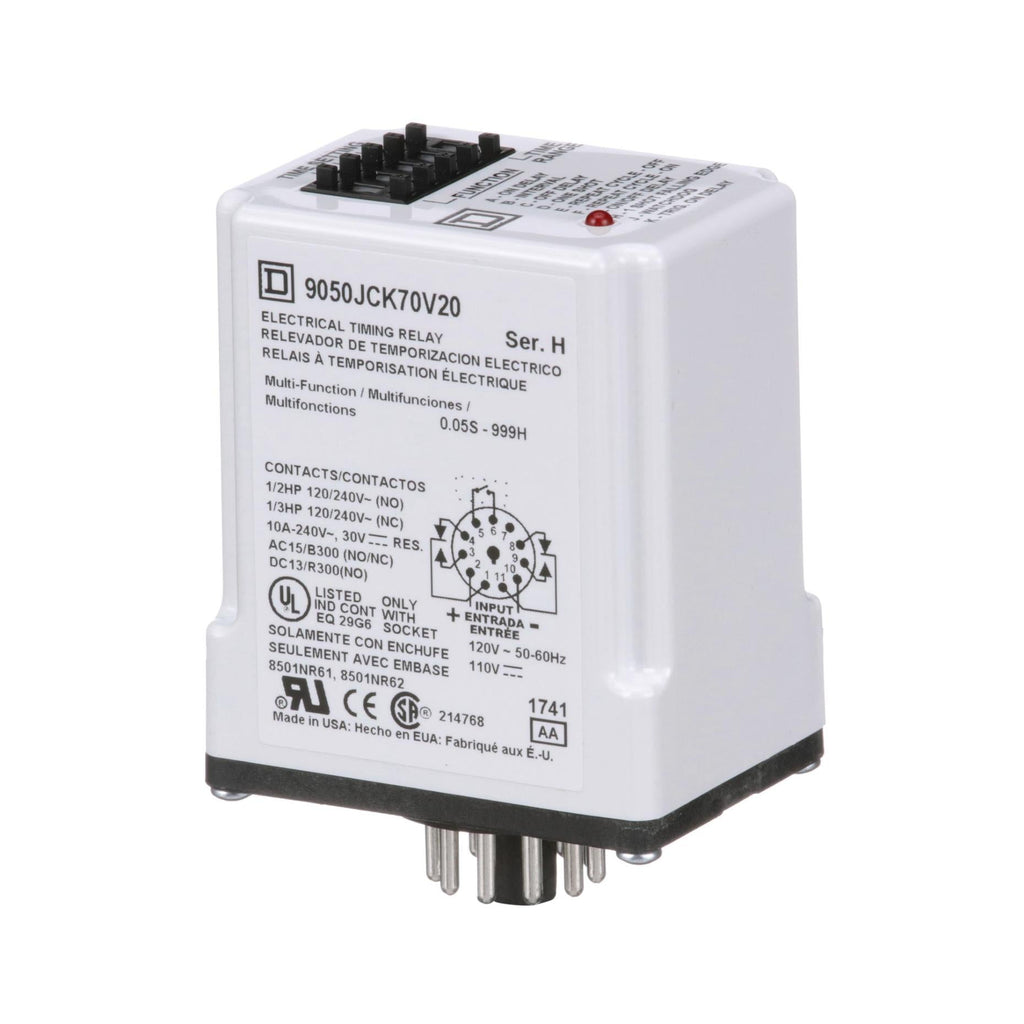

9050JCK70V20 is a Square D multifunction programmable timing relay designed for motor control applications.This plug-in timer relay features a DPDT contact configuration rated for 10 amperes resistive at 120 VAC, 240 VAC, and 30 VDC, with a timing range adjustable from 0.5 seconds to 999 hours. It operates on 120 VAC or 110 VDC power and plugs into an 8501NR61 or 8501NR62 relay socket, which can be mounted on a 35 mm DIN rail or panel. The relay is UL listed and CSA certified when used with the proper socket.

Key Specifications
• Type: JCK Plug-In Multifunction Timing Relay
• Contact Configuration: DPDT (Double Pole Double Throw)
• Contact Rating: 10A resistive at 120/240 VAC, 30 VDC
• Inductive Rating: 3A at 120/240 VAC, 30 VDC
• Horsepower Rating: 1/3 HP NC, 1/2 HP NO at 120/240 VAC
• Timing Range: 0.5 seconds to 999 hours, programmable
• Operating Voltage: 120 VAC / 110 VDC
• Mounting: Plugs into 8501NR61 or 8501NR62 relay socket
• Mounting Options: 35 mm DIN rail or panel mount via socket
• Certifications: UL Listed, CSA Certified
• Dimensions: 3.58 in depth, 1.73 in width, 2.36 in height
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9050JCK70V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Timers
• Type : 9050JCK



Product Data

• UPC : 785901053880
• GTIN : 00785901053880
• Country of Origin : United States
• Dimensions : Depth 3.58 in (91 mm) Width 1.73 in (44 mm) Height 2.36 in (60 mm)
• Weight : 0.28
• Certification : CE Certified, CSA Certified, UL Listed, UL Recognized
