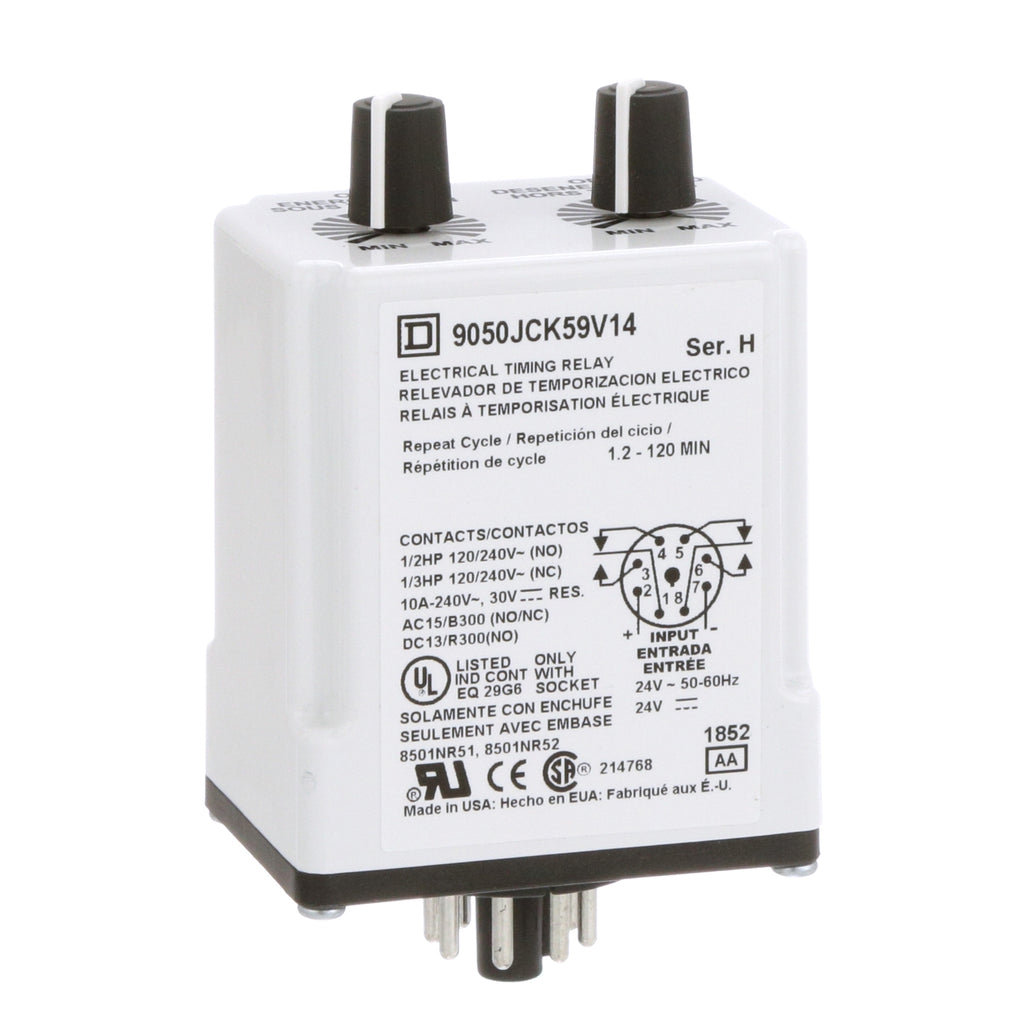

9050JCK59V14 - Square D 10A 240VAC DPDT Timer Relay Repeat Cycle 1.2-120 Min Plug-in Socket Mount

9050JCK59V14

9050JCK59V14 is a Square D timer relay designed for repeat cycle timing with a range of 1.2 to 120 minutes and a 10 ampere rating at 240 VAC.

This plug-in timer relay features a DPDT (double pole double throw) contact configuration with 2 normally open and 2 normally closed silver nickel contacts. It operates on 24 VAC/DC control voltage and is mounted via an 8-pin plug-in socket. The relay supports a maximum switching capacity of 10A at 240V AC and complies with UL, CSA, and CE certifications. It is part of the Square D 9050JCK series, suitable for industrial timing applications requiring reliable repeat cycle operation.

Key Specifications
• Amperage: 10A
• Voltage: 240 VAC control voltage, 24 VAC/DC coil voltage
• Poles: DPDT (2 NO + 2 NC contacts)
• Mounting Type: Plug-in socket, 8-pin terminal
• Timing Range: Repeat cycle 1.2 to 120 minutes
• Contact Material: Silver nickel
• Certifications: UL, CSA, CE approved
• Series/Frame: 9050JCK
• Interrupt Rating: Suitable for 1/2 HP at 240V AC, 1/3 HP at 120V AC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9050JCK59V14
• Manufacturer : Schneider Electric
• Brand : Square D

Product Data

• GTIN : 00785901837701
• Weight : 5.19
