Product Info
- Manufacturer:Schneider Electric
Description
9050JCK55V36

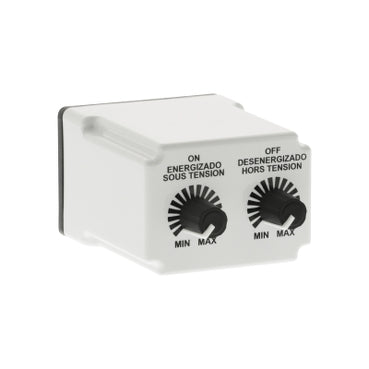

9050JCK55V36 is a plug-in timer relay with repeat cycle timing mode, designed for industrial control applications. This rugged NEMA timer is easy to set up and install for manufacturing, conveyance, and other industries.Featuring a repeat cycle timing mode, the 9050JCK55V36 offers a timing range of 1.8 to 180 seconds with a 12 VAC/DC supply voltage. The timer has a DPDT switch function with 2 NO and 2 NC contacts, constructed with silver nickel contact material. It is rated for 10 A current and 240 VAC maximum switching voltage. The unit mounts on a socket and uses tubular pins for secure connection.
- Part Number: 9050JCK55V36
- Manufacturer: Schneider Electric
- Product Type: Plug-In Timer
- Timing Mode: Repeat Cycle
- Timing Range: 1.8 to 180 seconds
- Supply Voltage: 12 VAC/DC
- Current Rating: 10 A
- Switch Function: DPDT
- Contact Composition: 2 NO + 2 NC
- Contact Material: Silver Nickel
- Maximum Switching Voltage: 240 VAC
- Mounting Type: Socket
- Pin Shape: Tubular
- Certifications: CE, RoHS, UL Listed, UL Recognized
- Ambient Temperature Range: -18 to 150 °F
Specifications
- Part Number: 9050JCK55V36
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- Country of Origin : United States
- Weight : 5.19
