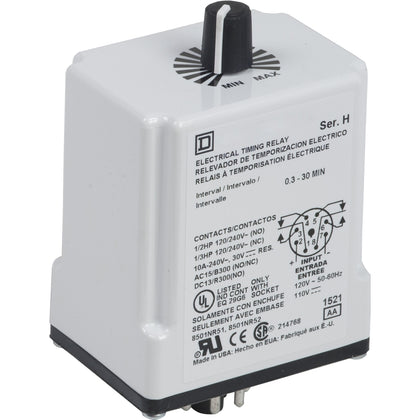

9050JCK34V14 - Square D Plug-In Timer Relay 24VAC/DC 10A DPDT

9050JCK34V14

9050JCK34V14 is a Square D plug-in timer relay designed for industrial motor control and automation applications. This compact, socket-mounted timing device provides reliable interval timing functionality in control circuits and panel installations.Technical Description: The 9050JCK34V14 features a timing range of 1.2 to 120 seconds with dual-pole, double-throw (DPDT) contact configuration. It operates on 24 VAC or 24 VDC supply voltage and delivers a 10 ampere current rating at resistive loads. The device consumes 2 VA of power and is housed in a tubular enclosure measuring 43 mm width by 104 mm depth by 61 mm height. Its IP20 rating provides standard protection for indoor control environments.Key Specifications

• Part Number: 9050JCK34V14
• Manufacturer: Square D
• Product Type: Plug-In Timer Relay
• Supply Voltage: 24 VAC/VDC
• Timing Range: 1.2 to 120 seconds
• Current Rating: 10 A
• Switch Function: DPDT (2 Form C)
• Power Consumption: 2 VA
• Enclosure Dimensions: 43 mm W x 104 mm D x 61 mm H
• Protection Rating: IP20
• Mounting: Socket-Mounted Plug-In

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9050JCK34V14
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 4000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Draw-Out
• Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
• Protection : Solid State

Product Data

• Country of Origin : United States
• Weight : 1
