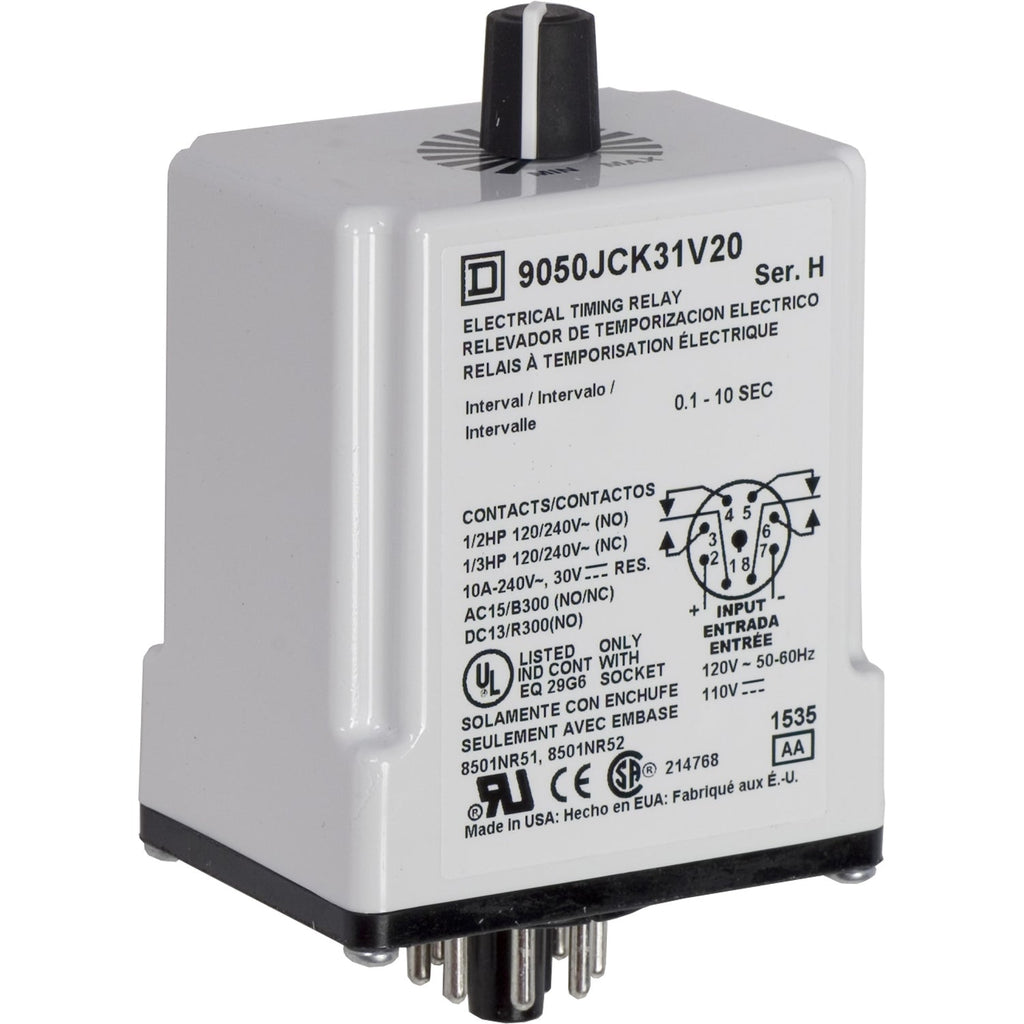

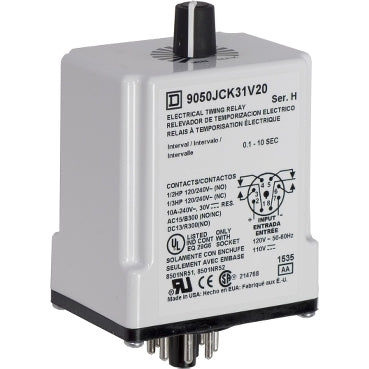

9050JCK31V20 - Square D Timing Relay Type JCK Plug-In 0.1-10 Seconds 10A 240VAC

9050JCK31V20

9050JCK31V20 is a plug-in timing relay designed to provide low-cost interval timing control in industrial automation applications. This Type JCK relay features adjustable time delay from 0.1 to 10 seconds with DPDT (Double Pole Double Throw) contact configuration, making it suitable for a wide range of motor control and timing circuit requirements.Key Specifications

• Part Number: 9050JCK31V20
• Manufacturer: Square D (Schneider Electric)
• Relay Type: Timing Relay, Type JCK
• Mounting: Plug-In (8-Pin Tubular Terminal)
• Time Delay Range: 0.1 to 10 seconds, adjustable
• Contact Configuration: DPDT (2 Form C)
• Contact Composition: 2 NO + 2 NC
• Contact Material: Silver nickel
• Current Rating: 10A resistive at 120VAC, 240VAC, and 30VDC; 3A inductive at 120VAC, 240VAC, and 30VDC
• Coil Voltage: 120VAC/110VDC
• Power Consumption: 2 VA
• Timing Adjustment: Knob operator
• Certifications: UL, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9050JCK31V20
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Part And Accessory
• Type : 9050JCK

Product Data

• UPC : 785901032809
• GTIN : 00785901032809
• Country of Origin : United States
• Dimensions : 1.69 in (43 mm) x 2.40 in (61 mm)
• Weight : 0.26
• Certification : CE Certified, CSA Certified, UL Listed, UL Recognized
