Description

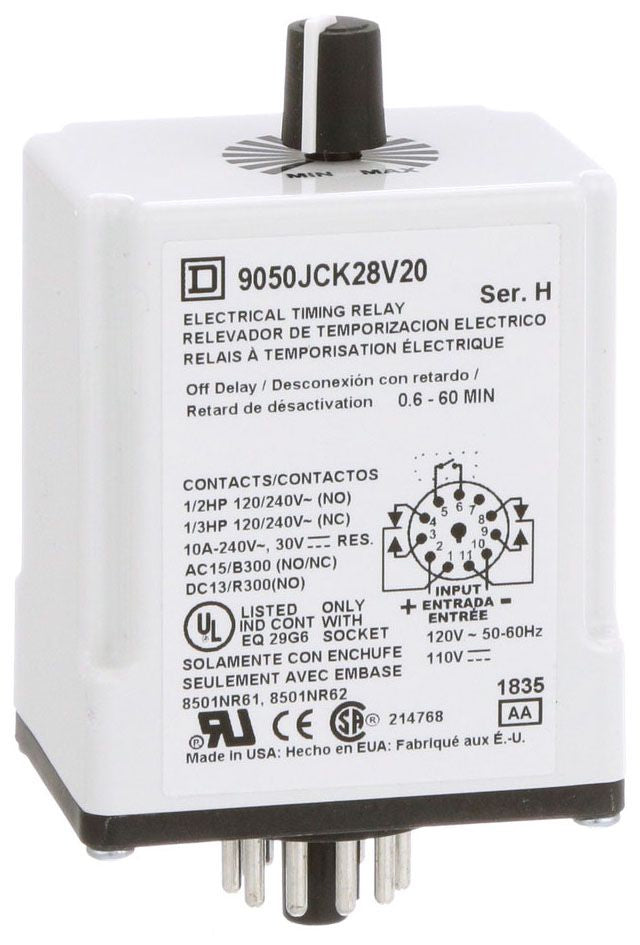

9050JCK28V20
9050JCK28V20 is a Square D off-delay timing relay with adjustable time settings from 0.6 to 60 minutes and a 10 amp rating at 240 VAC.
This plug-in Type JCK relay features a 2 Form C (DPDT) contact configuration, supports coil voltages of 120 VAC and 110 VDC, and mounts via socket. It offers tubular electrical connections, operates within a temperature range of -18 to 150 degrees Fahrenheit, and measures 2.4 in H x 1.69 in W x 4.09 in D. This relay is mercury-free and designed for reliable motor control applications.
- Key Specifications
- Amperage Rating: 10 A
- Voltage Rating: 240 VAC maximum switching voltage
- Coil Voltage: 120 VAC, 110 VDC
- Contact Form: 2NO-2NC (2 Form C) DPDT
- Time Setting Range: 0.6 to 60 minutes adjustable
- Mounting Type: Socket mount
- Number of Pins: 11
- Operation Mode: Off-Delay
- Dimensions: 2.4 in H x 1.69 in W x 4.09 in D
- Temperature Rating: -18 to 150 °F
- Mercury Free: Yes
- Series: 9050JCK
- Part Number: 9050JCK28V20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Timers
- Family : 9050JCK
- Voltage : 240 240
- UPC : 785901056607
- GTIN : 785901056607
- Country of Origin : United States
- Dimensions : 2.4 in H x 1.69 in W x 4.09 in D 43 mm W x 104 mm D x 61 mm H
- Weight : 0.26 lb
- Certification : UL Recognized || CE || UL Listed
