Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Timers
Description
9050JCK15V20

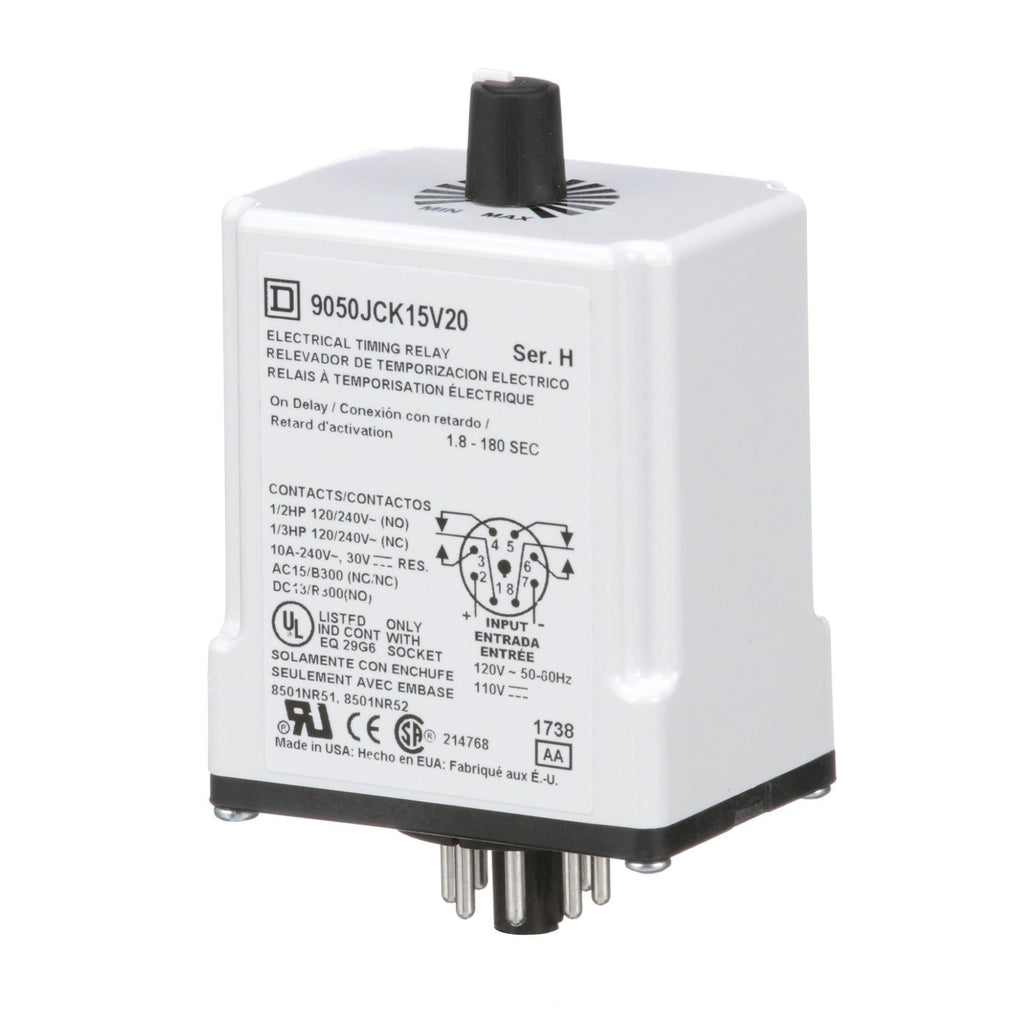

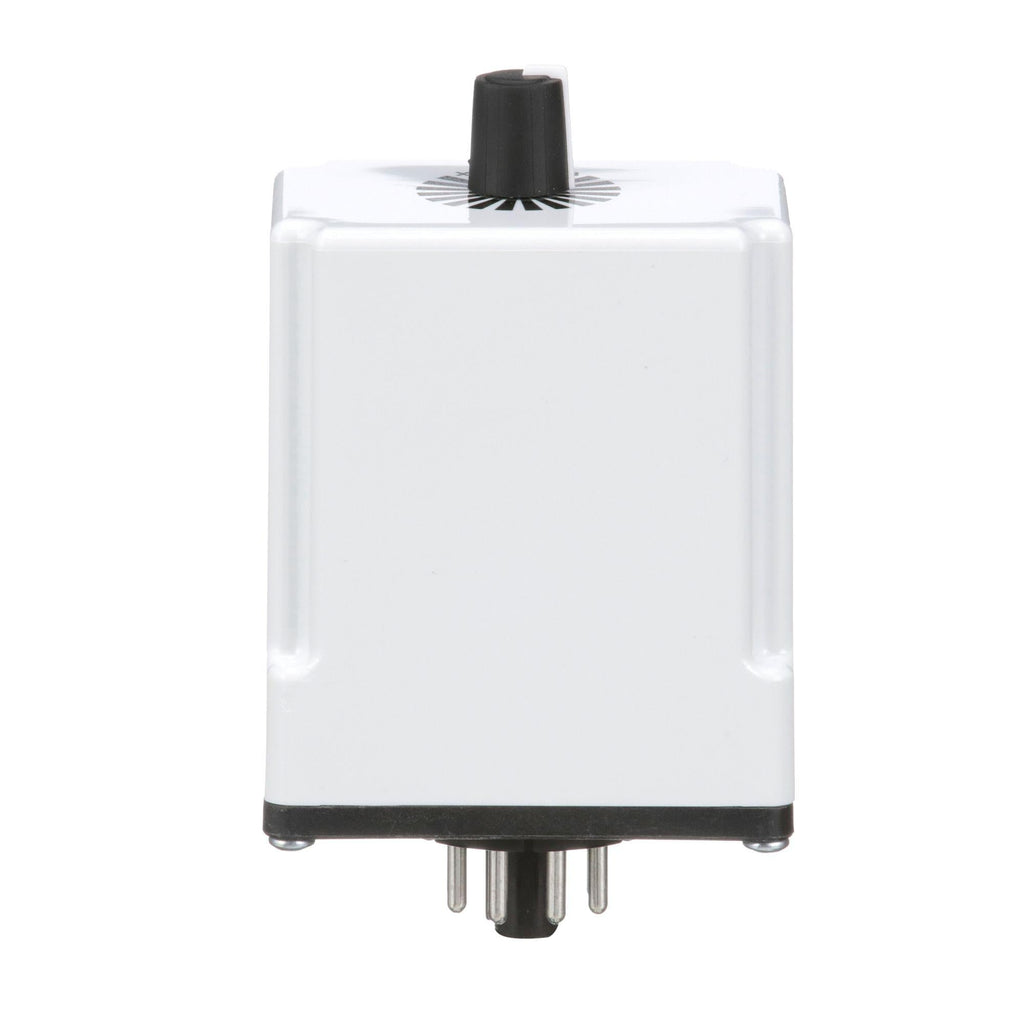

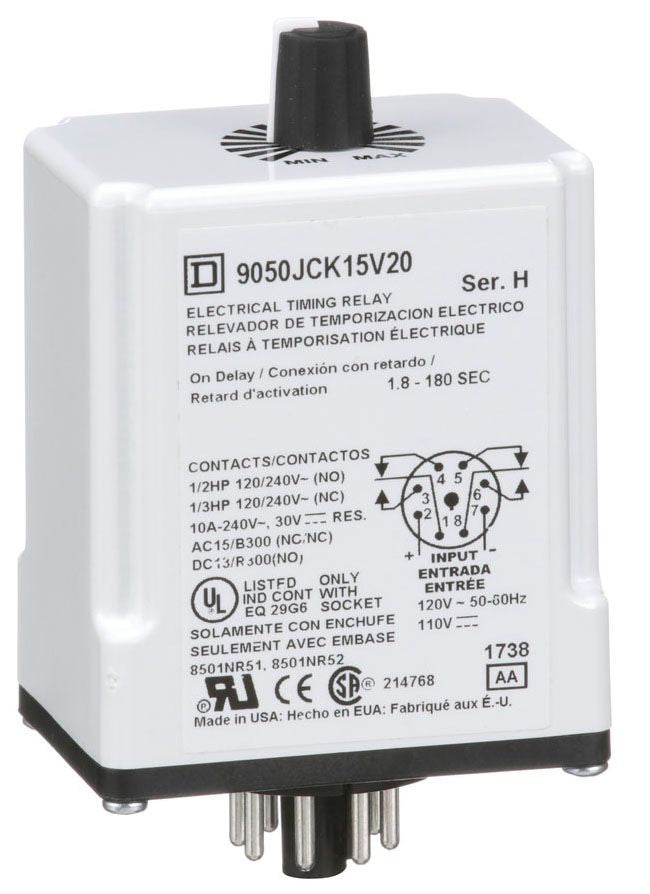

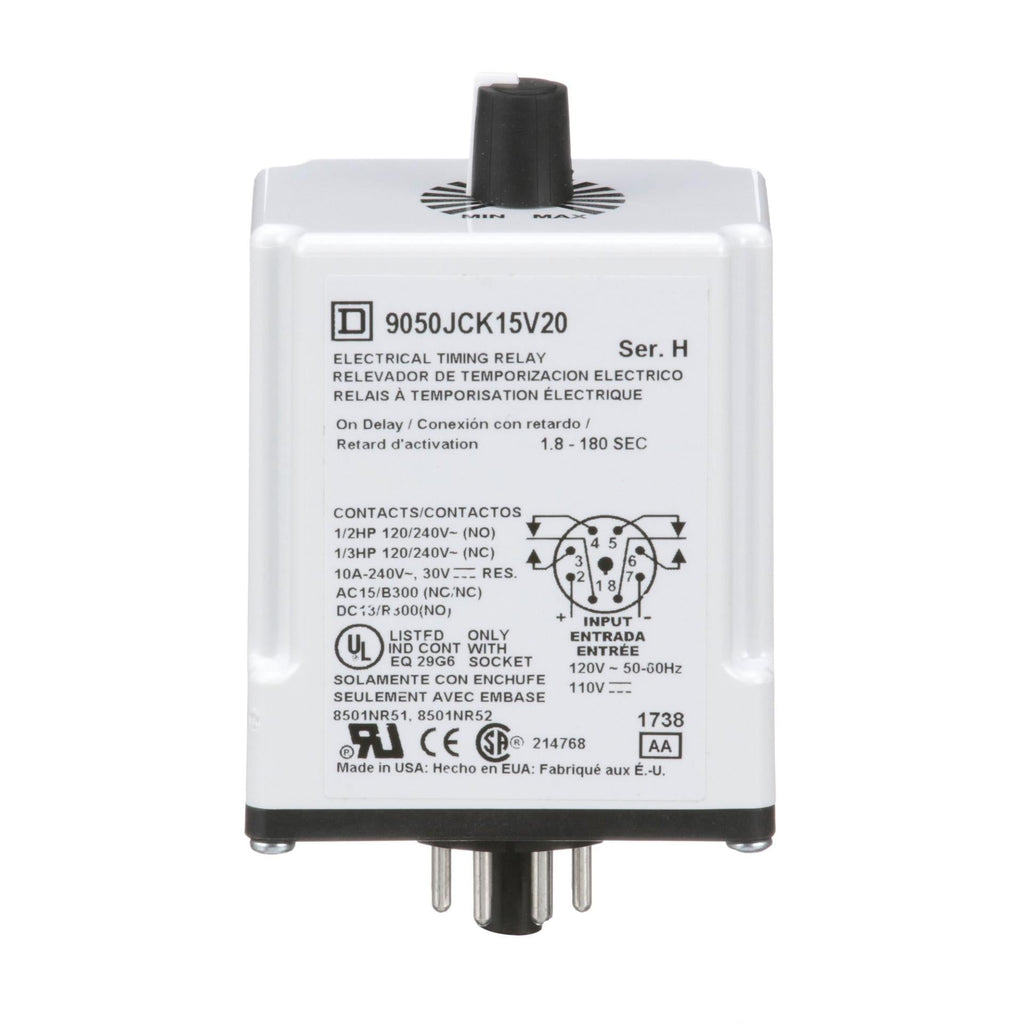

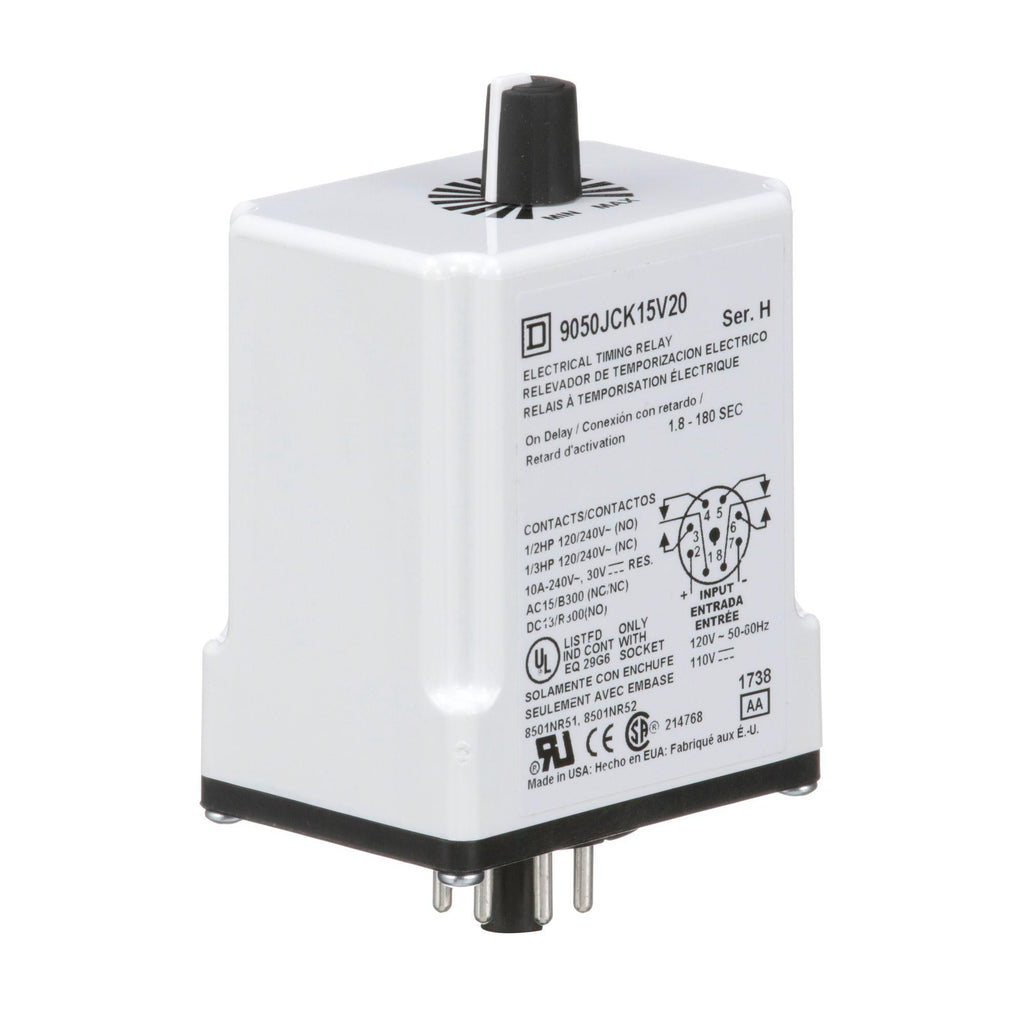

9050JCK15V20 is a Square D JCK Series plug-in timer relay designed for motor control applications requiring precise on-delay timing. This relay features a wide timing range and robust contact ratings for reliable operation in industrial environments. The 9050JCK15V20 offers easy installation with its plug-in mounting design and provides two Form C (DPDT) contacts for versatile control circuit integration. The relay is suitable for use with both AC and DC control voltages, making it adaptable for a variety of control panel configurations.
- Part Number: 9050JCK15V20
- Manufacturer: Square D
- Series: JCK
- Mounting Type: Plug-In
- Timing Range: 1.8 to 180 seconds
- Contact Form: 2 Form C (DPDT)
- Operating Voltage: 120 VAC, 110 VDC
- Resistive Contact Rating: 10A at 120/240 VAC, 30 VDC
- Inductive Contact Rating: 3A at 120/240 VAC, 30 VDC
- NC Contact HP Rating: 1/3 HP
- Terminal Type: 8-pin plug-in
- Application: Motor Control, Industrial Timing
Specifications
- Part Number: 9050JCK15V20
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Timers
- Family : 9050
- Voltage : 240 240
Product Data
- UPC : 785901032588
- Country of Origin : United States
- Dimensions : 1.69 in W x 4.09 in D x 2.4 in H 43 mm W x 104 mm D x 61 mm H
- Weight : 0.27 lb
- Certification : CE Certified, CSA Certified, UL Listed, UL Recognized
