2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
Description
9038CG36L

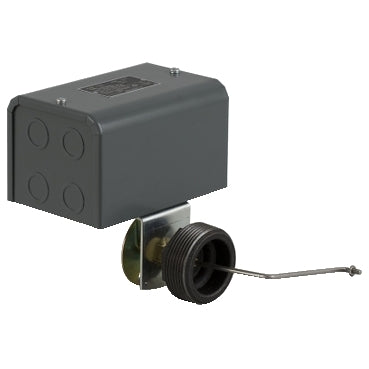

9038CG36L is a Schneider Electric float switch designed for reliable level control in industrial and commercial applications. This device features a 2 pole, 4NO contact configuration and is rated for 575 VAC, making it suitable for demanding environments. The 9038CG36L is constructed with painted cold rolled steel and is NEMA 1 rated for indoor use. It is designed for bushing mounting and is suitable for use with fresh water, corrosive fluids, hydraulic oil, and sea water. The switch operates within a wide temperature range and provides dependable performance in closed tank level monitoring.
- Part Number: 9038CG36L
- Manufacturer: Schneider Electric
- Contact Configuration: 2 Pole, 4NO
- Voltage Rating: 575 VAC
- Mounting Type: Bushing Mount
- Enclosure Rating: NEMA 1
- Material: Painted Cold Rolled Steel
- Application: Level Control for Closed Tanks
- Operating Temperature: -22 to 220°F
- Compatible Fluids: Fresh Water, Corrosive Fluids, Hydraulic Oil, Sea Water
- Series: Class 9038 Type C
- Warranty: 18 Months
Specifications
- Part Number: 9038CG36L
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- Weight : 5.19
