Product Info
- Manufacturer:Telemecanique
- Sub-Category:Level or float switch
Description
9038CG36

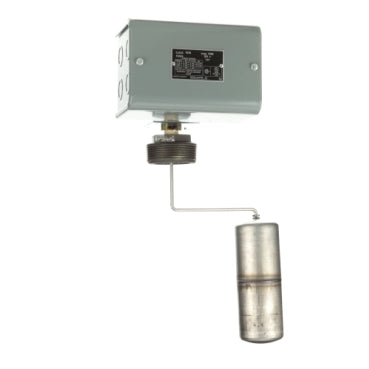

9038CG36 is a mechanical alternator float switch by Telemecanique designed for liquid level control in closed tanks.
This float switch features a mechanical alternator design with 4 normally closed (NC) double-pole single-throw (DPST) contacts, suitable for 575VAC operation and 1HP motor control. It has a NEMA 1 enclosure rating and a screw-in bushing mounting type, making it ideal for pressure controlling or monitoring applications such as water pumps, compressors, and agricultural irrigation systems. The device is constructed with a painted cold-rolled steel body and offers adjustable float settings for precise operation.
- Key Specifications
- Part Number: 9038CG36
- Manufacturer: Telemecanique
- Type: Mechanical Alternator Float Switch
- Voltage Rating: 575VAC
- Contact Configuration: 4 NC DPST
- Mounting Type: Screw-In Bushing
- Enclosure Rating: NEMA 1
- Body Material: Painted Cold-Rolled Steel
- Adjustable Float Range: Approximately 4.75 to 9.25 inches
- Application: Closed Tank Liquid Level Control
- Motor HP Rating: 1HP
- Part Number: 9038CG36
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Level or float switch
- Family : 9038
- UPC : 785901064442
- GTIN : 00785901000000
- Weight : 9
