Product Info
- Manufacturer:Telemecanique
- Sub-Category:Level or float switch
Description
9038CG32

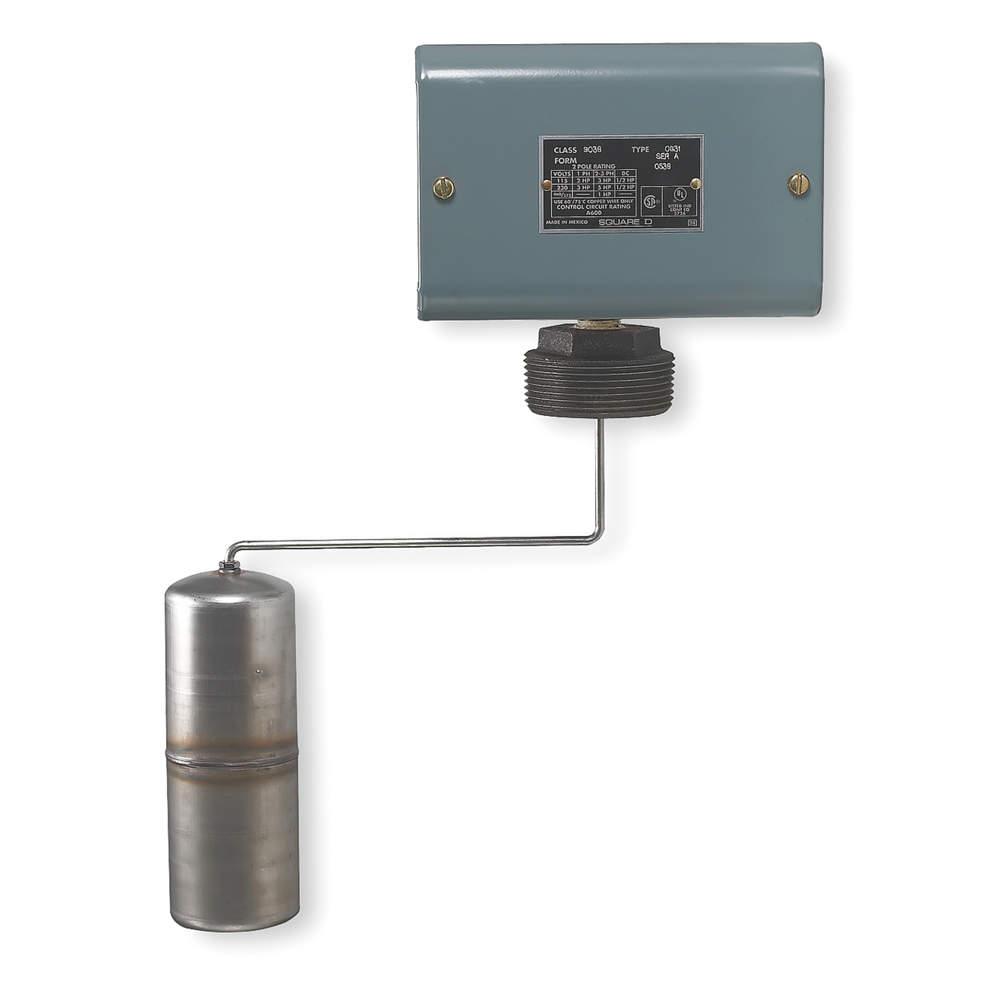

9038CG32 is a mechanical alternator float switch designed for closed tank applications with screw-in mounting and 4 normally closed (NC) DPST double break contacts.
This Telemecanique Sensors 9038 Series device features a painted cold-rolled steel body, 4 NC snap action DPST-DB contacts (Form YY), and is rated for 575 VAC operation. It is UL and CSA approved, suitable for controlling fluids in closed tanks, and mounts via a screw-in bushing. The switch is designed for reliable operation in fresh water, corrosive fluids, hydraulic oil, and sea water environments with a NEMA 1 enclosure rating.
- Key Specifications
- Part Number: 9038CG32
- Manufacturer: Telemecanique
- Series: 9038C
- Contact Configuration: 4 NC, DPST-DB (Form YY)
- Mounting Type: Screw-in bushing
- Body Material: Painted cold-rolled steel
- Voltage Rating: 575 VAC
- Enclosure Rating: NEMA 1
- Approvals: UL 508, CSA
- Application: Closed tank fluid level control
- Contact Form: Snap action
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 9038CG32
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Level or float switch
- Family : 9038
Product Data
- UPC : 785901064466
- GTIN : 00785901064466
- Weight : 9
