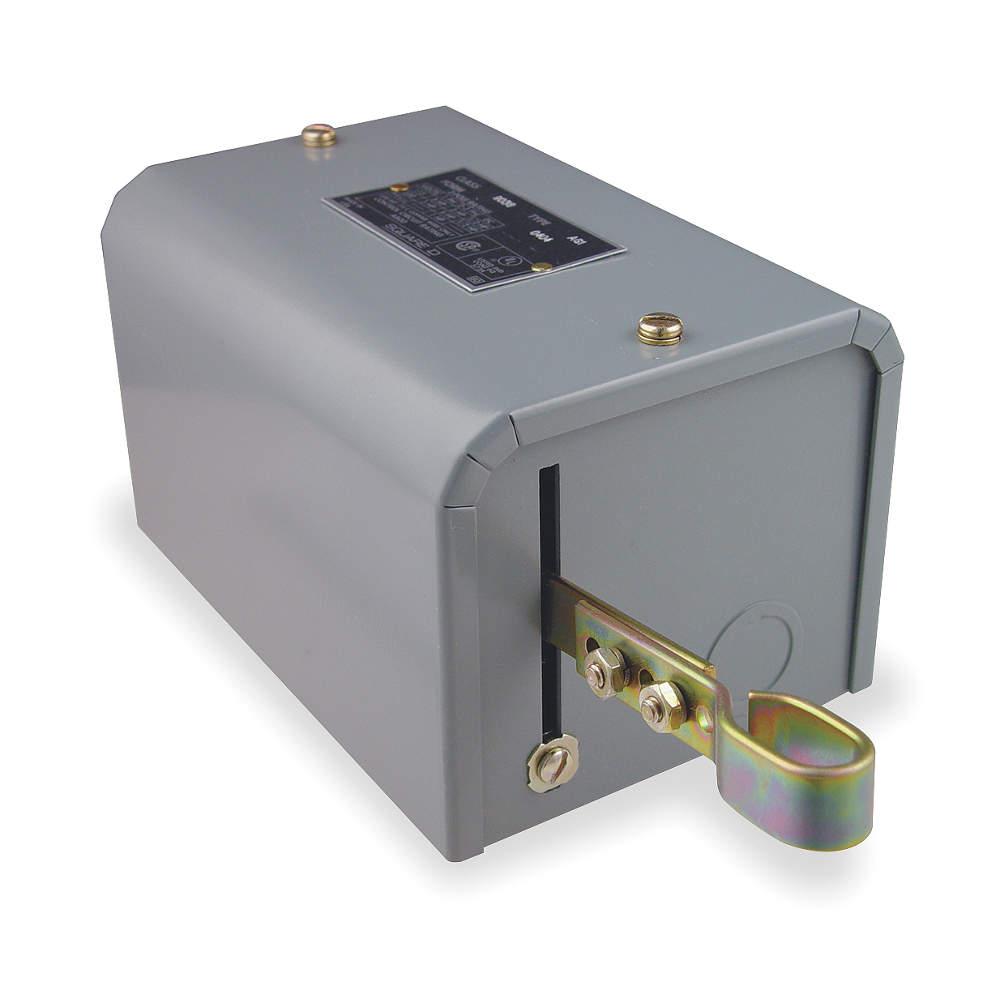

9038AG1 - Telemecanique 575V Mechanical Alternator Float Switch, DPST-4NC, NEMA 1, Pedestal Mount

9038AG1

9038AG1 is a Telemecanique mechanical alternator float switch designed for open tank applications with a 575V rating and DPST-4NC contacts.This float switch features a NEMA 1 enclosure, pedestal mounting, and is part of the 9038 series Pumptrol product line. It mechanically alternates the operation of two pumps or motors using snap action double break contacts. The device includes 4 normally closed contacts in a DPST-DB configuration and supports conduit entries for 1/2" or 3/4" conduit. It operates reliably in temperatures from -22 to 220 degrees Fahrenheit.

• Voltage: 575 V AC
• Contact Form: DPST-4NC (Double Pole Single Throw - 4 Normally Closed)
• Enclosure Type: NEMA 1
• Mounting Type: Pedestal
• Series: 9038 Pumptrol
• Device Application: Open tank mechanical alternator
• Operating Temperature: -22 to 220 °F
• Conduit Entry: 4 knock-outs for 1/2" or 3/4" conduit
• Contact Type: Snap action double break
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9038AG1
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Level or float switch
• Family : 9038
• Voltage : 575 575

Product Data

• UPC : 078590159101
• GTIN : 00785901591016
• Country of Origin : Mexico
• Dimensions : Depth 7.56 in (192 mm) Width 14.88 in (378 mm) Height 14.13 in (359 mm)
• Weight : 2.05
• Certification : UL Listed CSA Certified CSA Marked
