9037HG33 - Telemecanique Sensors Float Switch, Pumptrol, Closed Tank, 2 NC DPST-DB Contacts, Screw-In Bushing, NEMA 1

SKU: 9037HG33-New
Condition: New
Price:
$303.86
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

9037HG33 Telemecanique Pumptrol Float Switch 2 NC DPST DB Contacts NEMA 1 - Essential Electric Supply
9037HG33 - Telemecanique Sensors Float Switch, Pumptrol, Closed Tank, 2 NC DPST-DB Contacts, Screw-In Bushing, NEMA 1 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
9037HG33 Telemecanique Pumptrol Float Switch 2 NC DPST DB Contacts NEMA 1 - Essential Electric Supply
9037HG33 - Telemecanique Sensors Float Switch, Pumptrol, Closed Tank, 2 NC DPST-DB Contacts, Screw-In Bushing, NEMA 1 - Essential Electric Supply

Description

9037HG33

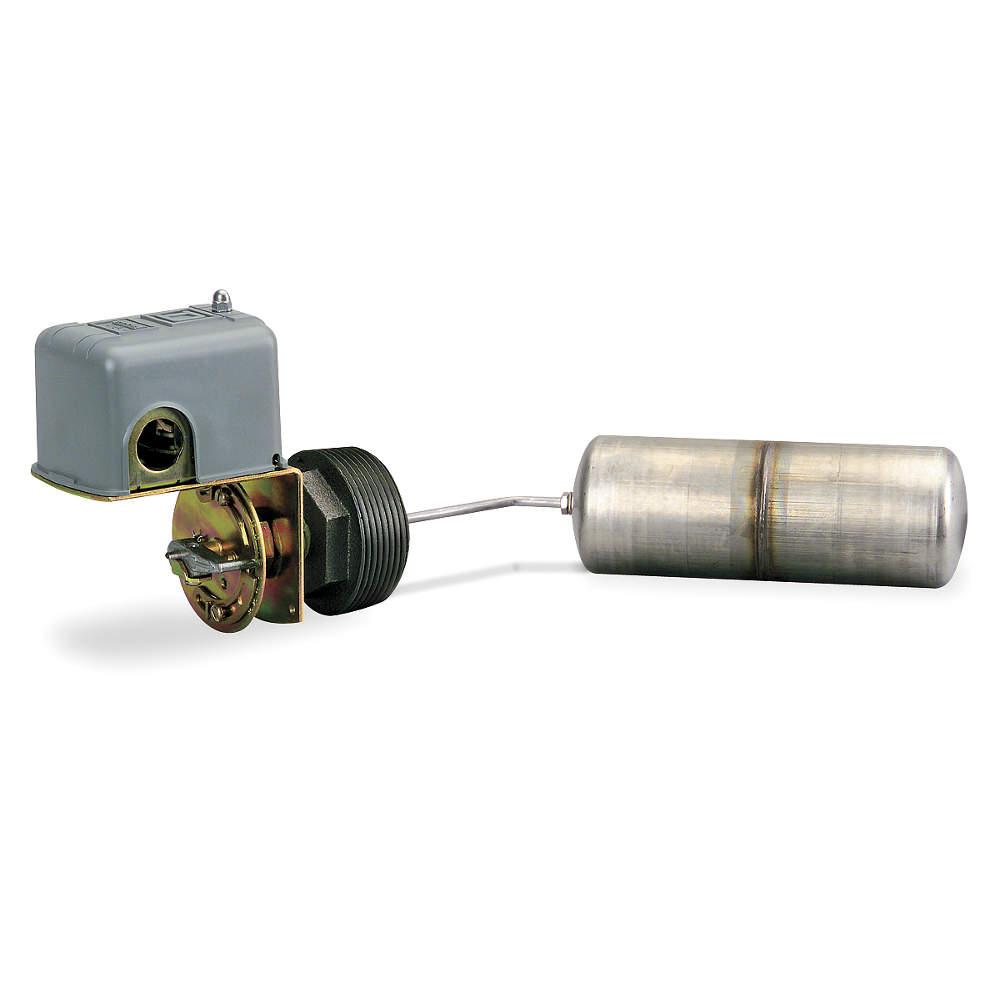

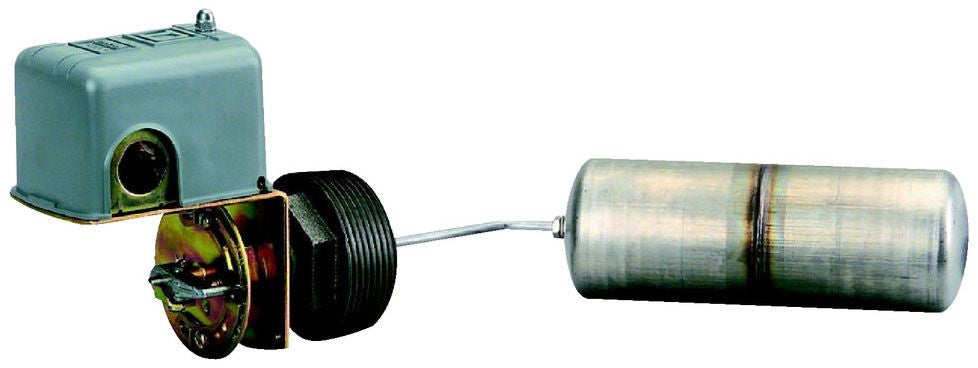

9037HG33 is a Pumptrol float switch designed for closed tank liquid level control with a screw-in bushing mounting and NEMA 1 enclosure.This float switch features 2 normally closed (NC) snap action contacts configured as DPST-DB (double pole single throw - double break) for power circuit applications. It is mounted via a screw-in bushing and includes 3 knock-outs for 1/2 inch conduit, conforming to UL 508 standards. The device is suitable for liquid media and operates reliably within a temperature range of -30°C to 93°C.
    Key Specifications
    • Manufacturer: Telemecanique Sensors
    • Part Number: 9037HG33
    • Device Type: Float Switch, Pumptrol
    • Application: Closed Tank Liquid Level Control
    • Contacts: 2 NC, Snap Action, DPST-DB (Form YY)
    • Mounting Type: Screw-In Bushing
    • Enclosure Rating: NEMA 1
    • Cable Entry: 3 Knock-Outs for 1/2 inch Conduit
    • Material: Stainless Steel Body
    • Operating Temperature: -30°C to 93°C
    • Standards: UL 508, CE Certified
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: 9037HG33
    • Manufacturer : Telemecanique
    • Brand : Telemecanique
    • Category : Sensors
    • Item Subcategory : Level or float switch
    • Family : 9037

    Product Data

    • UPC : 785901075622
    • GTIN : 785901075622
    • Weight : 4.4 lb
