Product Info
- Manufacturer:Square D
- Sub-Category:Float Switches
Description
9037HG31

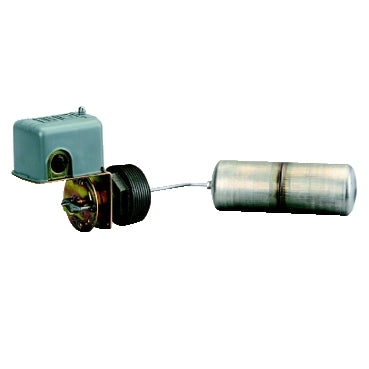

9037HG31 is a Square D Pumptrol float switch designed for closed tank liquid level control applications. This device features a 2NC DPST contact configuration and is built for reliable operation in demanding environments. The 9037HG31 float switch is constructed with a 304 stainless steel float and offers a screw-in bushing for secure mounting. It is rated for 575VAC and 2HP, making it suitable for a variety of industrial and commercial uses. The switch is designed for adjustable closed tank level control and features a 10 AWG screw clamp connection for easy wiring.
- Manufacturer: Square D
- Series: Pumptrol
- Float Type: 304 Stainless Steel
- Mounting Type: Screw-In Bushing
- Application: Closed Tank Level Control
- Contact Configuration: 2NC DPST
- Operating Voltage: 575VAC
- Horsepower Rating: 2HP
- Temperature Range: -22 to 220°F
- Standards: UL 508, CE
- Connection Type: 10 AWG Screw Clamp
- Float Size: 2.58" Dia x 7.13"
Specifications
- Part Number: 9037HG31
- Manufacturer : Square D
- Brand : Square D
- Category : Automation
- Item Subcategory : Float Switches
- Type : 9037H
- Nema Rating : Nema 1
Product Data
- UPC : 78590107552
- GTIN : 78590107552
- Weight : 2.1
