2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Telemecanique
- Sub-Category:Level or float switch
Description
9037EG8

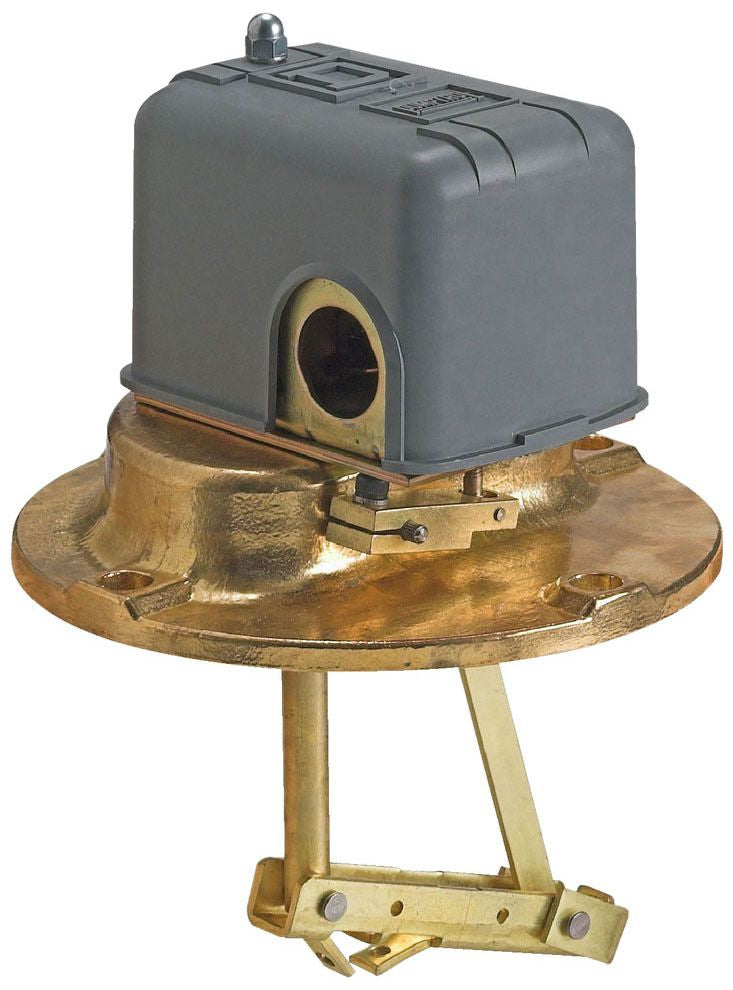

9037EG8 is a Telemecanique Pumptrol Float Switch designed for closed tank liquid level control applications. This switch features a DPST-NC contact configuration and is built for reliable operation in demanding environments. The 9037EG8 utilizes a flange mounting system for secure installation and features a polypropylene housing for durability. It is rated for up to 575 VAC and is suitable for use in NEMA 1 enclosures. The snap-action contacts provide dependable switching performance for pump control and liquid level monitoring.
- Part Number: 9037EG8
- Manufacturer: Telemecanique
- Series: Pumptrol
- Mounting Type: Flange
- Enclosure Rating: NEMA 1
- Level Switch Type: Float Switch
- Contact Configuration: DPST-NC (2 NC)
- Operating Voltage: 575 VAC
- Housing Material: Polypropylene
- Operating Temperature Range: -22°F to 220°F
- Connection Type: 10 AWG screw clamp
- Application: Closed Tank
Specifications
- Part Number: 9037EG8
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Level or float switch
- Family : 9037
Product Data
- UPC : 785901485438
- GTIN : 00785901485438
- Weight : 5 lb
