Product Info
- Manufacturer:Telemecanique
- Sub-Category:Level or float switch
Description
9036GG2

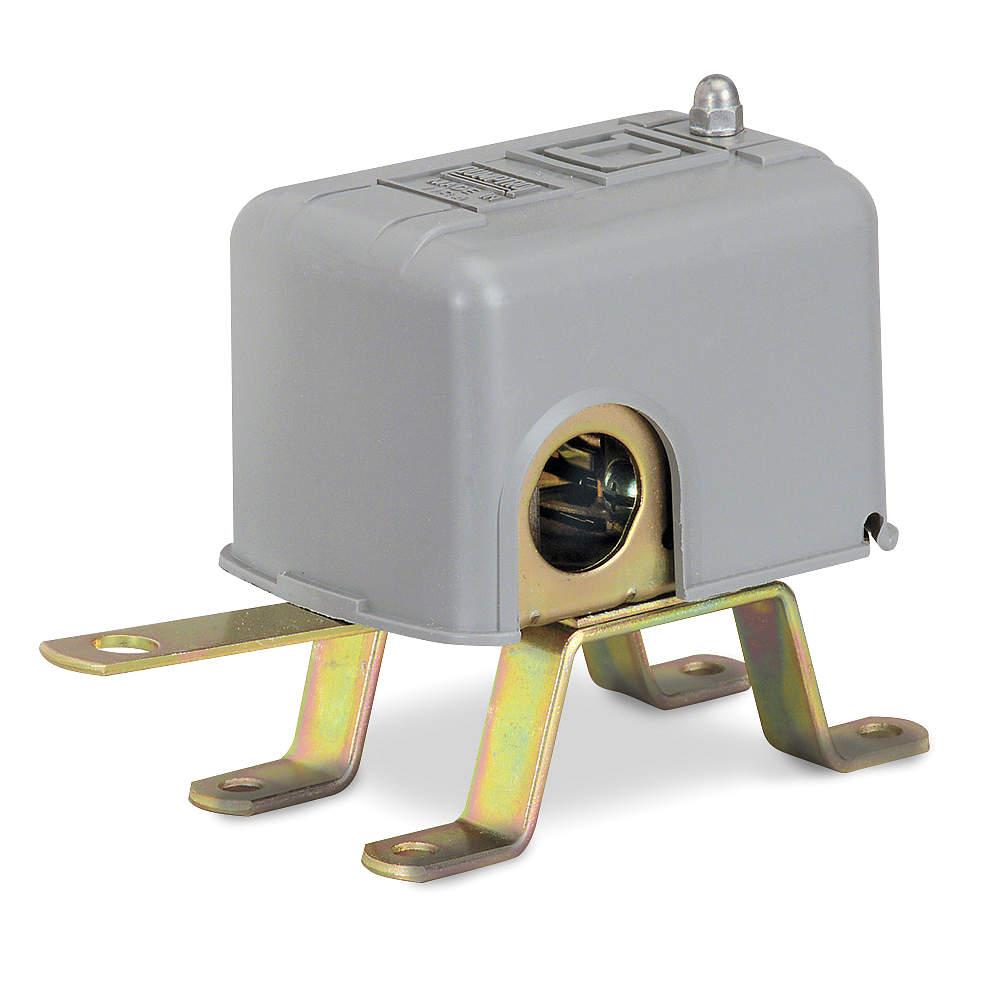

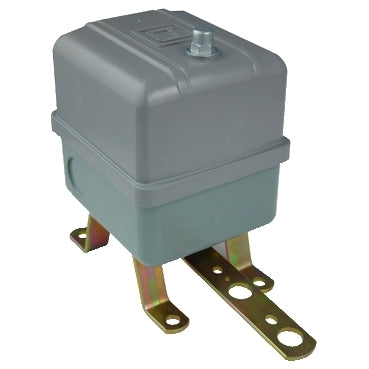

9036GG2 is a Telemecanique Sensors float switch designed for liquid level control in open tanks with a durable thermoplastic body.This float switch features a double-pole, double-throw normally closed (DPST-NC) contact configuration, rated for 575VAC and suitable for light commercial and industrial applications. It is pedestal mounted with a NEMA 1 indoor enclosure rating, supporting up to 5HP at 575VAC and 2HP at 115VAC. The device is part of the 9036G series and includes a mechanical actuator for reliable operation.
- Key Specifications
- Manufacturer: Telemecanique Sensors
- Part Number: 9036GG2
- Series: 9036G
- Contact Type: DPST-NC (Double Pole Single Throw - Normally Closed)
- Voltage Rating: 575VAC
- Horsepower Rating: 5HP at 575VAC, 2HP at 115VAC
- Mounting Type: Pedestal Mount
- Enclosure: NEMA 1 (Indoor)
- Body Material: Thermoplastic
- Application: Open Tank Liquid Level Control
- Certifications: UL 508
- Part Number: 9036GG2
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Level or float switch
- Family : 9036
- Voltage : 575 575
- UPC : 785901575429
- GTIN : 00785901575429
- Country of Origin : Mexico
- Weight : 0.23
