Product Info
- Manufacturer:Telemecanique
- Sub-Category:Level or float switch
Description
9036DR31

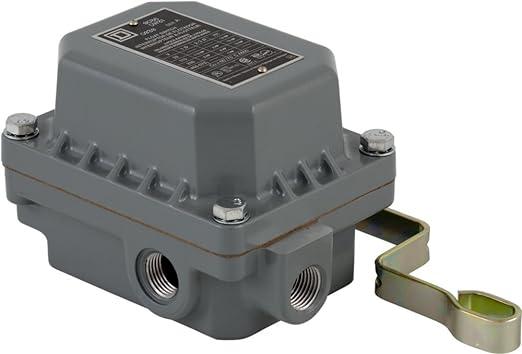

9036DR31 is a Telemecanique float switch designed for liquid level control in open tank or sump applications.This Type D standard float switch features 2 normally closed (NC) double-pole single-throw (DPST) contacts with snap action, rated for 20 amps at 575 volts AC and 3.7 kW. It has a surface mounting type with screw clamp termination and is rated for NEMA 7/9 enclosure, suitable for operating temperatures from -22 to 220 degrees Fahrenheit. The device includes a vertical float rod with 1-1/4 inch float travel and is constructed for durability in harsh environments.
- Amperage Rating: 20 A
- Voltage Rating: 575 V AC
- Contact Type: 2 NC DPST snap action
- Series: 9036 Type D
- Mounting Type: Surface (pedestal)
- Enclosure Rating: NEMA 7/9
- Connection Type: Screw Clamp
- Operating Temperature: -22 to 220 °F
- Float Travel: 1-1/4 inches
- Application: Open tank or sump liquid level control
- Country of Origin: Mexico
Specifications
- Part Number: 9036DR31
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Level or float switch
- Family : 9036
- Voltage : 575 575
Product Data
- UPC : 785901064381
- GTIN : 00785901064381
- Weight : 1
