Product Info
- Manufacturer:Telemecanique
- Sub-Category:Level or float switch
Description
9036DG2

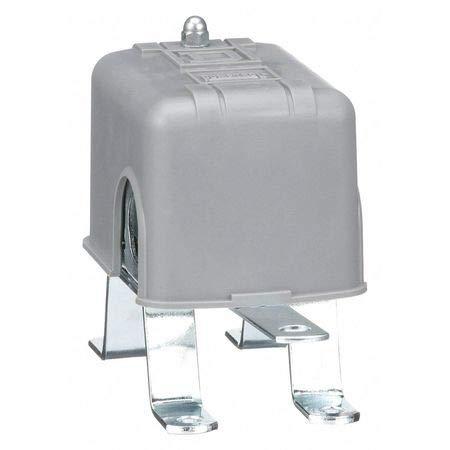

9036DG2 is a pedestal-mounted float switch from Telemecanique Sensors designed for open tank liquid level control applications. This switch features 2 normally closed (NC) DPST contacts and is constructed with a polypropylene body for durability in a variety of fluid environments. The 9036DG2 is engineered for vertical mounting and offers reliable operation with adjustable float movement. It is suitable for use with fresh water, sea water, hydraulic oil, and other fluids with a specific gravity of 0.85 or higher. The switch provides a maximum operating rate of 60 cycles per minute and is rated for 575 VAC insulation voltage.
- Part Number: 9036DG2
- Manufacturer: Telemecanique Sensors
- Series: 9036D
- Mounting Type: Pedestal Mount
- Enclosure Material: Polypropylene
- Contacts: 2 NC DPST
- Rated Insulation Voltage: 575 VAC
- Maximum Operating Rate: 60 cycles/minute
- Electrical Durability: 100 cycles at 60 cycles/minute
- Mechanical Durability: 300 cycles
- Terminal Type: Screw-clamp, 4 terminals
- Operating Position: Vertical only
Specifications
- Part Number: 9036DG2
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Level or float switch
- Family : 9036
- Voltage : 575 575
Product Data
- UPC : 785901575214
- GTIN : 00785901575214
- Country of Origin : Mexico
- Weight : 1.12
