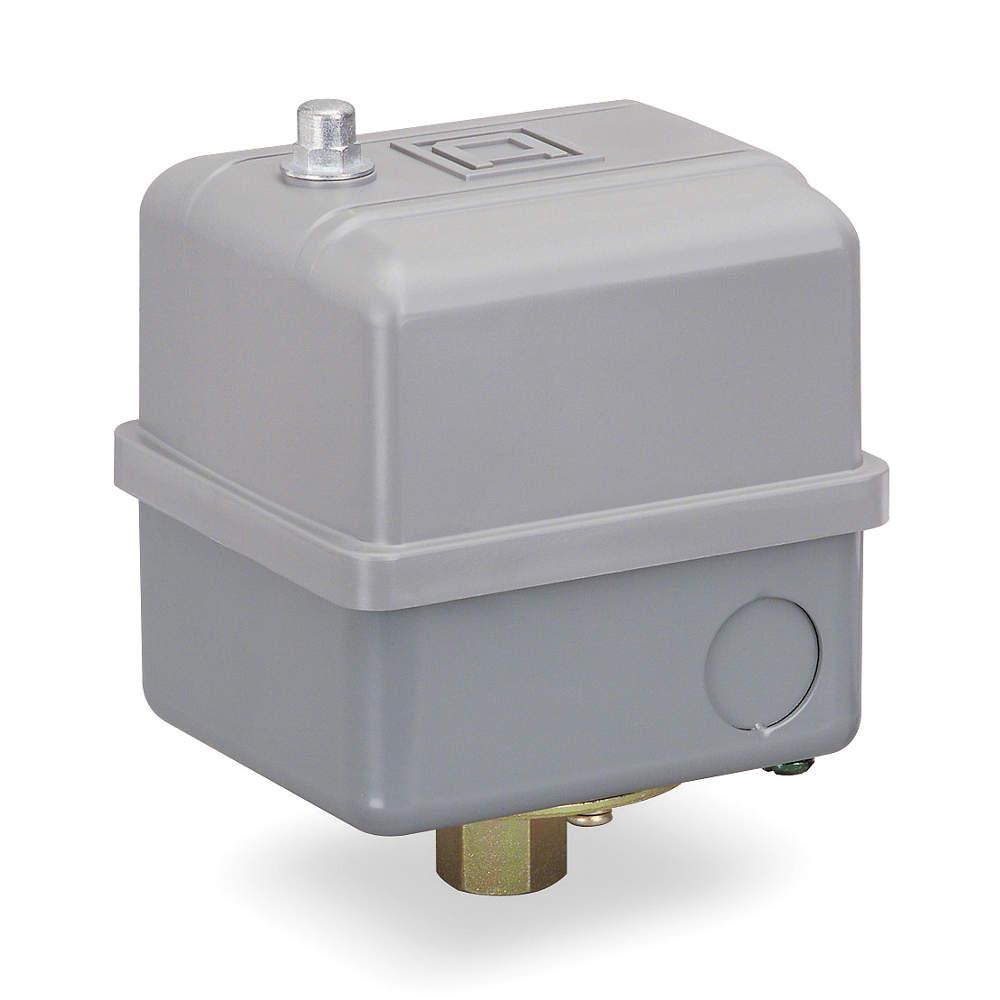

9013GHG2J57 - Telemecanique Pumptrol Electromechanical Pressure Switch 200 psi 2NC DPST 575 VAC 5 HP

9013GHG2J57

9013GHG2J57 is a Telemecanique Pumptrol electromechanical pressure switch designed for pump or compressor control applications.9013GHG2J57 features an adjustable differential type with a 200 psi pressure range and a snap-action contact configuration of 2 normally closed (2NC) contacts arranged as double-pole single-throw (DPST). It supports an AC contact rating of 10 A at 575 V and a motor load rating of 5 HP at 575 VAC. The switch uses a diaphragm actuator style and includes a 1/4 inch FNPS internal connection. It complies with CE, UL 508, and NSF ANSI 372 standards.

Key Specifications
• Pressure Range: 40 to 170 psi, max 200 psi
• Contact Configuration: 2NC, DPST snap-action
• AC Contact Rating: 10 A @ 575 V
• Motor Load Rating: 5 HP @ 575 VAC
• Actuator Style: Diaphragm
• Connection Type: 1/4 inch FNPS internal
• Adjustable Differential Type
• Standards: CE, UL 508, NSF ANSI 372

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9013GHG2J57
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Pressure switch
• Family : 9013GH

Product Data

• UPC : 785901559672
• GTIN : 00785901559672
• Country of Origin : Mexico
• Dimensions : 3.44 in W x 3.88 in D x 5.4 in H 5.4 in H x 3.44 in W x 3.88 in D
• Weight : 5.19
• Certification : ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
