Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Telemecanique
- Sub-Category
- Bolted Pressure
- Series
- Pumptrol 9013FS
- Frame
- 901
- NEMA rating
- 1
- Country of origin
- Mexico
- Compatible Frames
- PLP
- UPC
- 785901077213
- GTIN
- 00785901077213
- Dimensions
- Depth 3.76 in (95.50 mm) Width 2.78 in (70.61 mm) Height 2.8 in (71.12 mm)
- Weight
- 10
- Certification
- ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Product description & additional details
9013FSG2J21

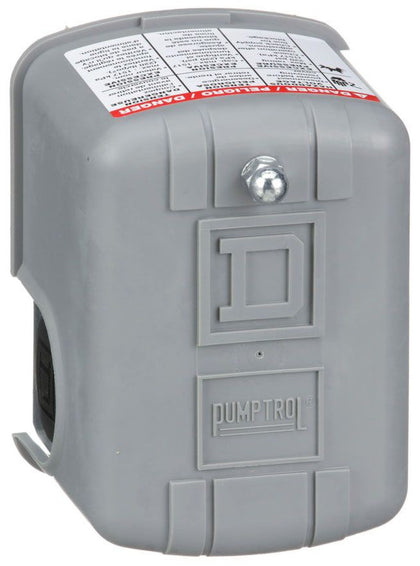

9013FSG2J21 is a Telemecanique Pumptrol water pump switch designed for reliable pressure control with an adjustable differential of 30 to 50 PSI.This standard duty diaphragm-type switch features a manual cut-out lever, supports 10 amps at 575 volts, and is rated for 1 horsepower at 120V AC and 2 horsepower at 240V AC. It includes a 1/4" FNPS connection and is suitable for water pump applications requiring precise pressure regulation.
- Adjustable pressure range: 30-50 PSI
- Current rating: 10A @ 575V
- Horsepower rating: 1 HP at 120V AC, 2 HP at 240V AC
- 1 pole configuration
- Standard duty diaphragm type
- Manual cut-out lever included
- 1/4" FNPS connection
- Series: Pumptrol 9013FS
- Mounting type: Panel or surface mount
- Interrupt rating suitable for pump control
- Certified for water pump applications
Specifications
- Part Number: 9013FSG2J21
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : Pumptrol 9013FS
- Type : 901
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 785901077213
- GTIN : 00785901077213
- Country of Origin : Mexico
- Dimensions : Depth 3.76 in (95.50 mm) Width 2.78 in (70.61 mm) Height 2.8 in (71.12 mm)
- Weight : 10
- Certification : ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
