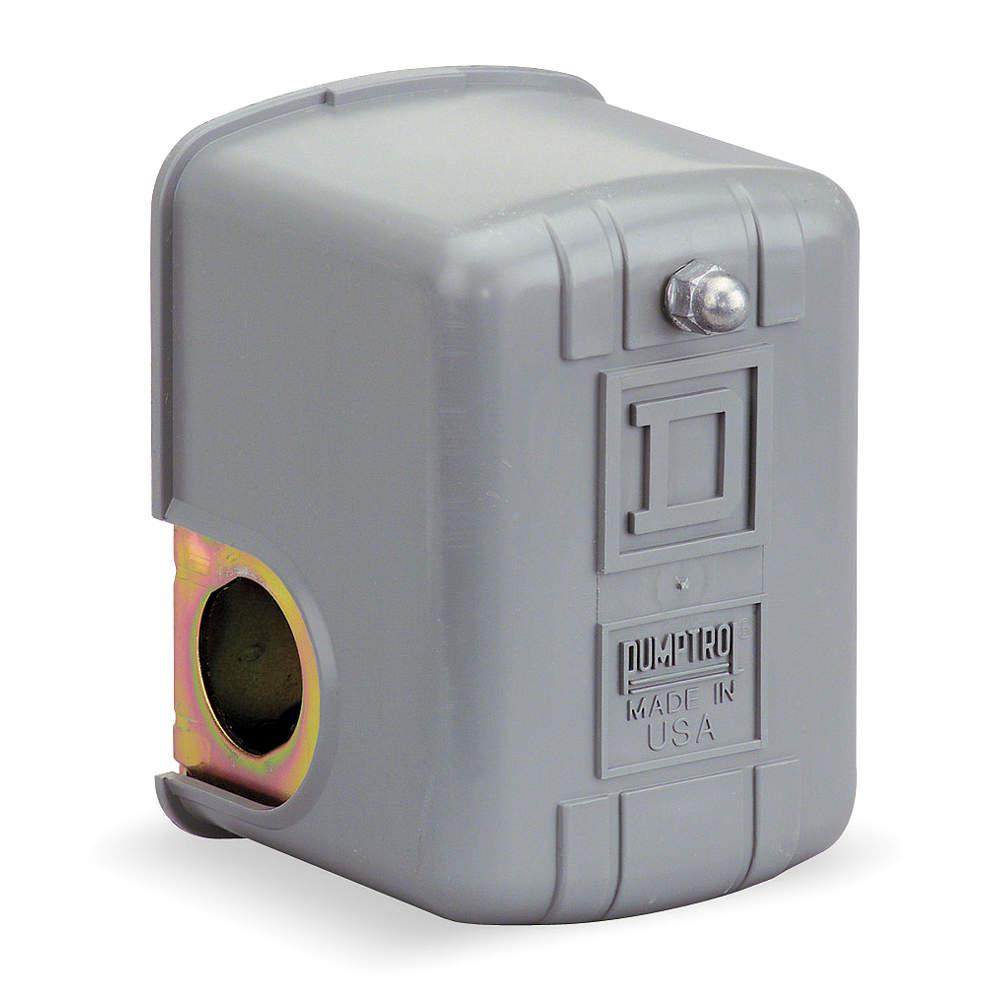

9013FHG52J59X - Schneider Electric Square D Pressure Switch 100-175 PSI 1/4" NPT 2NC Contacts NEMA 1

9013FHG52J59X

9013FHG52J59X is a Schneider Electric Square D pressure switch designed for air compressor and pump control applications.This electromechanical Type F pressure switch features a fixed differential pressure range of 100 to 175 PSI with a maximum pressure rating of 200 PSI. It includes a 1/4" NPT internal connection, 2 normally closed (2NC) contacts, and a screw clamp connection type. The enclosure is rated NEMA 1/IP20 with a polypropylene housing and steel connection material. It operates reliably within a temperature range of -33 to 257 degrees Fahrenheit and supports up to 10 cycles per minute. This switch is part of the 9013FH series and is manufactured by Schneider Electric under the Telemecanique brand.

Key Specifications
• Pressure Range: 100 to 175 PSI set off
• Fixed Differential: 40 PSI
• Maximum Pressure: 200 PSI
• Connection Size: 1/4" NPT internal
• Contact Configuration: 2 Normally Closed (2NC)
• Enclosure Type: NEMA 1 / IP20
• Housing Material: Polypropylene
• Connection Material: Steel
• Operating Temperature: -33 to 257 °F
• Operating Cycles: 10 cycles per minute
• Series: 9013FH
• Mounting Type: Screw Clamp
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9013FHG52J59X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Automation
• Item Subcategory : Automation Switch
• Section : Pressure Switch



Product Data

• UPC : 078590100089
• GTIN : 00785901000891
• Weight : 0.85
