Product Info
- Manufacturer:Telemecanique
- Sub-Category:Pressure switch
Description
9013FHG12J52X

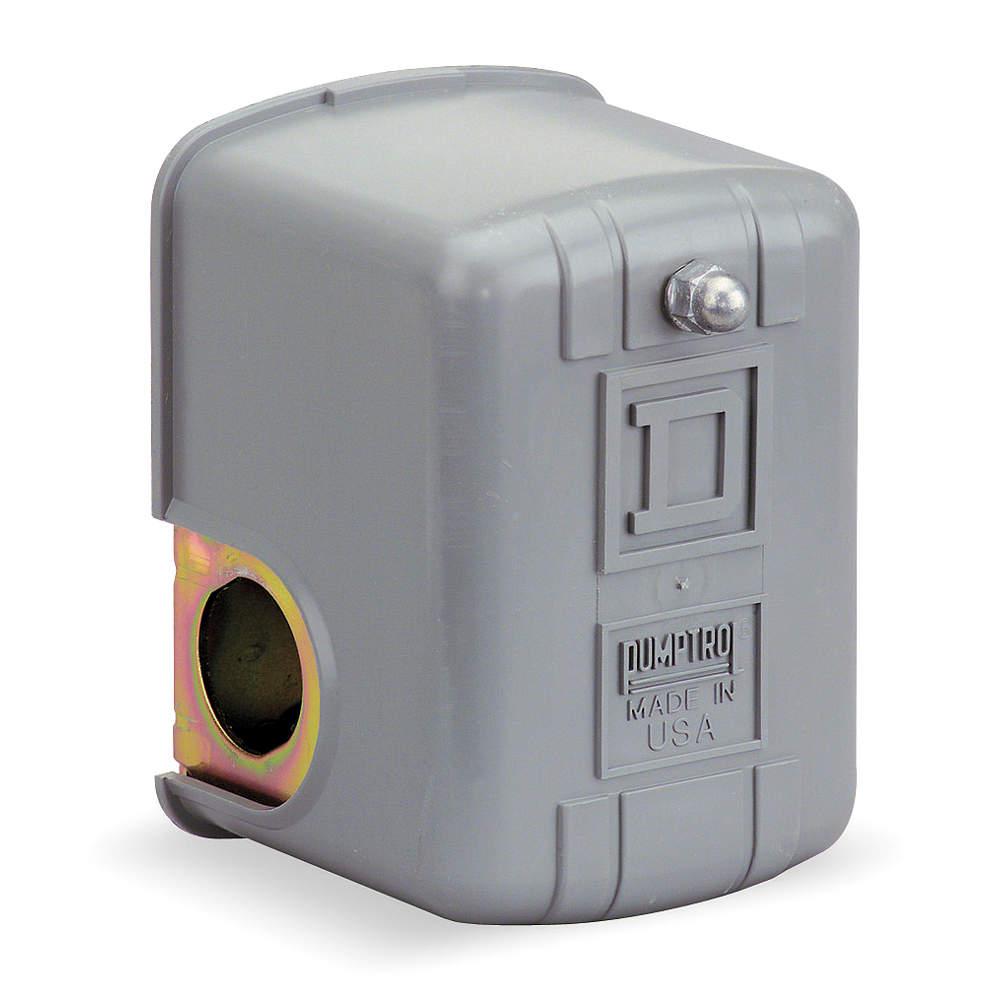

9013FHG12J52X is a DPST air compressor pressure switch with a 40 to 150 psi range, 1/4" FNPS port, and polypropylene housing for reliable operation in air compressor systems. This Telemecanique 9013FH series pressure switch features a diaphragm actuator, standard operation, and a fixed differential of 30 psi. Designed for air compressors, it offers manual reset, NEMA 1 rating, and is suitable for use with air at temperatures between 32°F and 158°F. The switch is factory set to turn off at 125 psi and is commonly used in low horsepower applications.
- Part Number: 9013FHG12J52X
- Manufacturer: Telemecanique
- Series: 9013FH
- Pressure Range: 40 to 150 psi
- Pressure Connection: 1/4" FNPS
- Electrical Contact Form: DPST
- Actuator Type: Diaphragm
- Operation Type: Standard
- Reset Type: Manual
- HP Rating: 1.5 HP @ 120V, 2 HP @ 240V (1 phase); 3 HP @ 240V, 1 HP @ 480V (3 phase)
- NEMA Rating: 1
- Controlled Fluid: Air
Specifications
- Part Number: 9013FHG12J52X
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Pressure switch
- Family : 9013 9013FH
Product Data
- UPC : 078590152293
- GTIN : 00785901522935
- Country of Origin : Mexico
- Weight : 1
- Certification : ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
