9012GDW25 - Telemecanique 10 Amp 480 VAC DPDT Pressure Switch 3-150 PSI NEMA 4X

9012GDW25

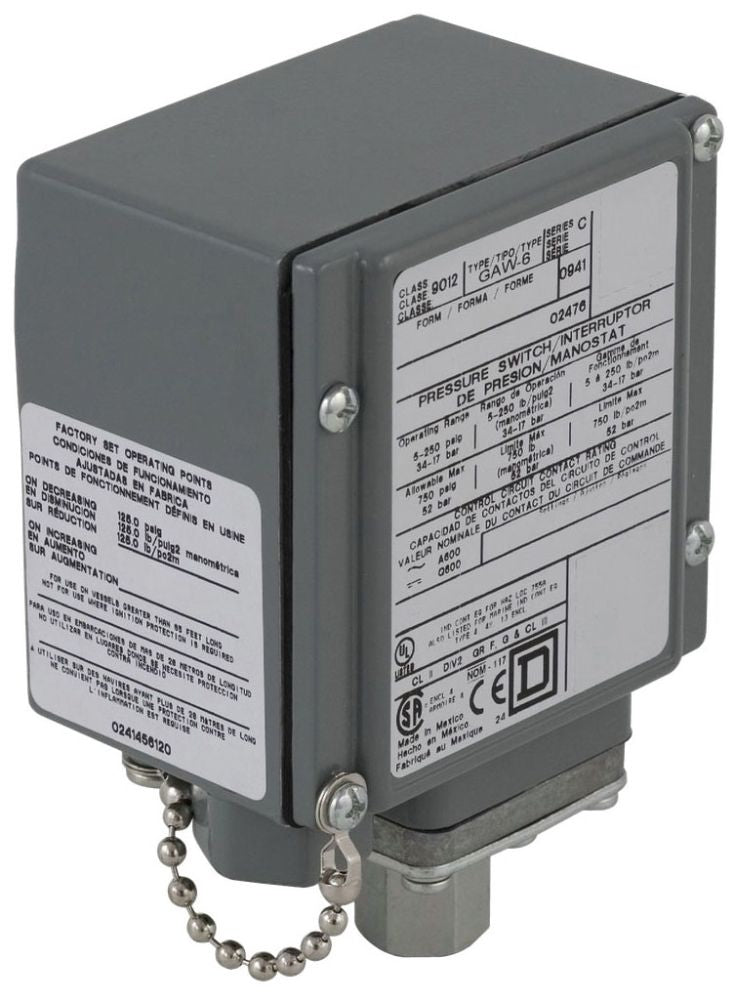

9012GDW25 is a Telemecanique electromechanical pressure switch designed for reliable pressure monitoring and control in industrial applications.This pressure switch features a fixed scale with one threshold adjustable from 3 to 150 PSI, a maximum pressure rating of 475 PSI, and a DPDT (Double Pole Double Throw) contact configuration. It supports a contact rating of 10 Amps at 480 VAC and 10 Amps at 600 VDC, with a 1/4 inch-18 TPI FNPT connection and a zinc-plated steel enclosure rated for NEMA 4, 4X, and 13 protection. The device is suitable for air, hydraulic oil, non-corrosive liquids, and gases.

• Part Number: 9012GDW25
• Manufacturer: Telemecanique
• Pressure Range: 3 to 150 PSI fixed scale
• Maximum Pressure: 475 PSI
• Contact Configuration: DPDT (4 circuit)
• Contact Rating: 10 Amp at 480 VAC / 10 Amp at 600 VDC
• Connection Type: 1/4 inch-18 TPI FNPT
• Enclosure Material: Zinc Plated Steel
• Protection Rating: NEMA 4, NEMA 4X, NEMA 13
• Suitable Media: Air, Hydraulic Oil, Non-Corrosive Liquids and Gases
• Mounting Type: Threaded connection
• Certifications: UL 508 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9012GDW25
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Pressure switch
• Family : 9012G

Product Data

• UPC : 785901024972
• GTIN : 00785901024972
• Country of Origin : Mexico
• Dimensions : 3.5 in W x 2.63 in D x 5.55 in H 5.55 in H x 3.5 in W x 2.63 in D
• Weight : 1
• Certification : UL 508; CE; CSA C22.2 No 14; CSA LR25490 class 3211 03
