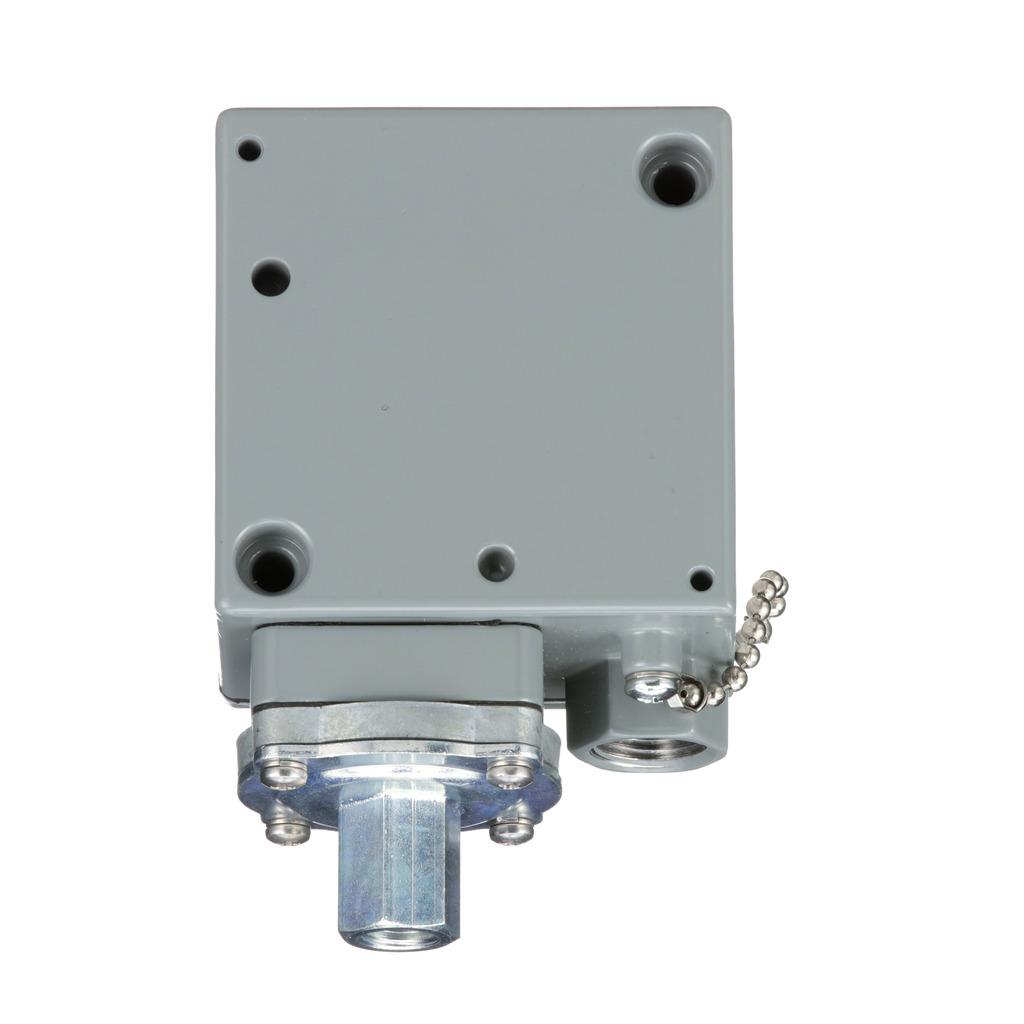

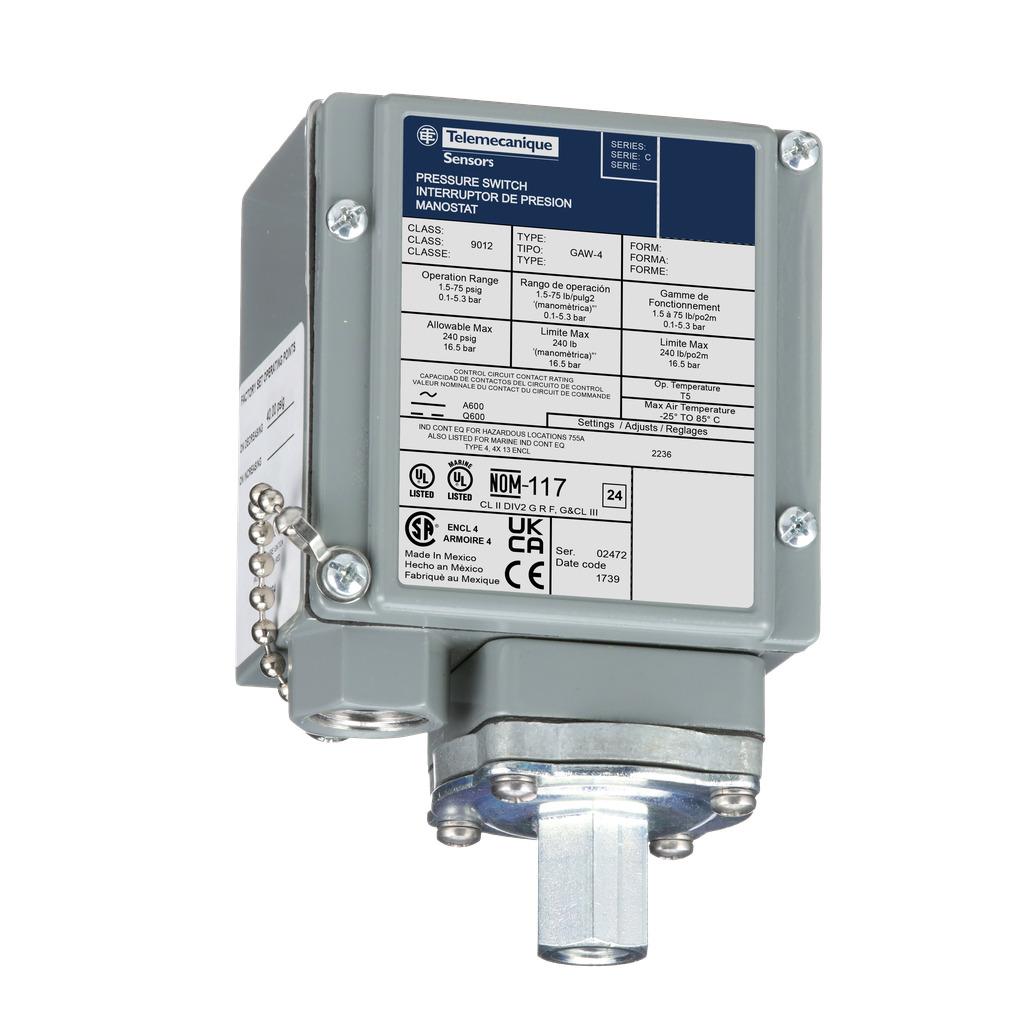

9012GAW4 - Telemecanique 9012G Pressure Switch 1.5-75 PSI, 480 VAC, 10 A, SPDT, Adjustable Scale, NEMA 3R

9012GAW4

9012GAW4 is a Telemecanique 9012G series electromechanical pressure switch designed for reliable pressure monitoring and control in industrial applications. This switch features an adjustable scale for pressure settings between 1.5 and 75 PSI, with a maximum pressure rating of 240 PSI. It offers high shock resistance, set point stability, and both internal and external range adjustment options. The device is suitable for use with hydraulic oil, air, and non-corrosive gases or liquids, and is built for durability in demanding environments. The 9012GAW4 pressure switch includes a snap-action SPDT contact rated for 10 A at 480 VAC, a 4-screw terminal block, and a 1/4 in 18 NPTF fluid connection. The enclosure is watertight, dusttight, oiltight, and corrosion-resistant, making it suitable for both indoor and outdoor installations. The diaphragm is nitrile (Buna-N), and the flange is zinc plated steel, with options for alternate materials available.

• Part Number: 9012GAW4
• Manufacturer: Telemecanique
• Series: 9012G
• Pressure Setting Range: 1.5 to 75 PSI
• Maximum Pressure: 240 PSI
• Electrical Rating: 10 A @ 480 VAC
• Contacts: SPDT, Form Z, Silver Nickel
• Fluid Connection: 1/4 in 18 NPTF
• Terminal Block: 4-screw, 22 to 12 AWG
• Enclosure: Watertight, Dusttight, Oiltight, Corrosion-Resistant
• Operating Temperature: -23°F to 250°F
• Mounting: Flange Mount

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9012GAW4
• Manufacturer : Telemecanique
• Brand : Telemecanique
• Category : Sensors
• Item Subcategory : Pressure switch

Product Data

• UPC : 785901024729
• GTIN : 00785901024729
• Country of Origin : Mexico
• Dimensions : 3.5 in W x 2.63 in D x 5.55 in H
• Weight : 5.19
• Certification : CE, RoHS, UL 508
