Product Info
- Manufacturer:Telemecanique
- Sub-Category:Pressure switch
Description
9012GAW1

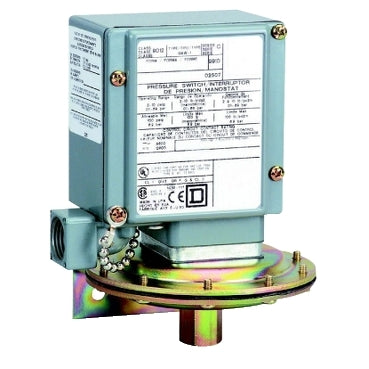

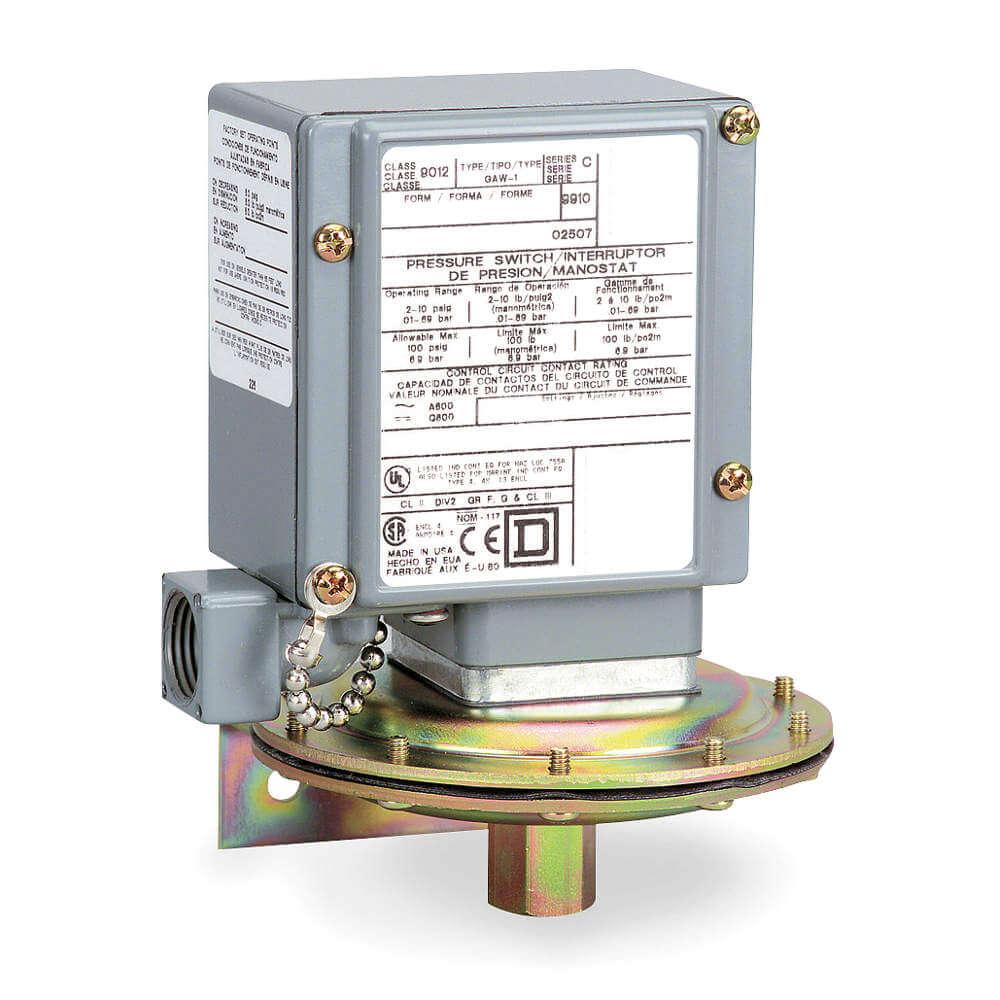

9012GAW1 is an electromechanical pressure switch from the 9012G series designed for differential pressure sensing applications. This adjustable pressure switch features dual thresholds with a pressure range of 0.2 to 10 PSIG, making it suitable for air, hydraulic oil, and non-corrosive liquid monitoring in industrial control systems. The switch provides reliable on-off control with SPDT contact configuration and is rated for 120 VAC operation with 6 A switching capacity. Key Specifications
- Part Number: 9012GAW1
- Manufacturer: Telemecanique Sensors
- Pressure Type: Differential
- Pressure Range: 0.2 to 10 PSIG
- Contact Configuration: SPDT (Single Pole Double Throw)
- Voltage Rating: 120 VAC
- Current Rating: 6 A at 120 VAC
- Port Connection: 1/4 inch NPTF
- Mounting: Panel/Chassis
- Operating Temperature: -23°C to 85°C
- NEMA Protection: NEMA 4X
- Standards: UL Listed
Specifications
- Part Number: 9012GAW1
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Pressure switch
- Family : 9012G
Product Data
- UPC : 078590102507
- GTIN : 00785901025078
- Country of Origin : Mexico
- Dimensions : 5.05 in W x 4.56 in D x 6.24 in H 6.24 in H x 5.05 in W x 4.56 in D
- Weight : 2.01
- Certification : CE, RoHS, UL 508
