Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007MS04S0100

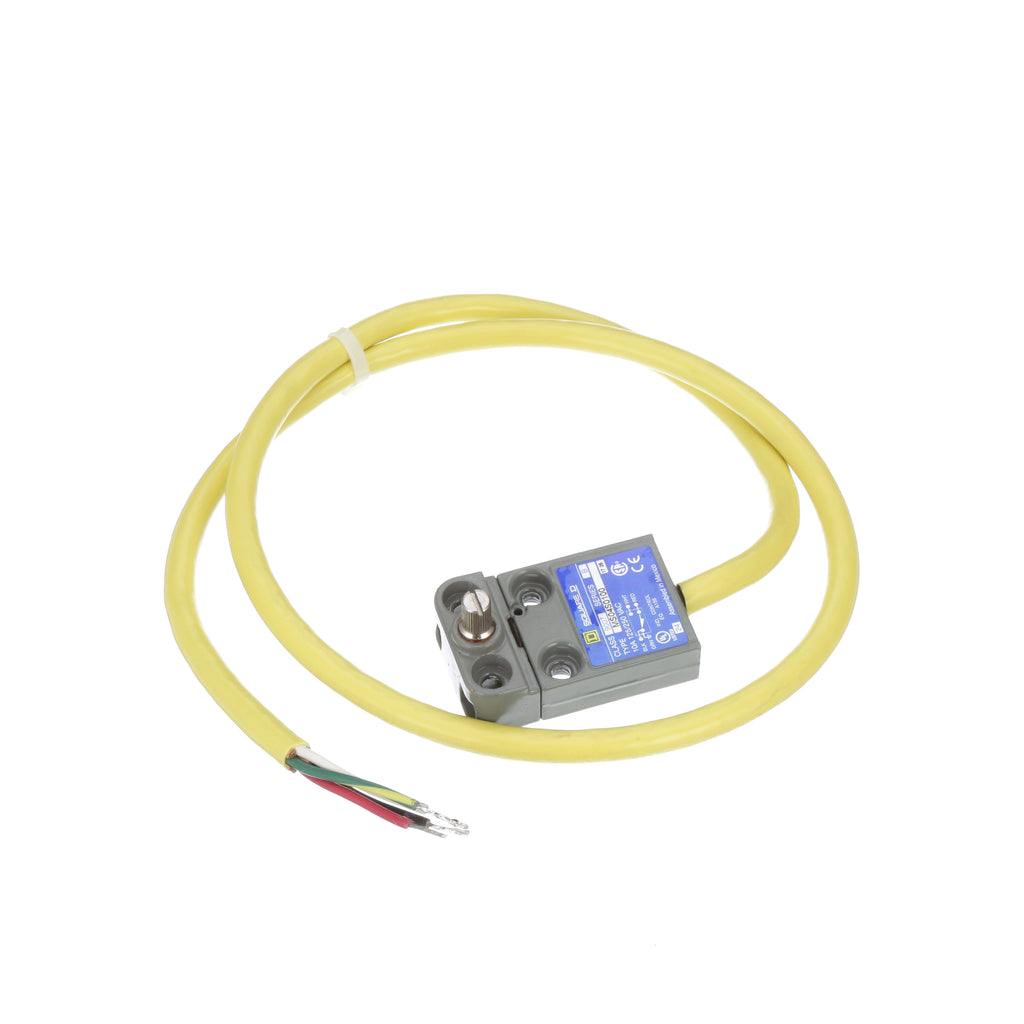

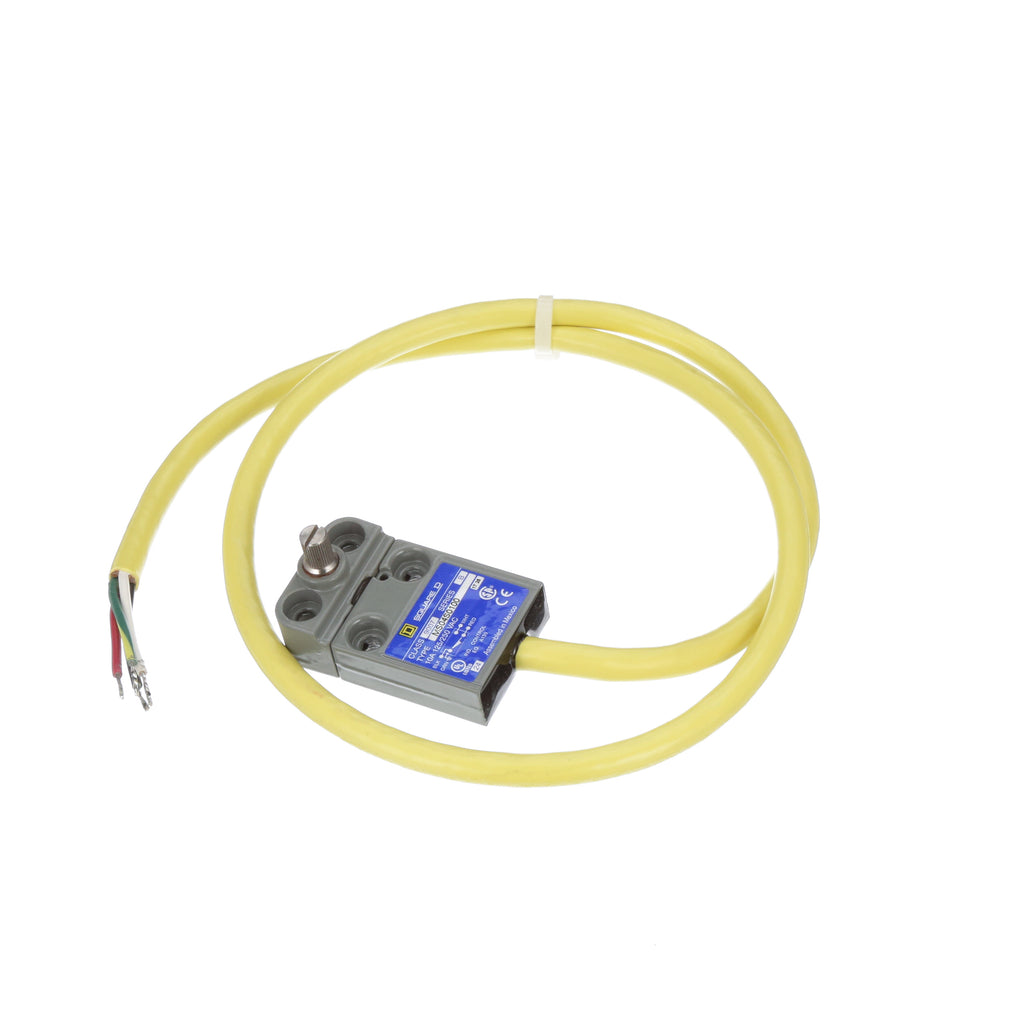

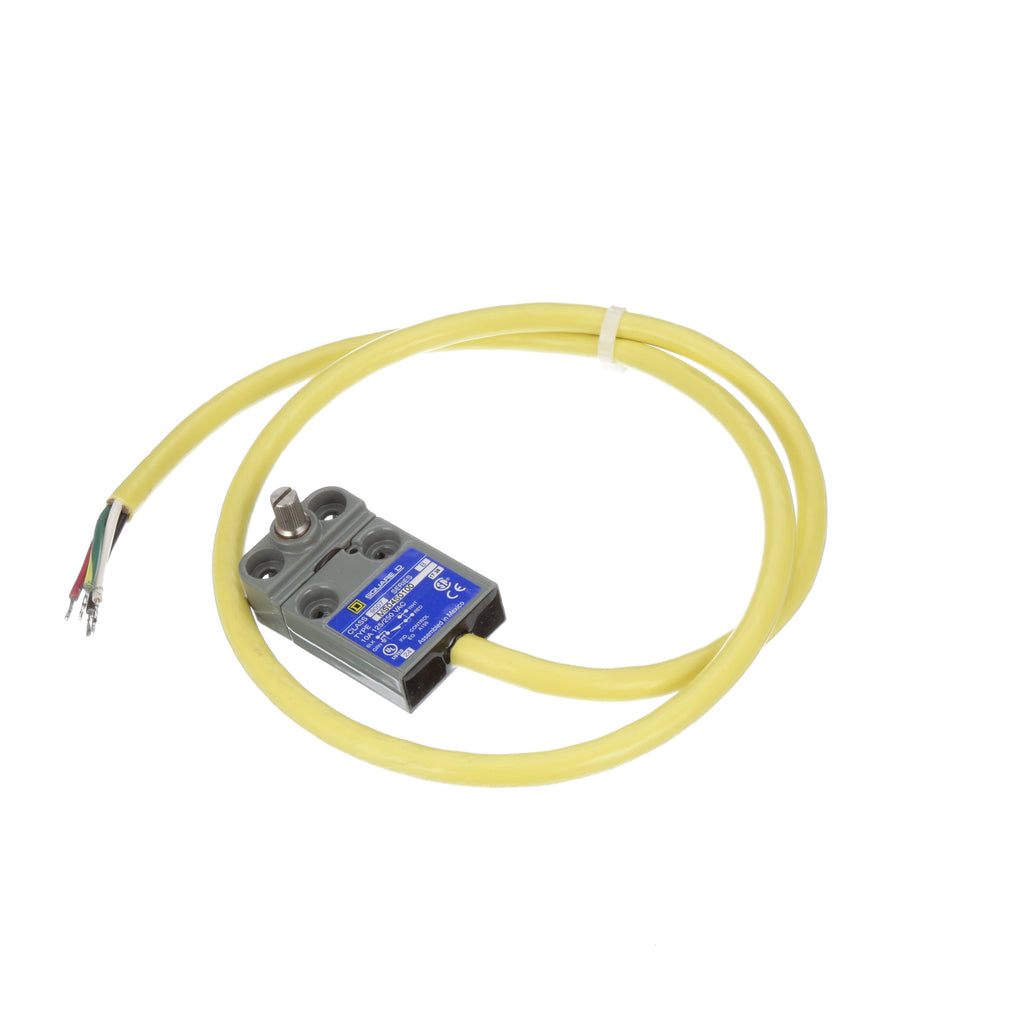

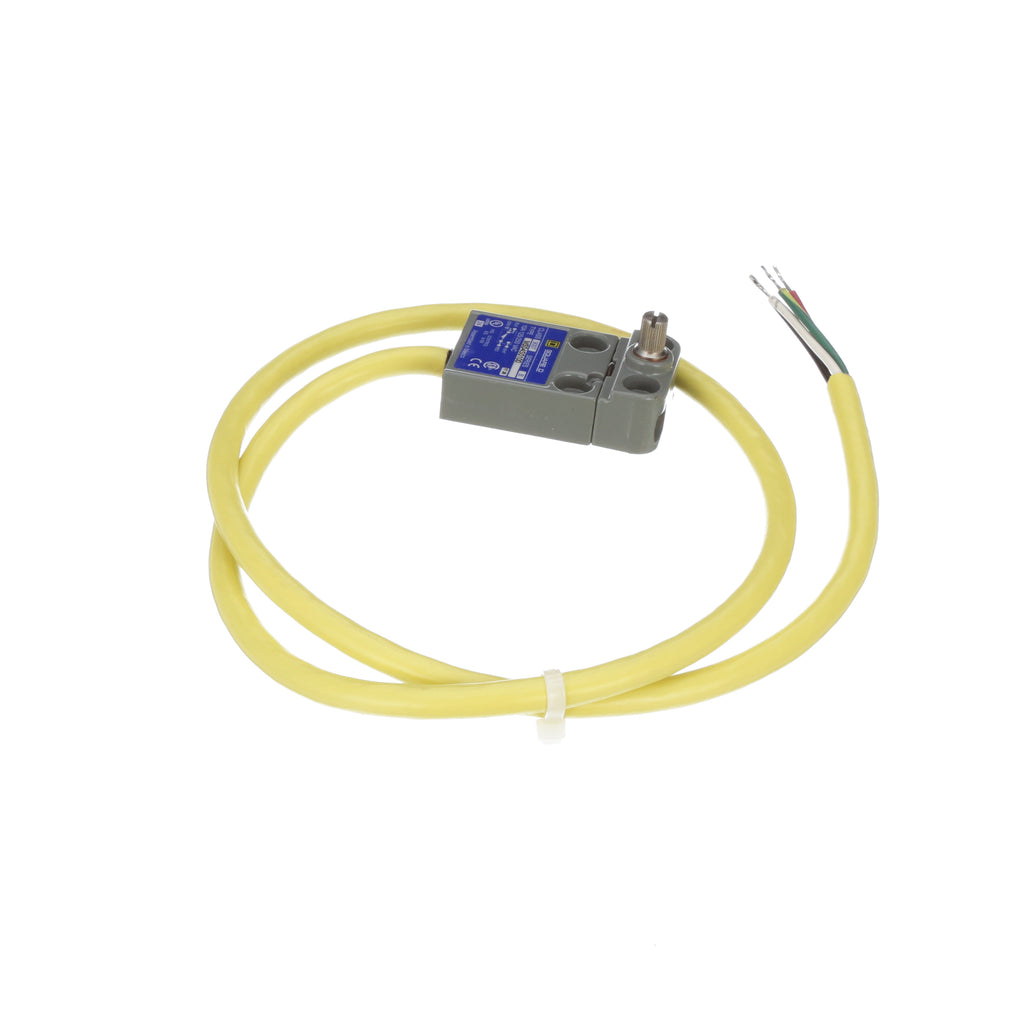

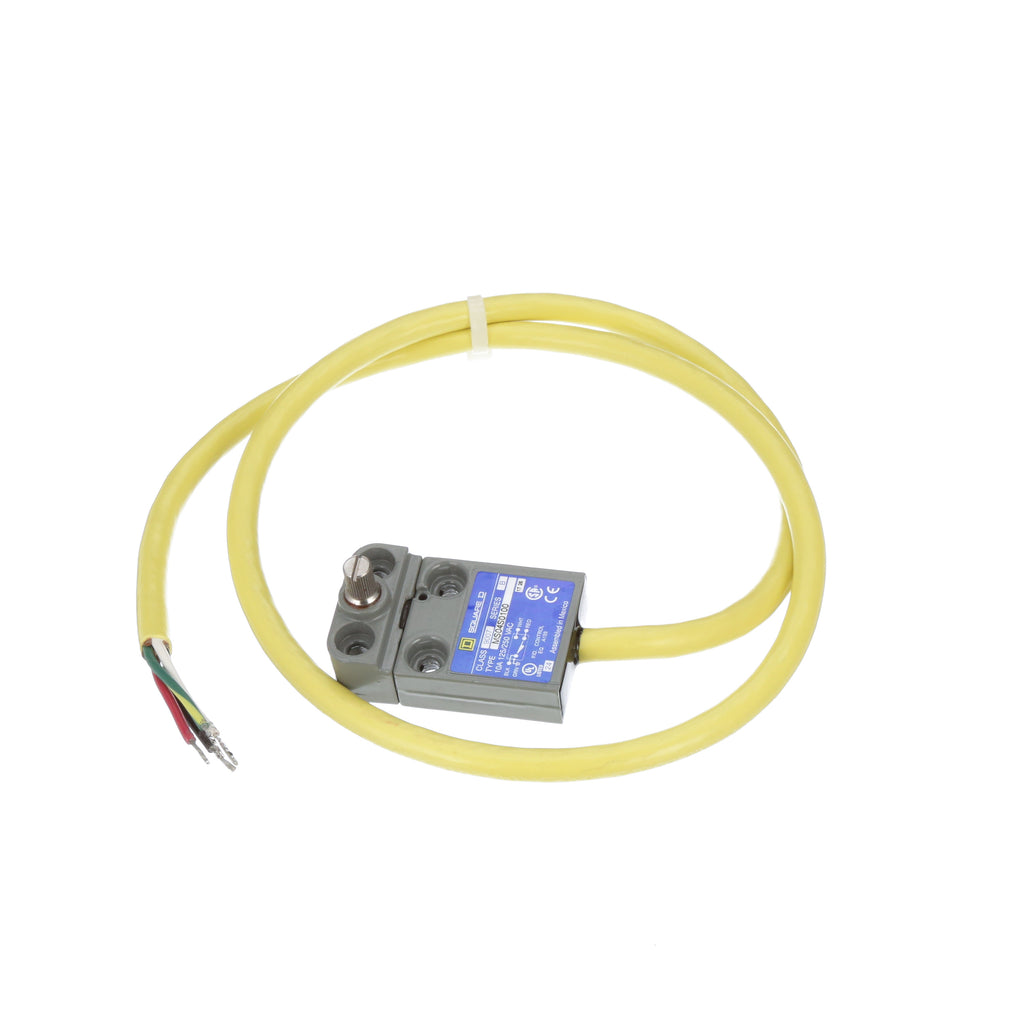

9007MS04S0100 is a Telemecanique miniature potted rotary limit switch with no lever actuator designed for reliable industrial sensing applications.This limit switch features a rotary head with spring return and no operating lever, constructed with a durable cast zinc metal body. It supports a single pole (SPDT) contact form rated for 10A at 240 VAC and 5A at 28 VDC, suitable for lateral approach in two directions (CW and CCW). The switch is fixed by the body and offers mechanical durability up to 10 million cycles. It is certified by CSA, CE, and UL for safety and performance.
- Amperage Rating: 10A at 240 VAC
- Voltage Rating: 240 VAC, 28 VDC
- Poles: Single Pole (SPDT)
- Actuator Type: Rotary head, no lever, spring return
- Mounting Type: Fixed by the body
- Material: Cast zinc metal body
- Contact Form: 1NO/1NC
- Directional Movement: CW and CCW lateral approach
- Mechanical Durability: 10,000,000 cycles
- Certifications: CSA, CE, UL
- Body Dimensions: Approx. 1.58" W x 1.75" H x 0.62" D
Specifications
- Part Number: 9007MS04S0100
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007 Miniature Potted
- Voltage : 240 , 28 DC 240 /28 DC
Product Data
- UPC : 785901550563
- GTIN : 00785901788829
- Country of Origin : Mexico
- Dimensions : 1.56" x 2.50"
- Weight : 1 lb
- Certification : CE, CSA, UL
