Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007MS02S0206

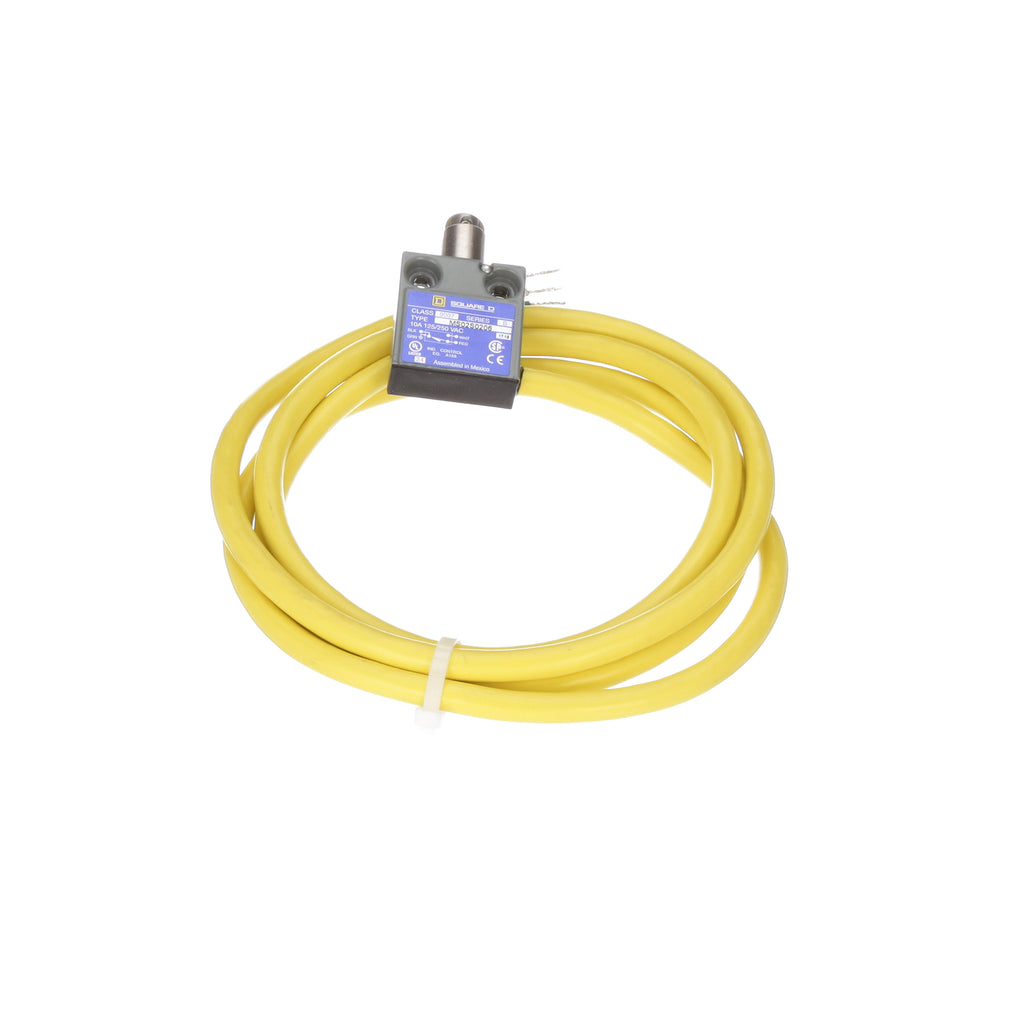

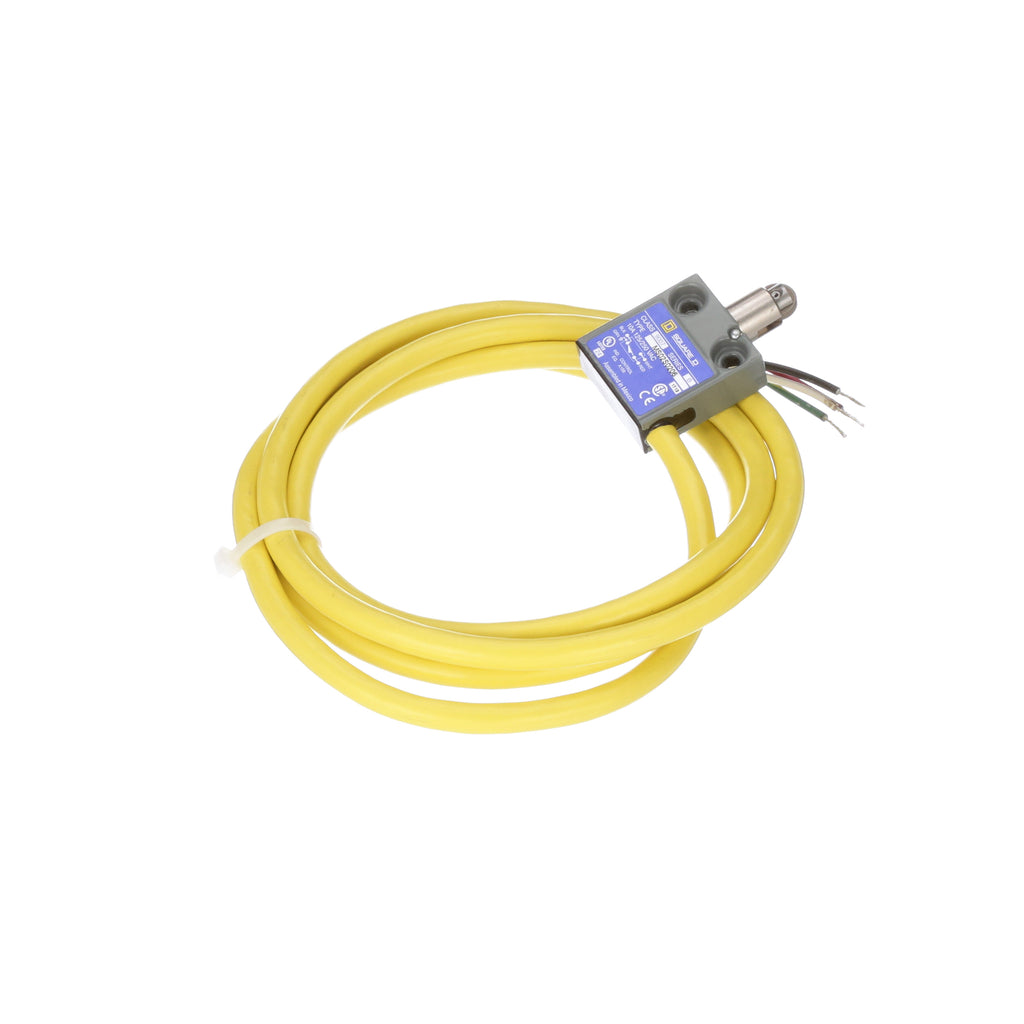

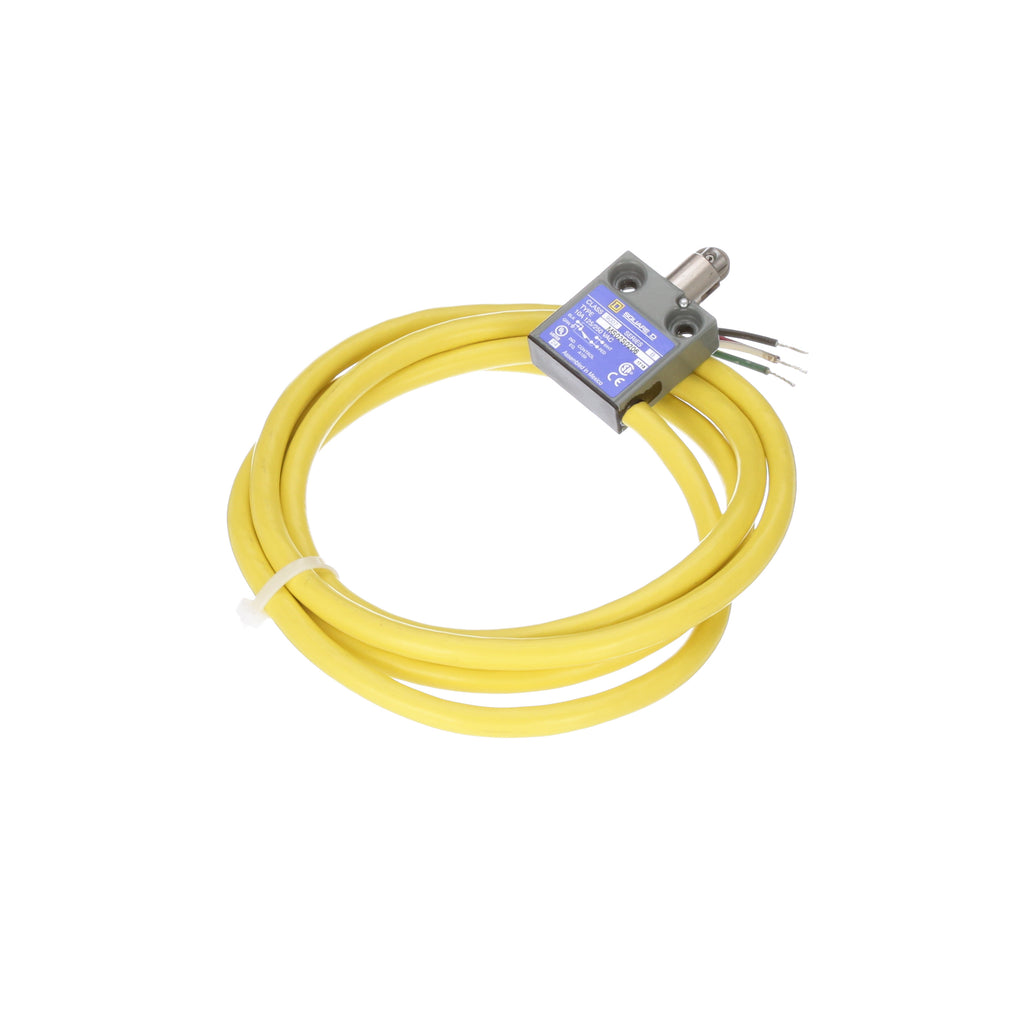

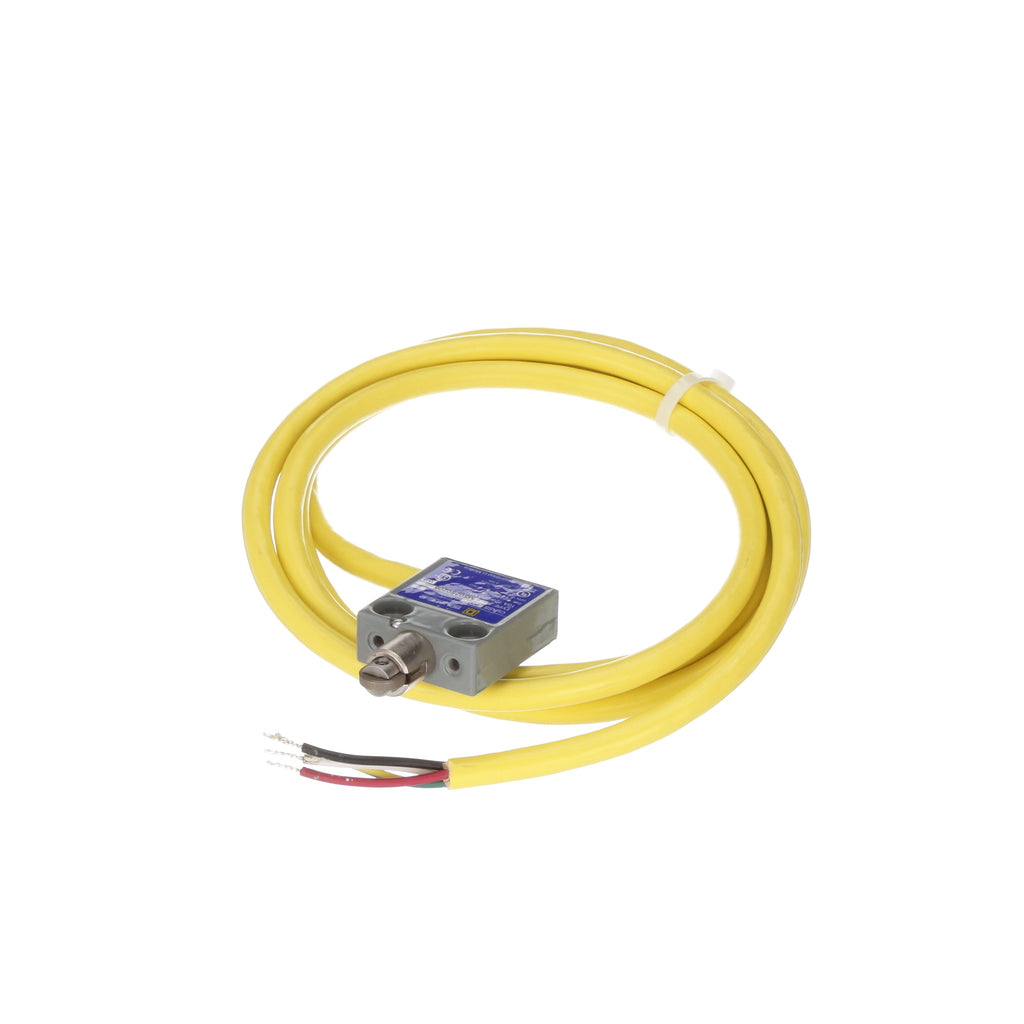

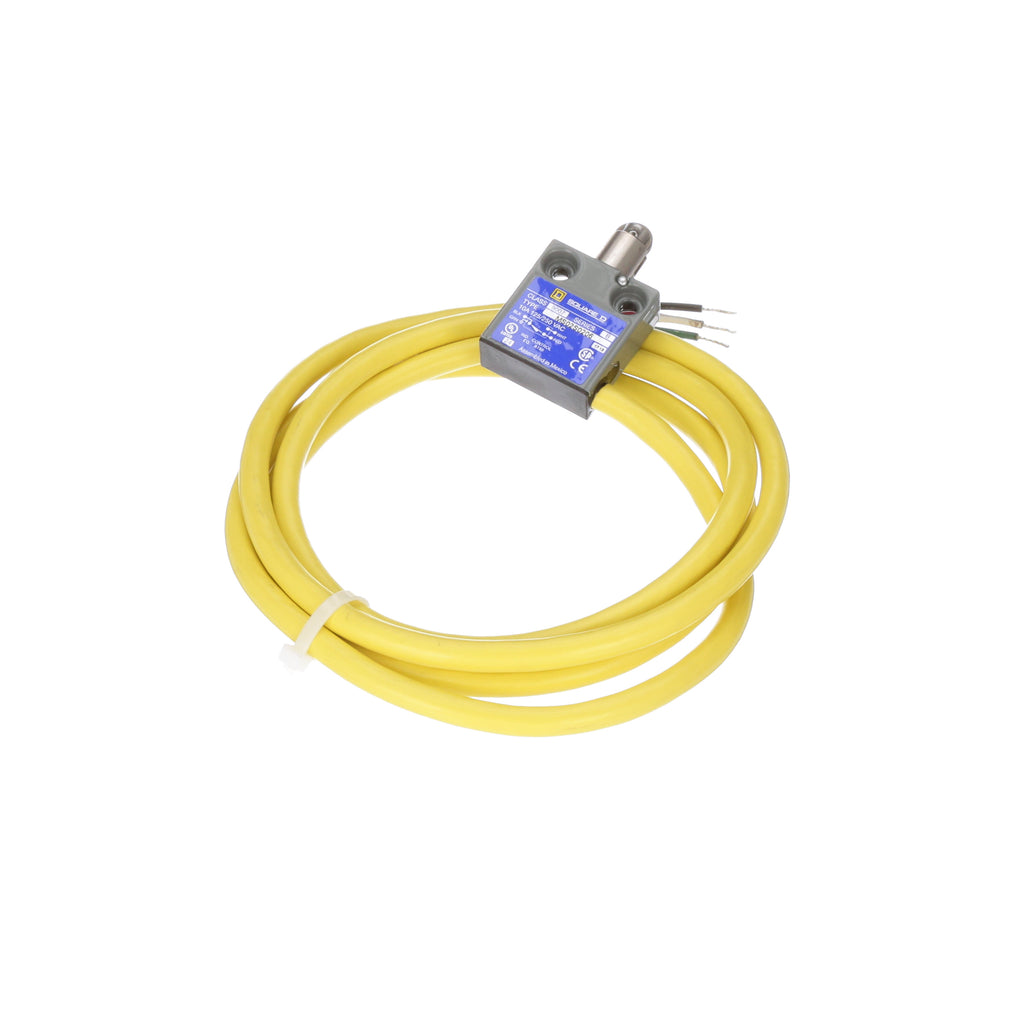

9007MS02S0206 is a Telemecanique roller plunger limit switch designed for industrial applications requiring reliable position detection.This limit switch features a zinc body with epoxy powder coating, providing durability and corrosion resistance. It operates at 240 VAC with a 10 amp rating and includes a spring return linear operator. The device is rated for NEMA 1, 2, 4, 6, 6P, 12, and 13 environments and has an IP67 ingress protection rating, making it suitable for harsh conditions. It also withstands shock resistance of 35 gn for 9 ms per IEC 60068-2-27.
- Key Specifications
- Voltage: 240 VAC
- Current Rating: 10 Amps
- Actuator Type: Roller Plunger
- Body Material: Zinc with epoxy powder coating
- Mounting: Fixed by the body
- Environmental Ratings: NEMA 1/2/4/6/6P/12/13, IP67
- Shock Resistance: 35 gn for 9 ms (IEC 60068-2-27)
- Operating Temperature Range: -40 to 220 °F storage
- Series: 9007
- Operator Type: Spring return linear
Specifications
- Part Number: 9007MS02S0206
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007 Miniature Potted 9007MS/ML
- Voltage : 240 /28 DC
Product Data
- UPC : 785901325390
- GTIN : 00785901325390
- Country of Origin : Mexico
- Dimensions : 1.56 in
- Weight : 1 lb
- Certification : LR 25490 Class 32 11 03 || E78403; UL || CSA || CE
