Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007MS02S0100

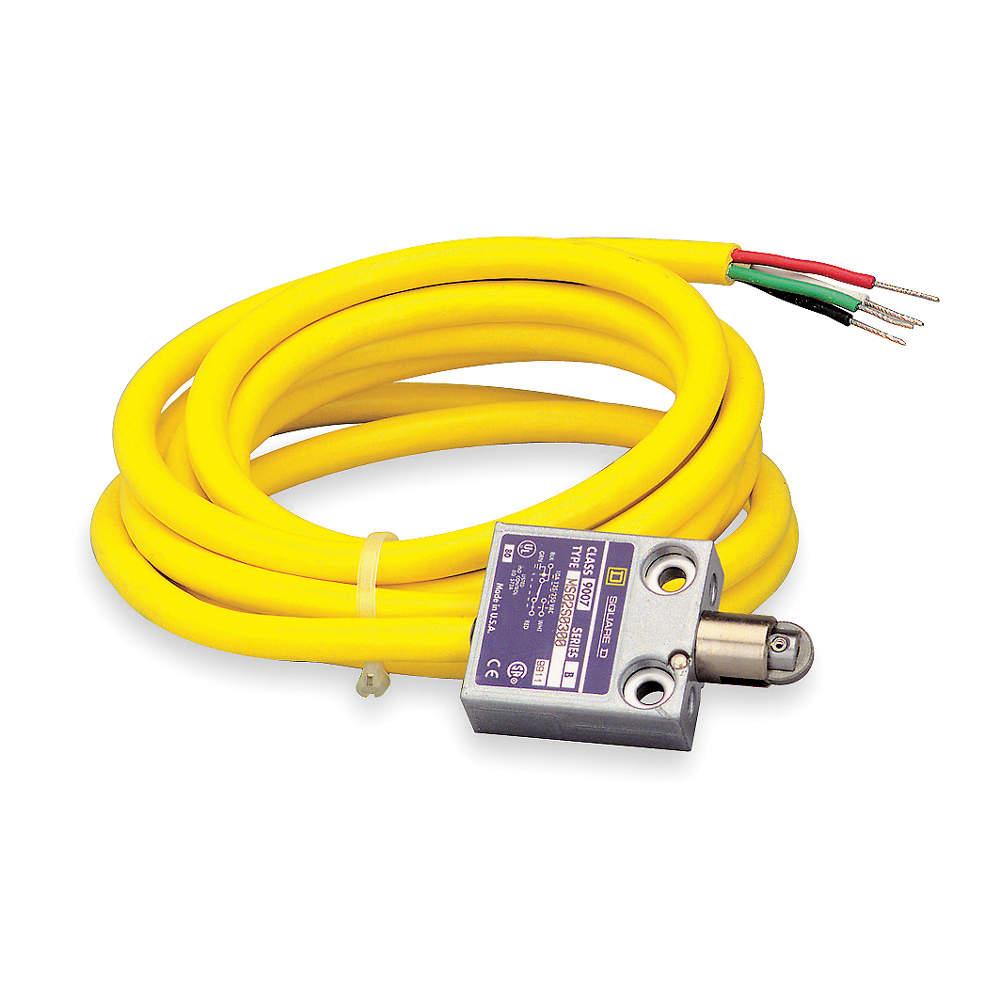

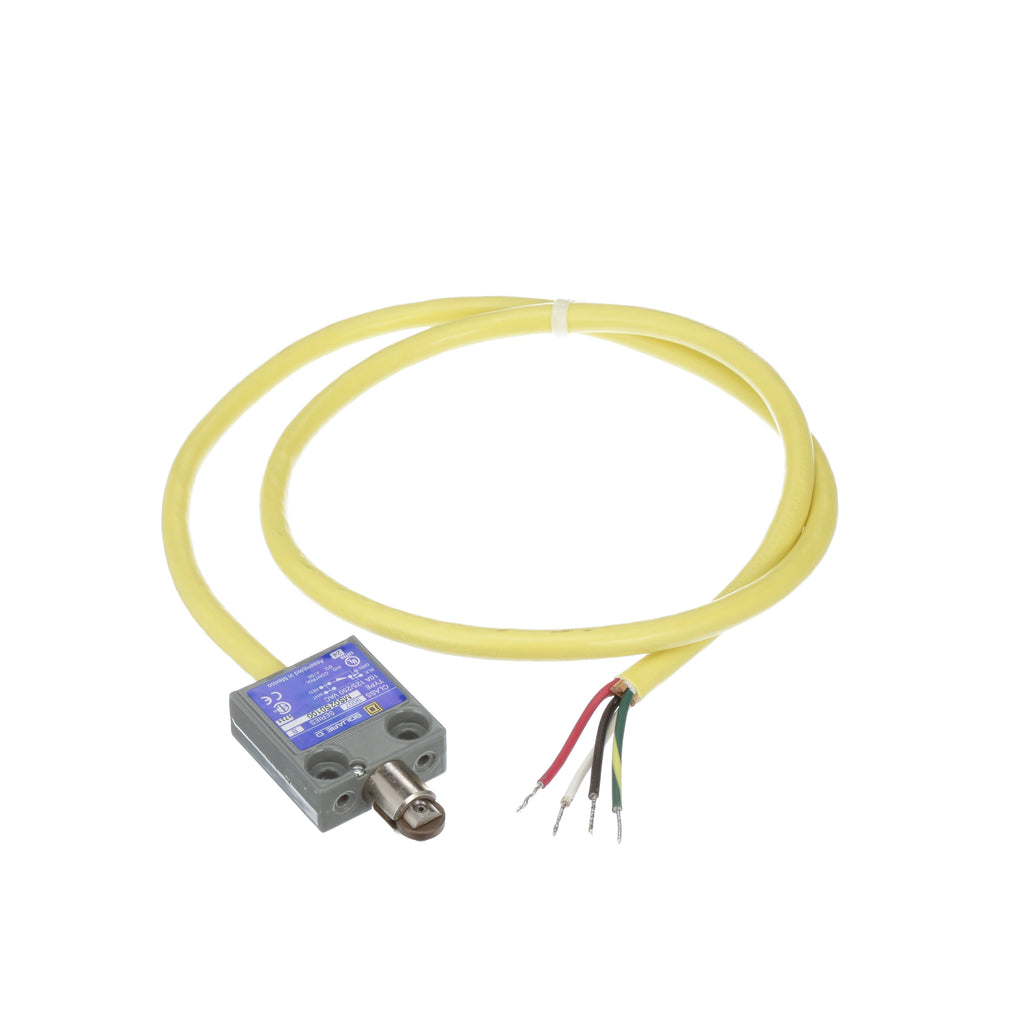

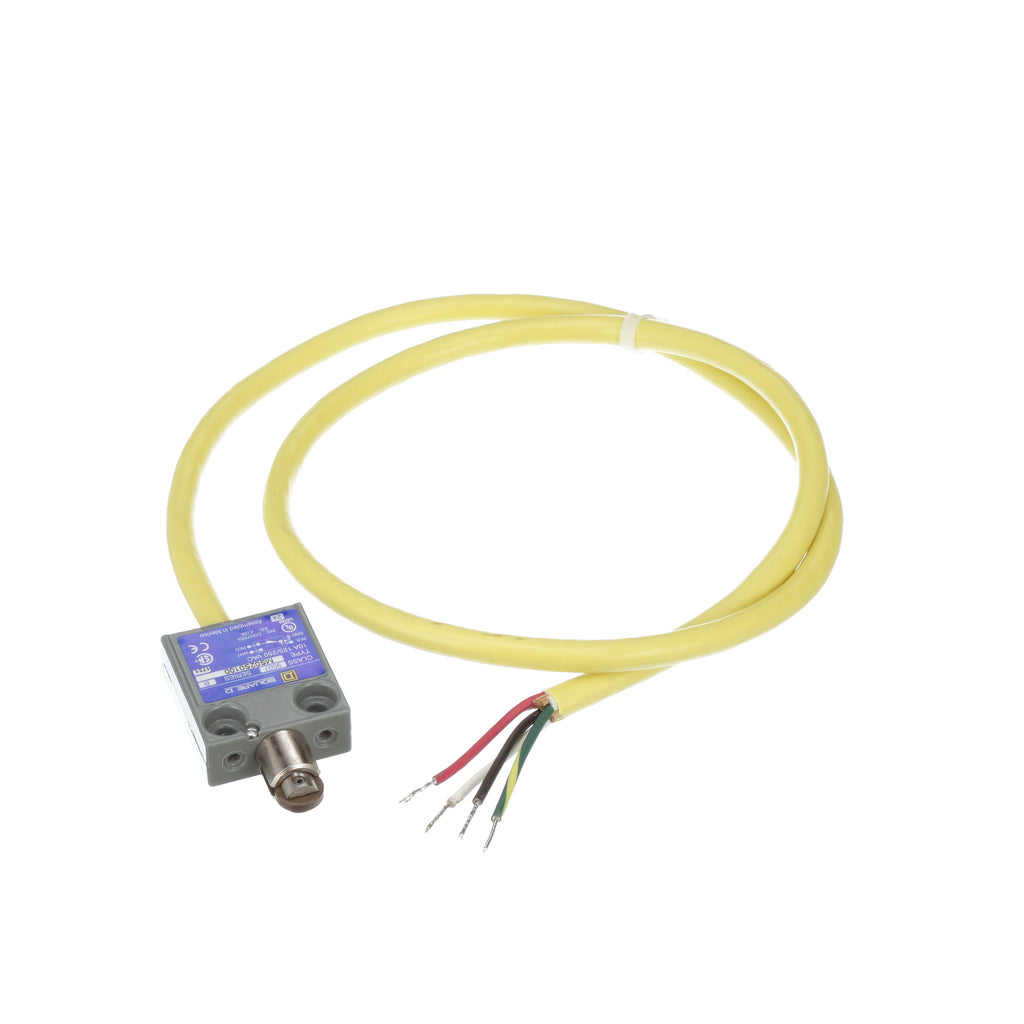

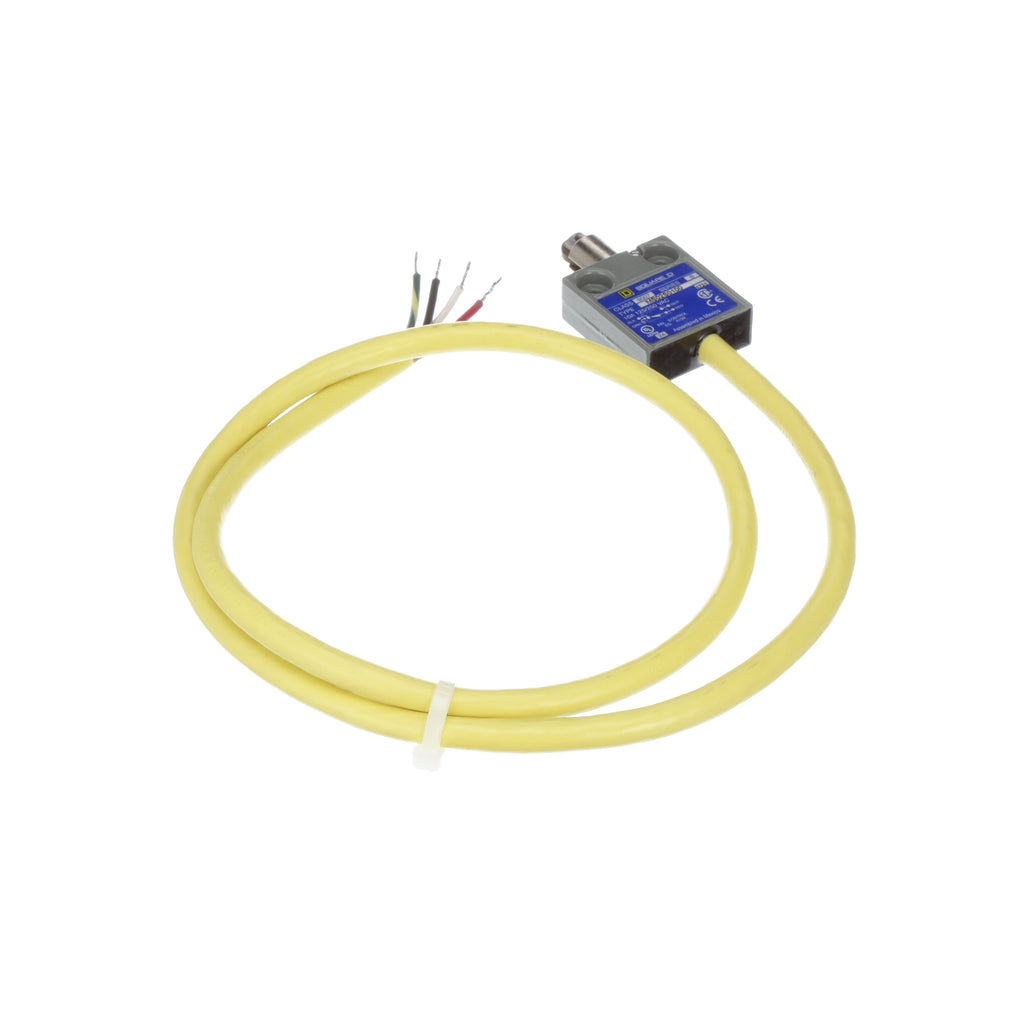

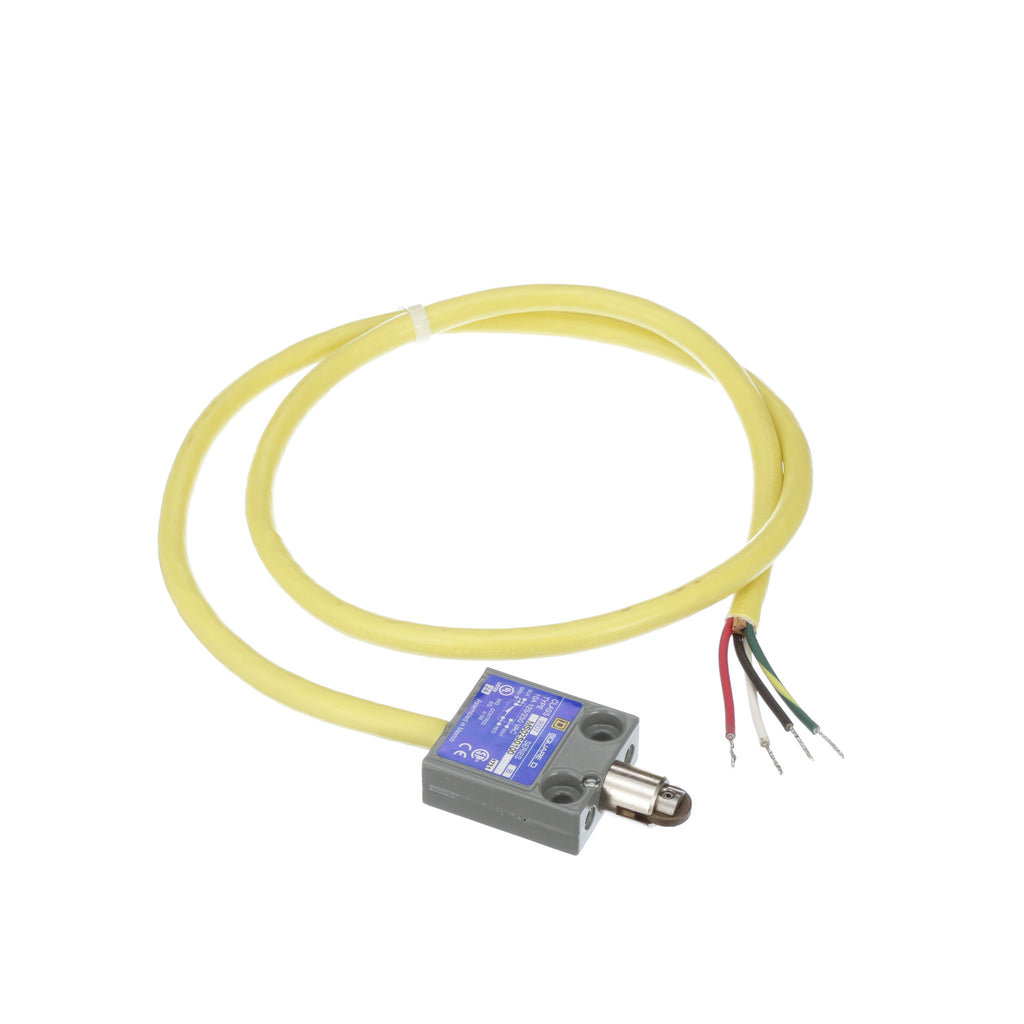

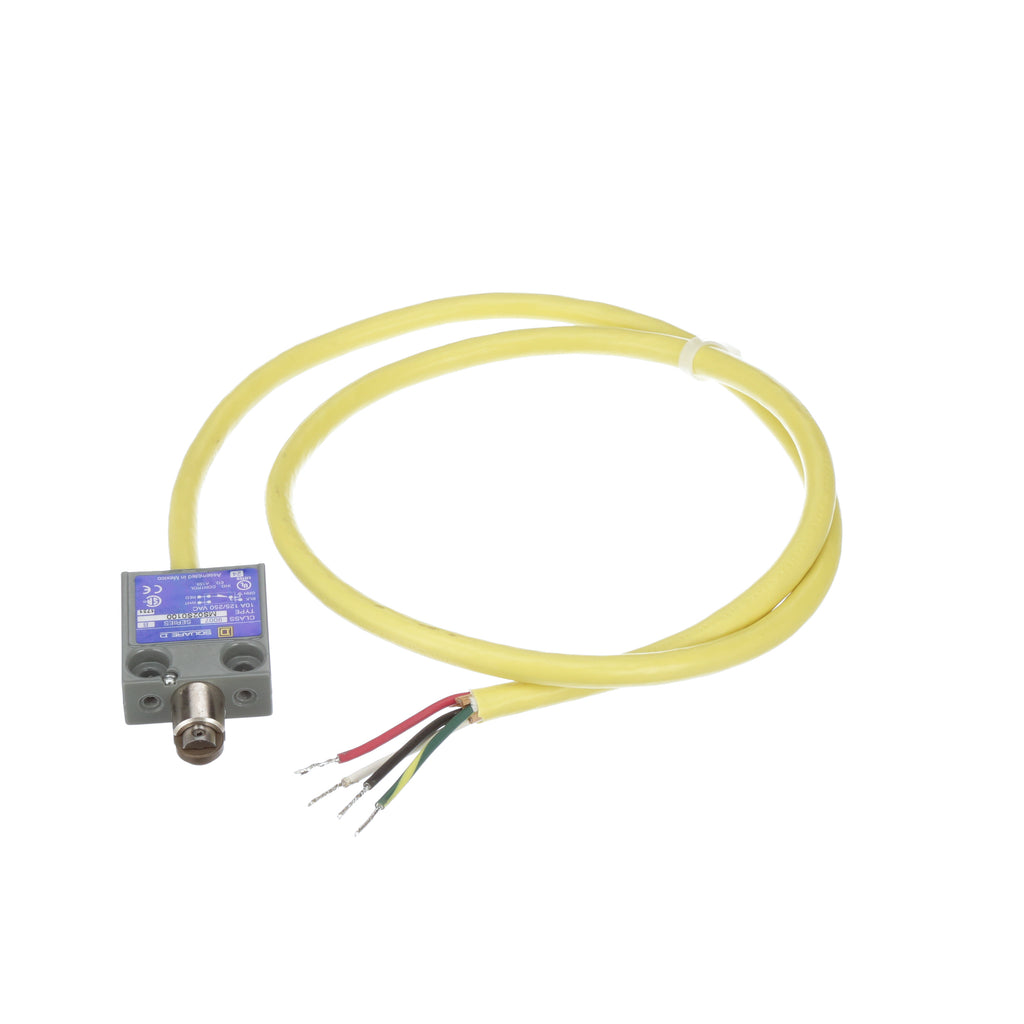

9007MS02S0100 is a durable roller plunger limit switch from Telemecanique Sensors designed for reliable industrial control applications.This limit switch features a metal parallel roller plunger actuator, SPDT output configuration, and a robust die-cast zinc housing. It supports an electrical rating of 10A at 240V AC and 1 pole operation. The device is suitable for harsh environments with NEMA ratings 1, 2, 4, 6, 6P, 12, and 13, and offers shock resistance up to 35 gn for 9 ms. It mounts by the body and operates within a temperature range of -40 to 104°C.
- Manufacturer: Telemecanique Sensors
- Part Number: 9007MS02S0100
- Series: 9007MS
- Electrical Rating: 10A at 240V AC
- Poles: 1
- Actuator Type: Metal parallel roller plunger
- Output Configuration: SPDT (Single Pole Double Throw)
- Housing Material: Die-cast zinc
- Mounting Type: By the body
- Operating Temperature: -40 to 104°C
- Shock Resistance: 35 gn for 9 ms
- NEMA Ratings: 1, 2, 4, 6, 6P, 12, 13
Specifications
- Part Number: 9007MS02S0100
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007 Miniature Potted 9007MS/ML
- Voltage : 240 /28 DC
Product Data
- UPC : 078590155062
- GTIN : 00785901550624
- Country of Origin : Mexico
- Dimensions : 1.56" x 2.63"
- Weight : 0.3 lb
- Certification : CE, CSA, UL
