Product Info
- Manufacturer:Telemecanique
- Sub-Category:Limit Switch
Description
9007MS01S0500

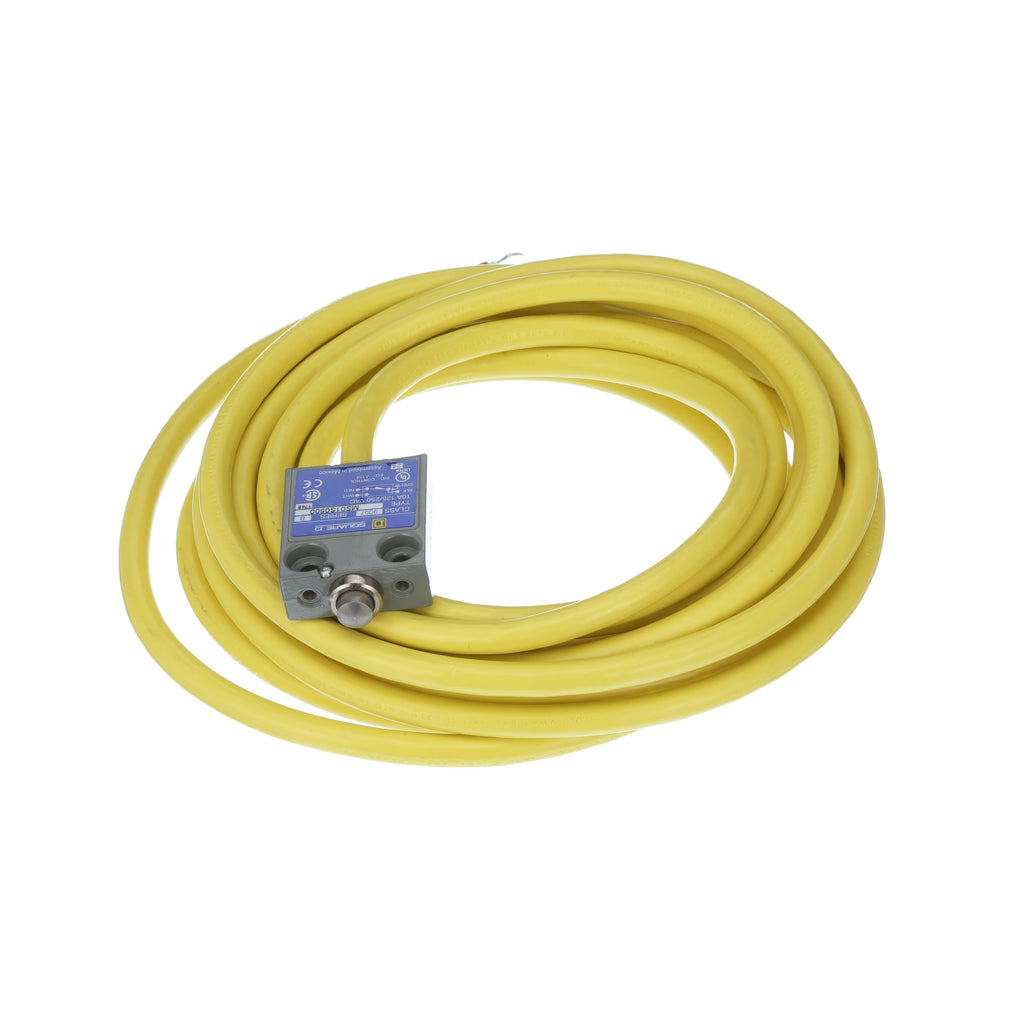

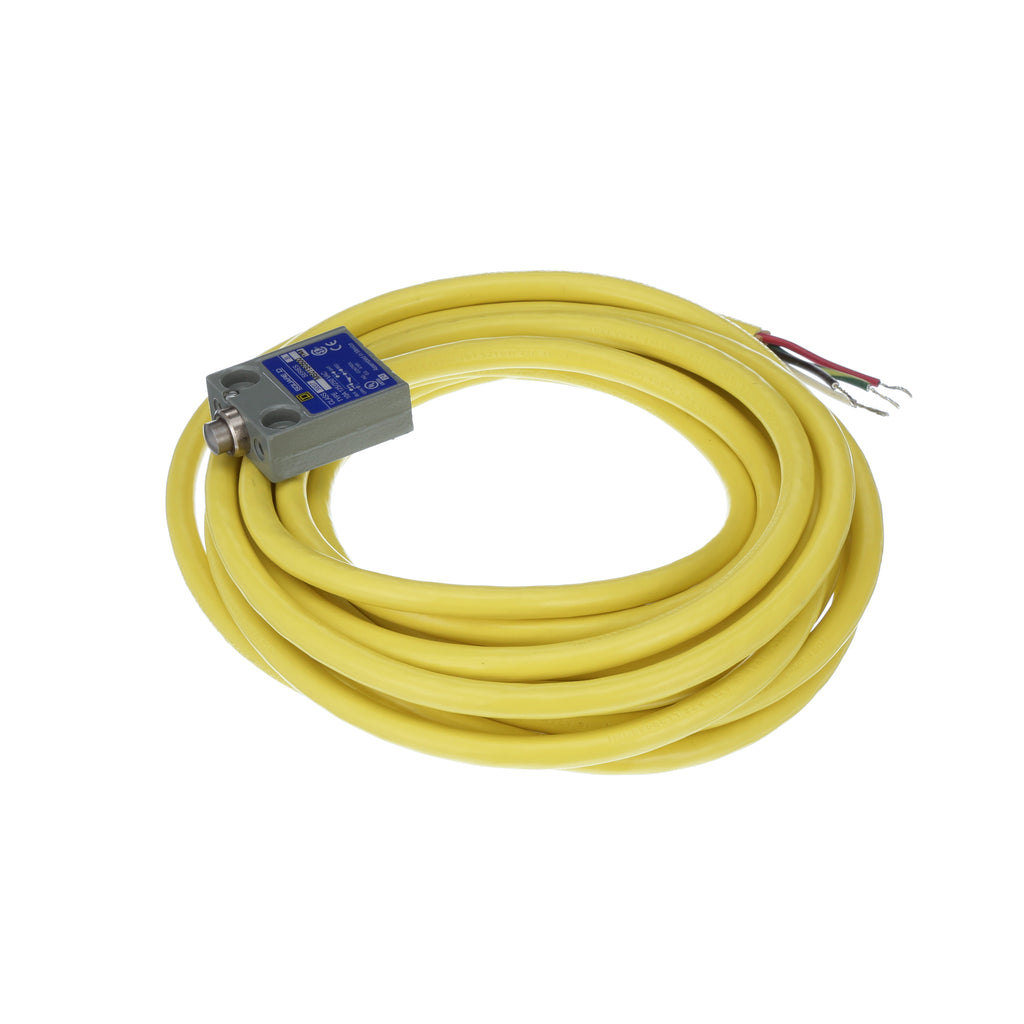

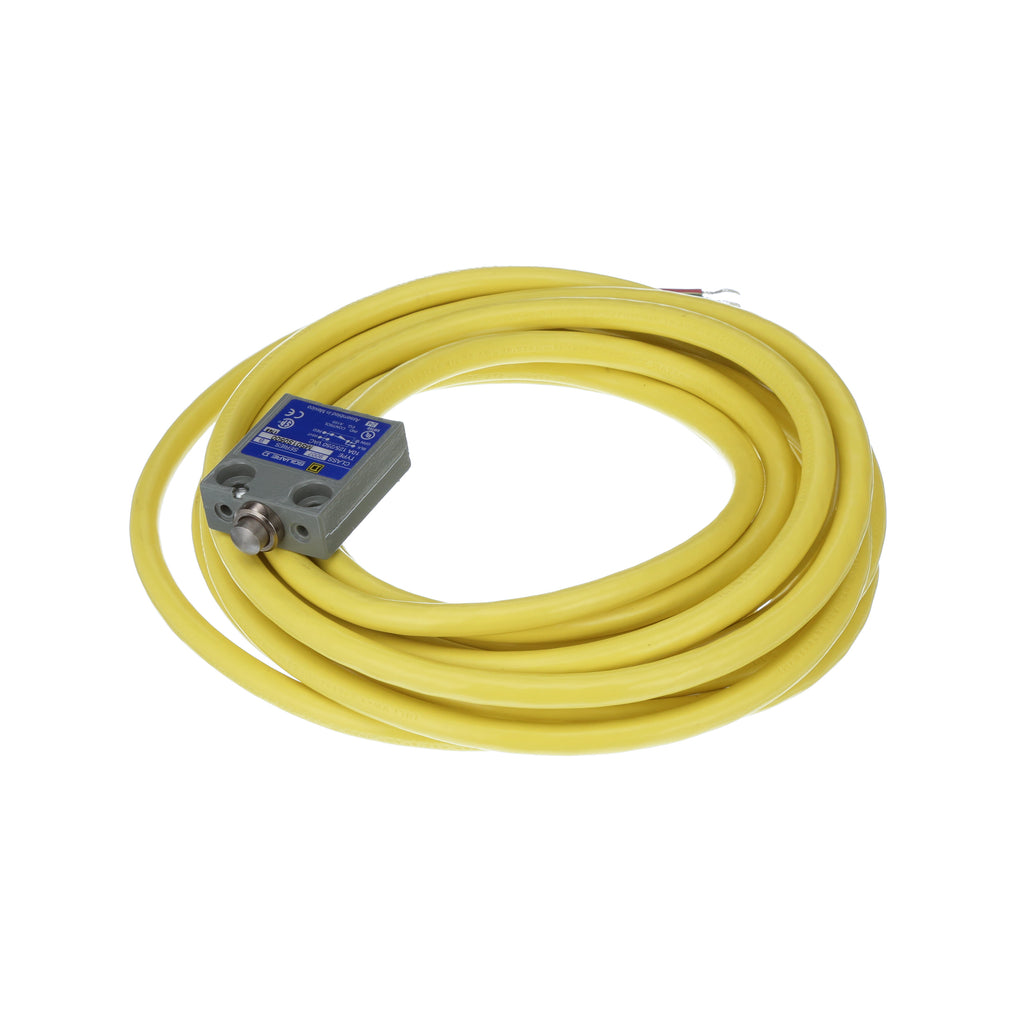

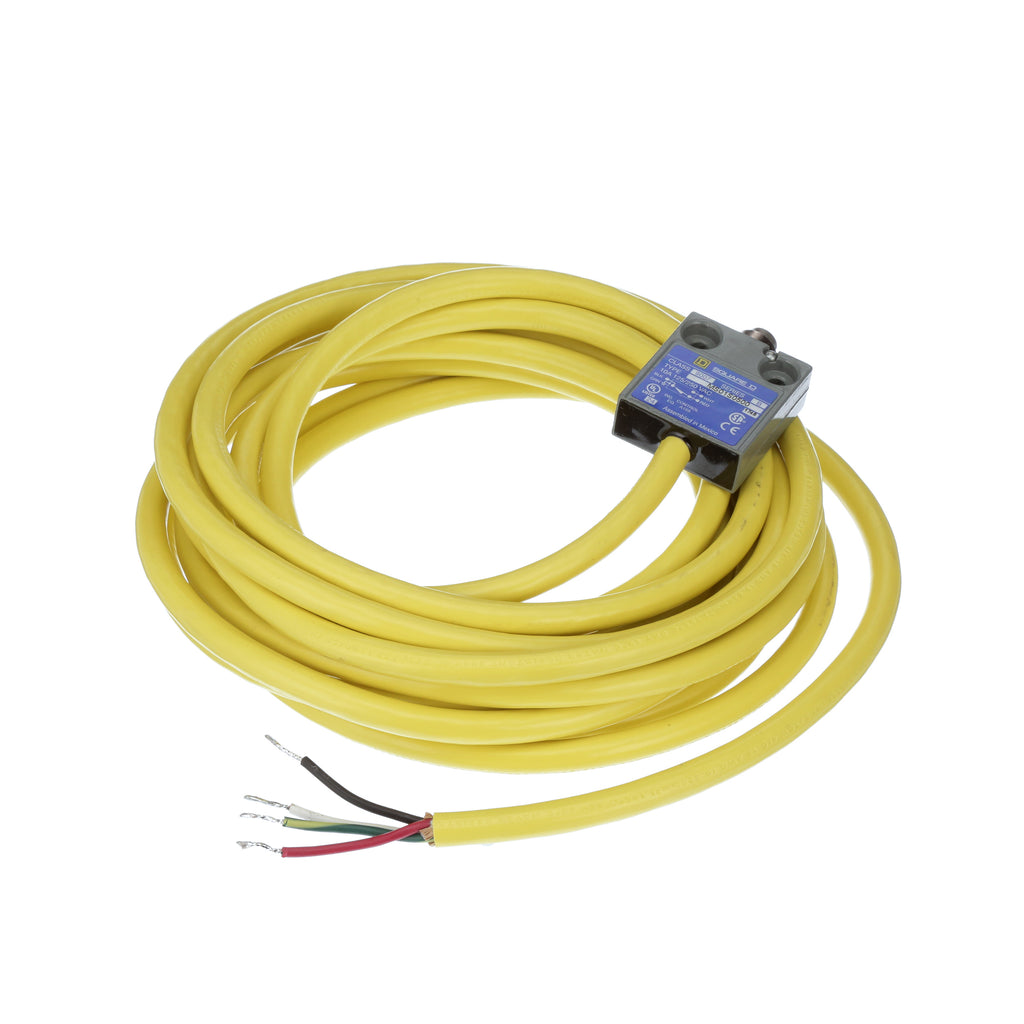

9007MS01S0500 is a Telemecanique miniature limit switch featuring a plunger head actuator and a 1-pole configuration rated for 240 VAC and 10 amps.
This limit switch is designed with a fixed cast zinc body and a metal plunger head, offering robust performance in industrial environments. It mounts by the body and includes a spring return linear operator. The switch is pre-wired with cable termination and meets certifications including CE, CSA, and UL. It provides shock resistance of 35 gn for 9 ms according to IEC 60068-2-27 standards, suitable for heavy-duty applications.
- Key Specifications
- Voltage Rating: 240 VAC
- Current Rating: 10 Amps
- Number of Poles: 1
- Actuator Type: Plunger Head (Round Pin Plunger)
- Mounting Type: By the Body (Chassis Mount)
- Body Material: Cast Zinc
- Operator Type: Spring Return Linear
- Shock Resistance: 35 gn for 9 ms (IEC 60068-2-27)
- Certifications: CE, CSA, UL
- Termination Style: Pre-wired Cable
- Part Number: 9007MS01S0500
- Manufacturer : Telemecanique
- Brand : Telemecanique
- Category : Sensors
- Item Subcategory : Limit Switch
- Family : 9007MS/ML
- Voltage : 120 to 240 /28 DC 120/240 , 28 DC
- UPC : 785901550556
- GTIN : 785901550556
- Country of Origin : Mexico
- Dimensions : 1.56 in
- Weight : 1.64 lb
- Certification : E78403 || LR 25490 Class 32 11 03; UL || CSA || CE
